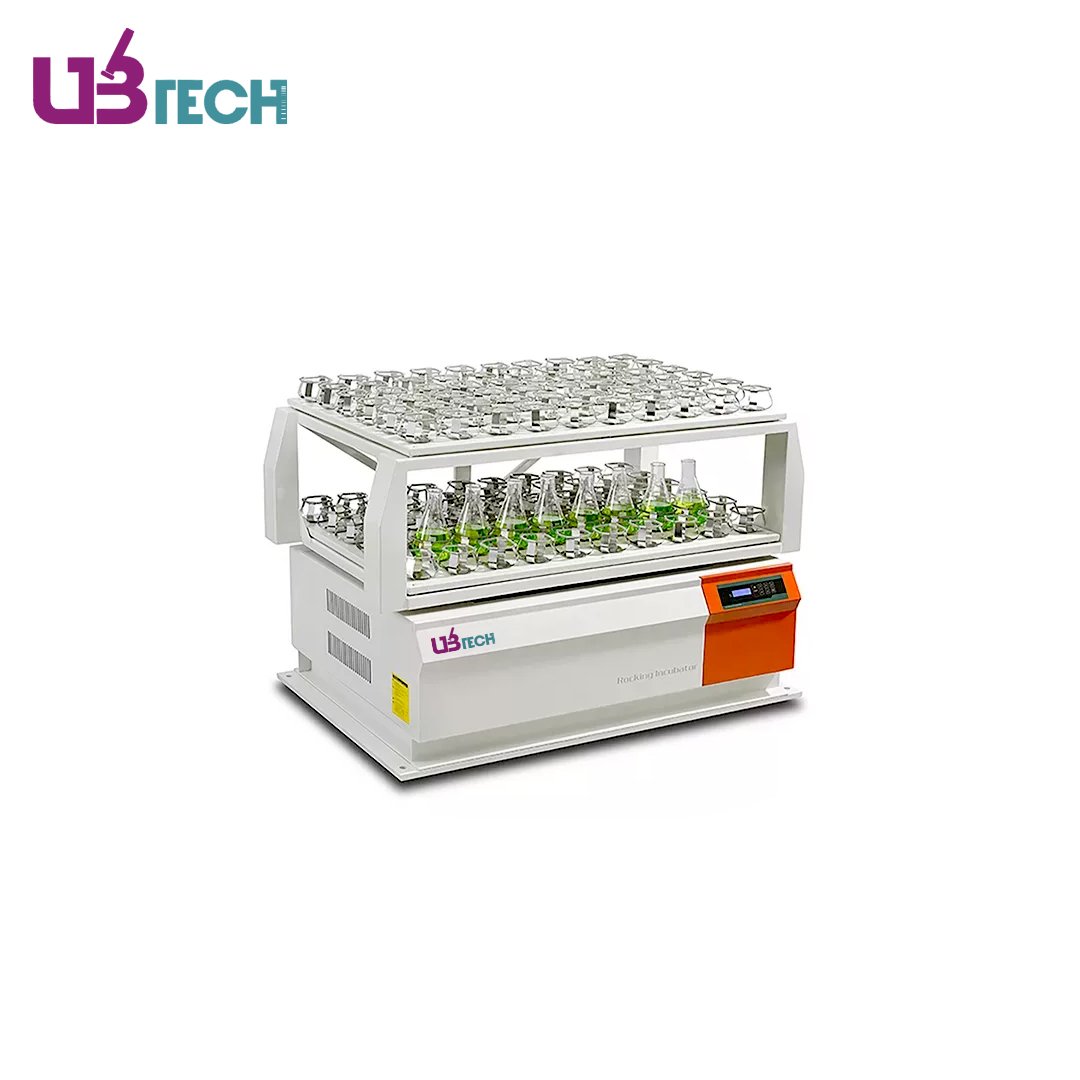

Double-layer Shaker
Double-layer Shaker Specifications:
| Model | USK-D3112 | USK-D3222 |
|---|---|---|
| Control Mode | P. I. D (Microcomputer scans the micro-processing chip) | |
| Display Mode | LCD (Large liquid crystal screen) | |
| Circulation Mode | Natural convection | |
| Oscillation Mode | Gyratory | |
| Drive Mode | Balance drive by single shaft | Balance drive by single shaft |
| Ambient Temperature Requirement (℃) | 15-35 | |
| Curve Programming Settings | Programming settings of repetition, steps and eight-section curves | |
| Safety Functions | Automatic running, automatic stop, timing running, clock display, startup after power again, parameter memory, speed storage | |
| Additional Functions | Monitoring timer, stand-alone over-speed audio/light alarm, stand-alone leakage or over-current protector | |
| Speed Range (r/min) | 30-300 | |
| Speed Accuracy (r/min) | ±1 | |
| Amplitude of Rocking Plate (mm) | 50 | |
| Timing Range (min) | 0-999.59 | |
| Size of Rocking Plate (mm) | 840×620 | 1108×740 |
| Number of Rocking Plates | 2 | 2 |
| Power (kW) | 0.25 | 0.25 |
| Power Supply | AC 200-240V 50-60Hz | |
| Material of Outer Box | High-quality nodular cast iron, channel steel, angle steel, medium plates and cold rolled steel sheets | |
| Sizes(W×D×H)(mm) | 910×680×820 | 1270×810×820 |
| Shipping Size (W×D×H)(mm) | 1080×800×1030 | 1350×920×1090 |
| N.W./G.W. (kg) | 250/375 | 400/535 |
| Model | USK-D3112 | USK-D3222 | |
|---|---|---|---|
| Specifications | The number of rocking plates in single configuration is highest | ||
| Erlenmeyer Flask | 250ml | 108 | 192 |
| 500ml | 70 | 120 | |
| 1000ml | 48 | 80 | |
The slow start line prevents sudden start and splashing, effectively guaranteeing the safety of the reagent.
Motor overheating, temperature out of control automatic power-off protection device.
High precision frequency control system, frequency accuracy reaches ±1rpm.
Advanced large torque motor, maintenance-free, to ensure continuous work.
Electrostatic colour spraying box body is beautiful and rust-proof, very rich in aesthetic design concept.
The cabinet is made of high quality and high strength cold rolled steel plate, medium plate, channel steel, angle steel and cast iron.
