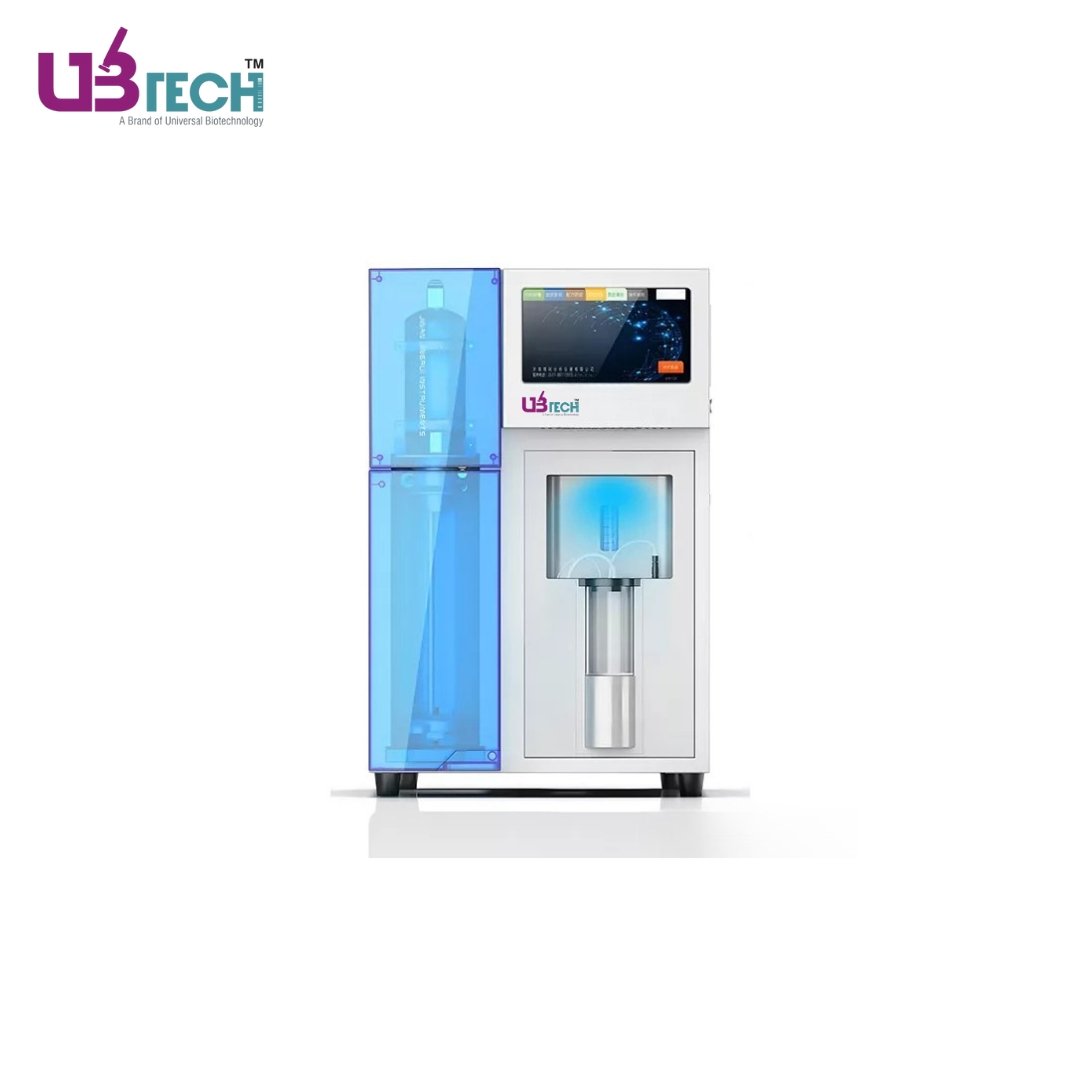

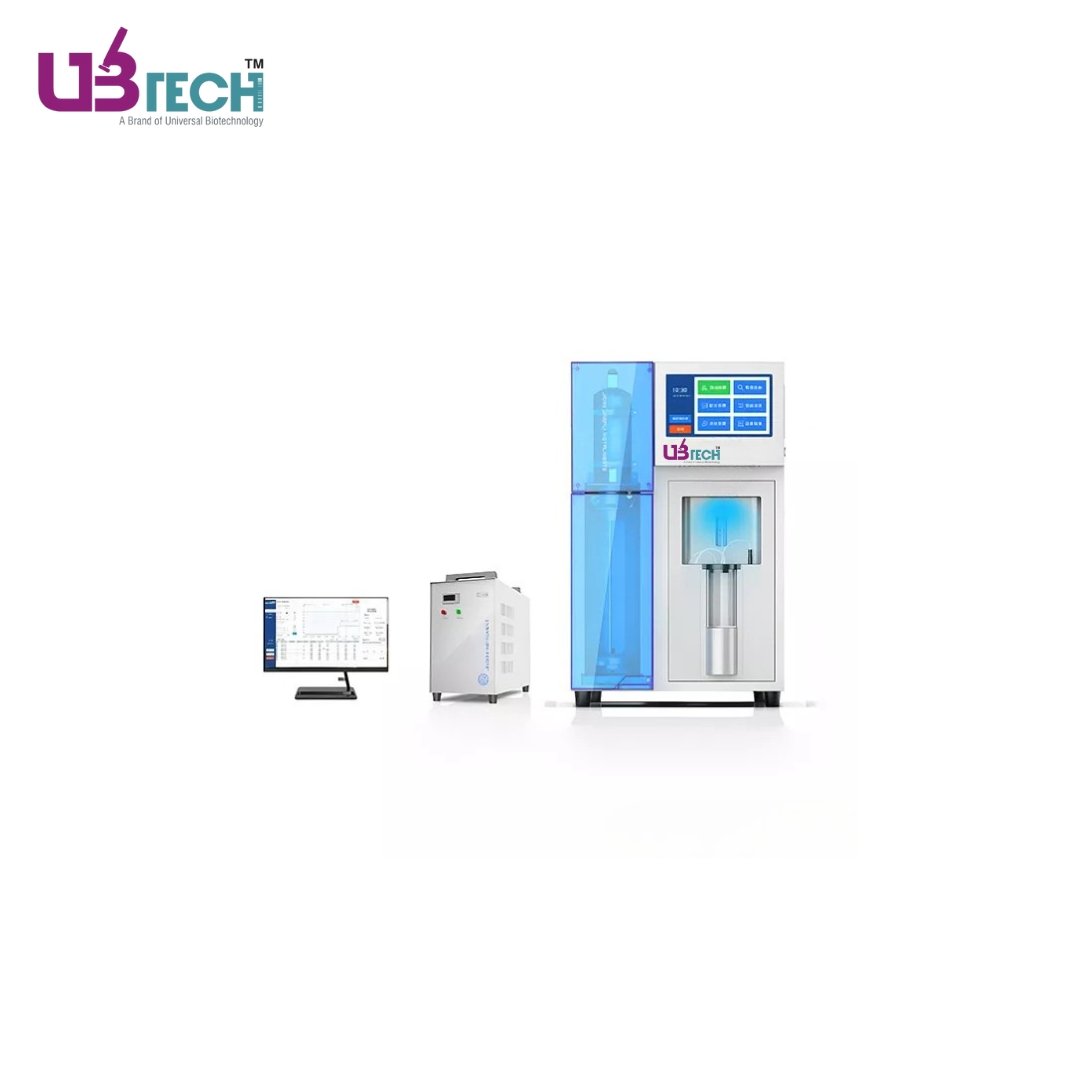

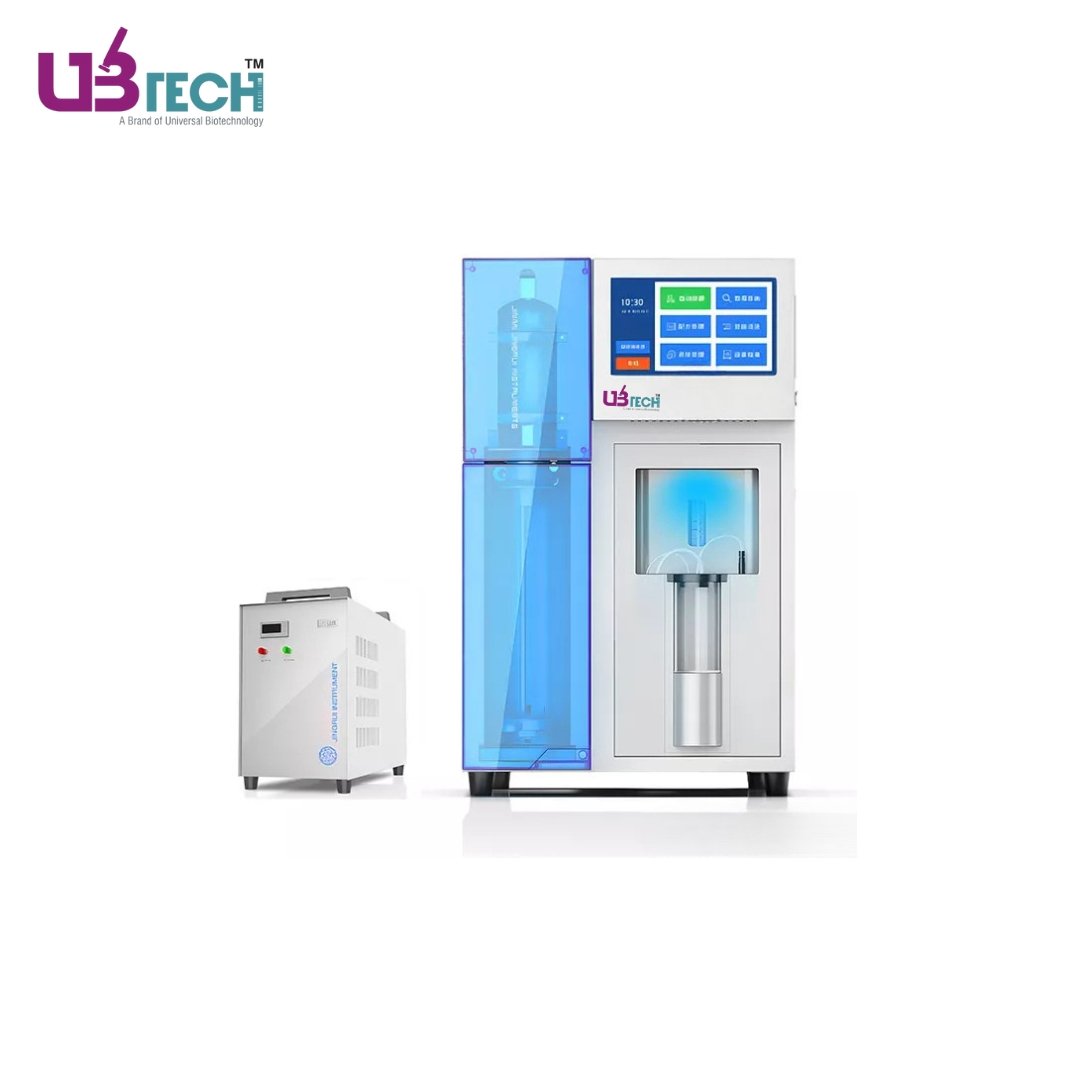

Fully Automatic Kjeldahl Apparatus UKA-9870 Series
Automatic Kjeldahl Apparatus Feature:
1. Operating system: 7.5-inch color touch screen with man-machine dialogue mode easy to operate, easy to learn.
2. Titration sensor: Choose R, G, B three color sensors, with wide range of color adaptation, high precision and quick response
3. Titration curve: The titration curves of R, G and B can timely observe the changes of samples in the titration process, providing help for the analysis process.
4. Titration pump: The titration system – “plunger titration pump” – is composed of German linear motor and injection needle, which has high control precision and good stability.
5. Titration volume verification: Verify the accuracy of titration system to ensure the accuracy of analytical data
6. Protein coefficient query: This instrument contains the protein coefficient query table for users to consult, inquire and participate in the system calculation, which is convenient for users to use.
Fully Automatic Kjeldahl Apparatus Specifications:
| Model | UKA-9870 | UKA-9870I | UKA-9870II |
|---|---|---|---|
| Analytical Range | 0.1-240 mg N | ||
| Accuracy(RSD) | ≤0.5%(30mgN, 0.1mol/L H+) | ||
| Recovery Rate | ≥99.5% | ||
| Titration Accuracy | 0.75μL/step | ||
| Flow Accuracy Verification of Titration Pump | 10mL/per time ±5‰ | ||
| Titrant Concentration Range | 0.01~5 mol/L | ||
| Titration Concentration Input Mode | Manual input | Manual input/Instrument self-calibration | |
| Titration While Distillation Miode | Standard | Standard/Titration while distillation | |
| Titration Method | linear motor/plunger pump | ||
| Total Volume of Titration Cup | 220mL | ||
| Titration Total Volume/Per Time | ≤80mL | ||
| Sample Analysis Time | 4-6min/ (Cooling water temperature 18℃) | ||
| Blank Deduction of Sample | Automatic deduction | ||
| User-made Recipe | 99 groups | ||
| Re-add Alkali During Distillation Process | 0-99mL/ per time | ||
| Fertilizer Analysis Model (nitro) | Reaction time 0-2 hours | ||
| Titration Cup Mounting (Removable Cleaning) | Equipped | ||
| Titration Curve Observation | Equipped | ||
| Titration Cup Overflow Alarm System | Equipped | ||
| Data Storage | 140000 sets of data | ||
| Printer | 5.7cm thermal automatic paper cutting printer | ||
| Communication Interface | No Standard; Optional: 232/electronic balance/cooling water/reagent level | Standard with 232 and cooling water; Optional: electronic balance/reagent level | Standard with 232/electronic balance/cooling water/reagent level |
| Cooling Water Consumption | 1.2L-3L/min | ||
| Computer Operating Software | Not applicable | WINDOS-10 | |
| The Digestive Tube Discharges Waste Automatically | Manual processing | Manual processing / Automatic discharge | |
| Steam Pressure Monitoring and Alarm | Not applicable | 40Kpa | |
| Distillation Sample Temperature Monitoring and Alarm | Not applicable | 50℃ | |
| Cooling Water Flow Monitoring and Alarm | Not applicable | 0.8-10L/min | |
| Refrigerating System | Not applicable | Applicable | |
| Steam Flow Control | Not applicable | 70%-100% | |
| Automatic Cleaning of Alkali Pipeline | Not applicable | Automatic cleaning | |
| Safe Alkali Adding Mode | Equipped(0-999 sec) | ||
| Steam Boiler Over Temperature Alarm System | 120℃ | ||
| Steam Boiler with Dry Burning-resistant Protection | Equipped | ||
| Safety Gate Switch | Equipped | ||
| Digestive Tube Vacancy Switch | Equipped | ||
| Power Supply | AC220V, 50Hz | ||
| Heating Power | 2000W | ||
| Size(W×D×H)(mm) | 500x460x710 | ||
| Shipping Size (W×D×H)(mm) | 1030x630x990 | ||
| N.W./G.W. (kg) | 30/60 | 36/65 | |
