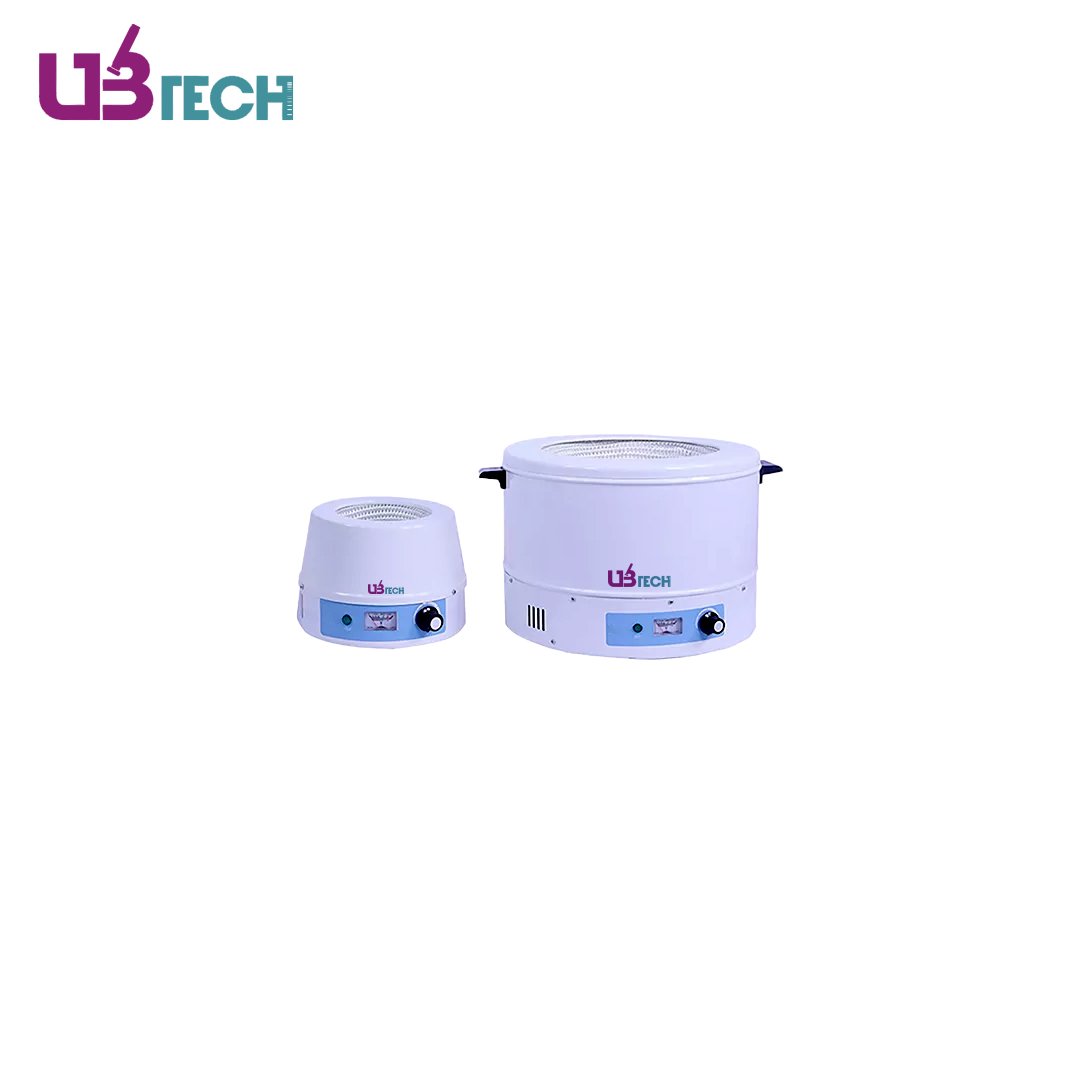

Electronic & Digital Heating Mantle
Electronic & Digital Heating Mantle Features:
Heating mantle is the internally heater in hemisphere shape. It adopts high - temperature resistant alkali-free glass fibre to be the insulating material and seal up the nichrome resistive conductor within the insulating layer and braid it.
The case adopts the high quality cold- rolled plate and the electrostatic plastic spraying treatment on the surface.
Big heating area, speed hyperthermic, uniform temperature, good heat preservation results and no open fire.
Corrosion- resisting, ageing- resistant, durable, safety and reliable.
The digital display type has advantages of temperature setting, automatic temperature control and temperature digital display.
Way of heating:
Temperature-control (Electronic thermo regulation)
LED controller
Electronic & Digital Heating Mantle Specifications:
Model UMHE-I/UMHD-I Capacity(ml) 100 250 500 1000 2000 3000 5000 10000 20000 50000 Working Time Continuous Max Working
Temperature(℃)380℃ (Temperature of beating element beater) Power (W) 180 180 250 300 500 500 1000 1500 2500 6000 Power Supply AC220/110V; 50/60Hz The Size of Working
Room (DxH) (mm)φ70x40 φ95x50 φ115x50 φ150x70 φ180x80 φ200x100 φ245x150 φ310x175 φ380x190 φ480x270 Sizes(D×H)(mm) φ175x150 φ175x150 φ175x160 φ240x175 φ280x215 φ289x 240 φ354x 270 φ414x310 φ489x285 φ690x475 Shipping Size
(W×D×H)(mm)270x270x240 270x270x240 270x270x240 320x320x260 360x360x290 360x360x330 420x420x260 480x480x330 550x550x450 780x780x560 N.W./G.W. (kg) 1.7/2.6 1.8/2.6 1.8/2.6 2.6/3.8 3.8/5.1 4.2/5.8 7/10.1 10.2/11.5 13.3/17 54/70
