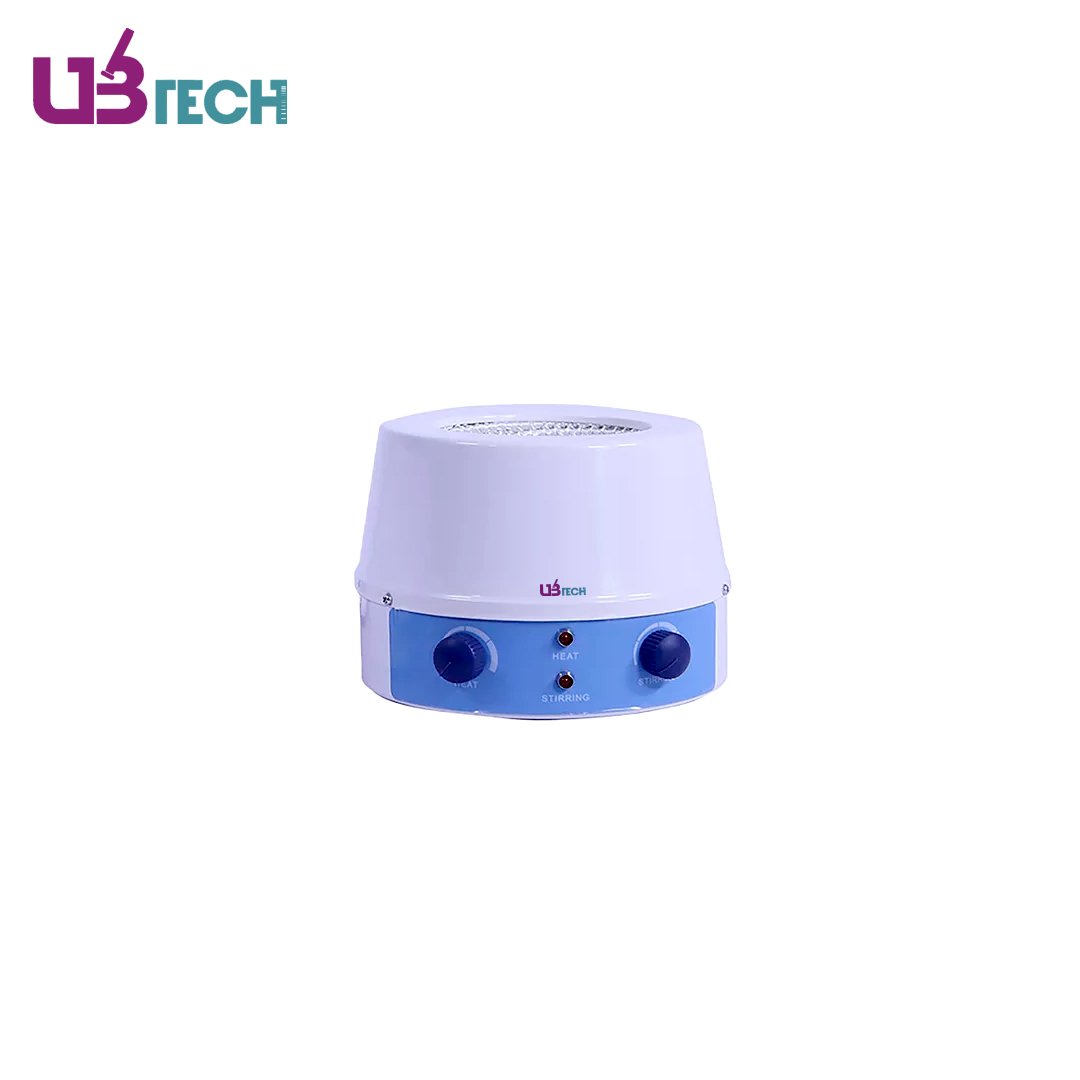

Electronic & Digital Magnetic Stirring Heating Mantle
Magnetic Stirring Heating Mantle Features:
High temperature resistance fiberglass is used as insulation materials, resistance wire of nickel chrome material is sealed in the insulation layer and weaved into semisphere internal heater.
Adopts stepless speed that is easy to operate and it can make stable precise stirring to liquid solution within a wider speed scope, especially in the experiments of samples with small volume.
Way of heating:
Temperature- control (Electronic thermo regulation)
LED controller
Magnetic Stirring Heating Mantle Specifications:
Model UMHE-II/UMHD-II Capacity (ml) 100 250 500 1000 2000 Working Time Continuous Max Working Temperature (℃) 380°C (Surface temperature of the heating components) The Socope of
Temperature Adjust (r/min)start ~ 1200 Power(W) 180 180 250 300 500 Power Supply AC220/110V; 50/60Hz The Size of Working
Room (DxH) (mm)ϕ70x40 ϕ95x50 ϕ115x70 ϕ150x70 ϕ180x70 Sizes (D×H)(mm) 220x195
x165
220x195
x165
220x195
x165
280x260
x205
320x300
x215
Shipping Size
(W×D×H)(mm)300x290
x260
300x290
x260
300x290
x260
355x350
x310
390x385
x340
N.W./G.W. (kg) 3/4 3/4 4/6 4/6 5.2/7.2
