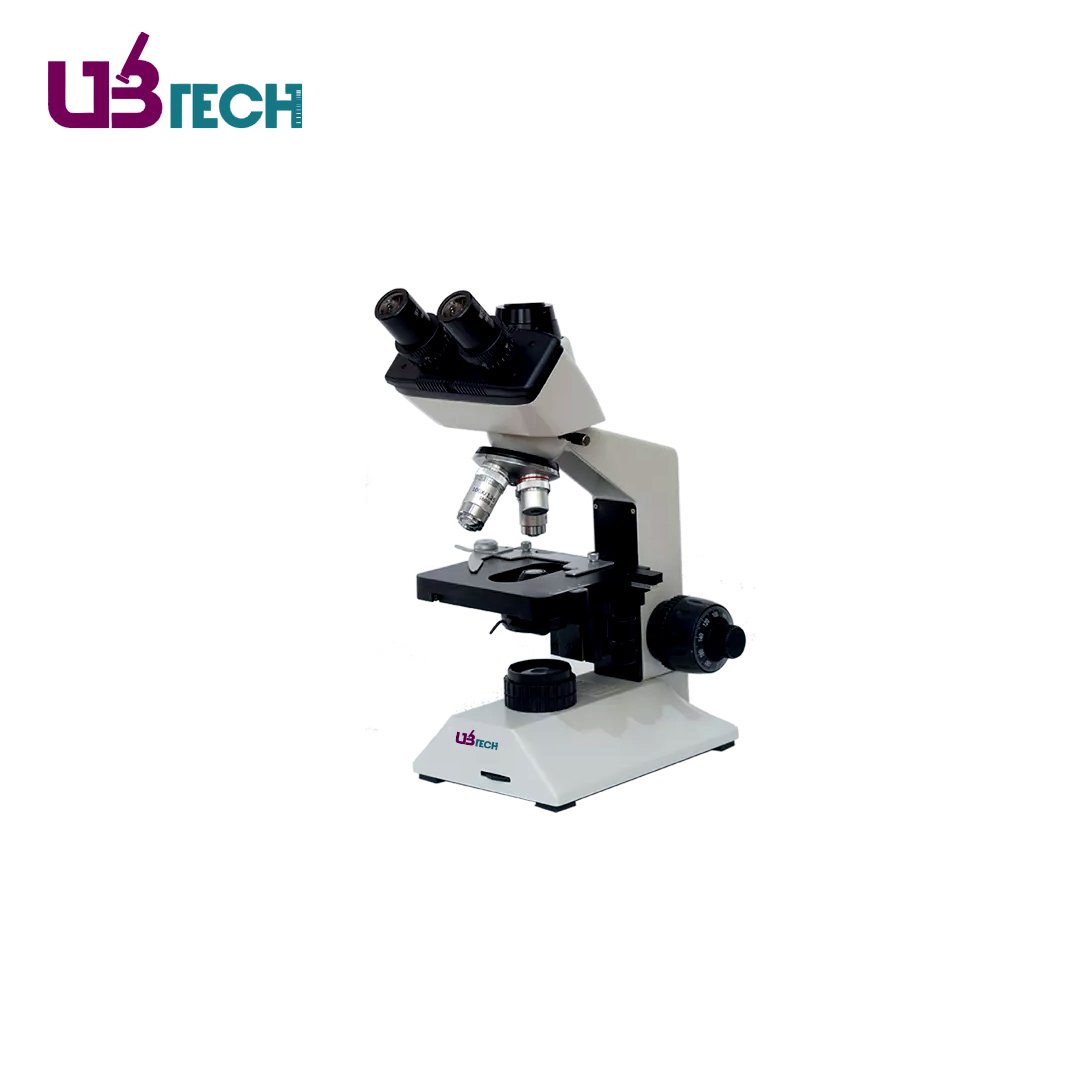

Biological Microscope (Trinocular Head)
Biological Microscope Specifications:
| Model | UMSC-BH102T | UMSC-BS102T |
| Viewing Head | Siedentopf free trinocular head inclined at 45° interpupillary (55-75mm) | Sliding free trinocular head inclined at 45° interpupillary (55-75mm) |
| Eyepiece | Wide Field Eyepiece WF10x18mm | |
| Nosepiece | Quadruple Nosepiece | |
| Objective | Achromatic Objective 4X,10X,40X,100X | |
| Stage | Double Layers Mechanical Stage 115x125mm/70x30mm | |
| Condense | Abbe NA1.2５ with Iris Diaphragm & Filter | |
| Focusing System | Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 20mm | |
| Illumination | LED Illumination, Brightness Adjustable | |
| Halogen Lamp 100V-240V/ 6V20W | ||
| Plan-concave Mirror | ||
| Package | Styrofoam | |
| Carton | ||
| Wooden Case | ||
| Filter | White Filter | |
| / | Note: Standard Outfit, Optional | |
Shipping Size (W×D×H)(mm) | 350x240x480 | |
| G.W. (kg) | 6 | |
LCD display system:
This microscope is equipped with a 7-inch high-definition imaging equipment that can be used in combination with the microscope. It provides excellent observation effects with various magnifications and offers display modes of 16:9 and 4:3. The screen resolution is 1024x600, ensuring clear and detailed images.
Digital display storage system:
The microscope features a 10-inch display screen and is equipped with an 8.0M HDMI camera. The HDMI output resolution is 720P@60fps, and the photo resolution is 3840x 2160. The system includes a remote control for convenient operation and control of the display and storage functions.
Camera accessories:
A camera can be added to the trinocular head.
USB 2.0 camera/CCD/win10 pad/digital display.
