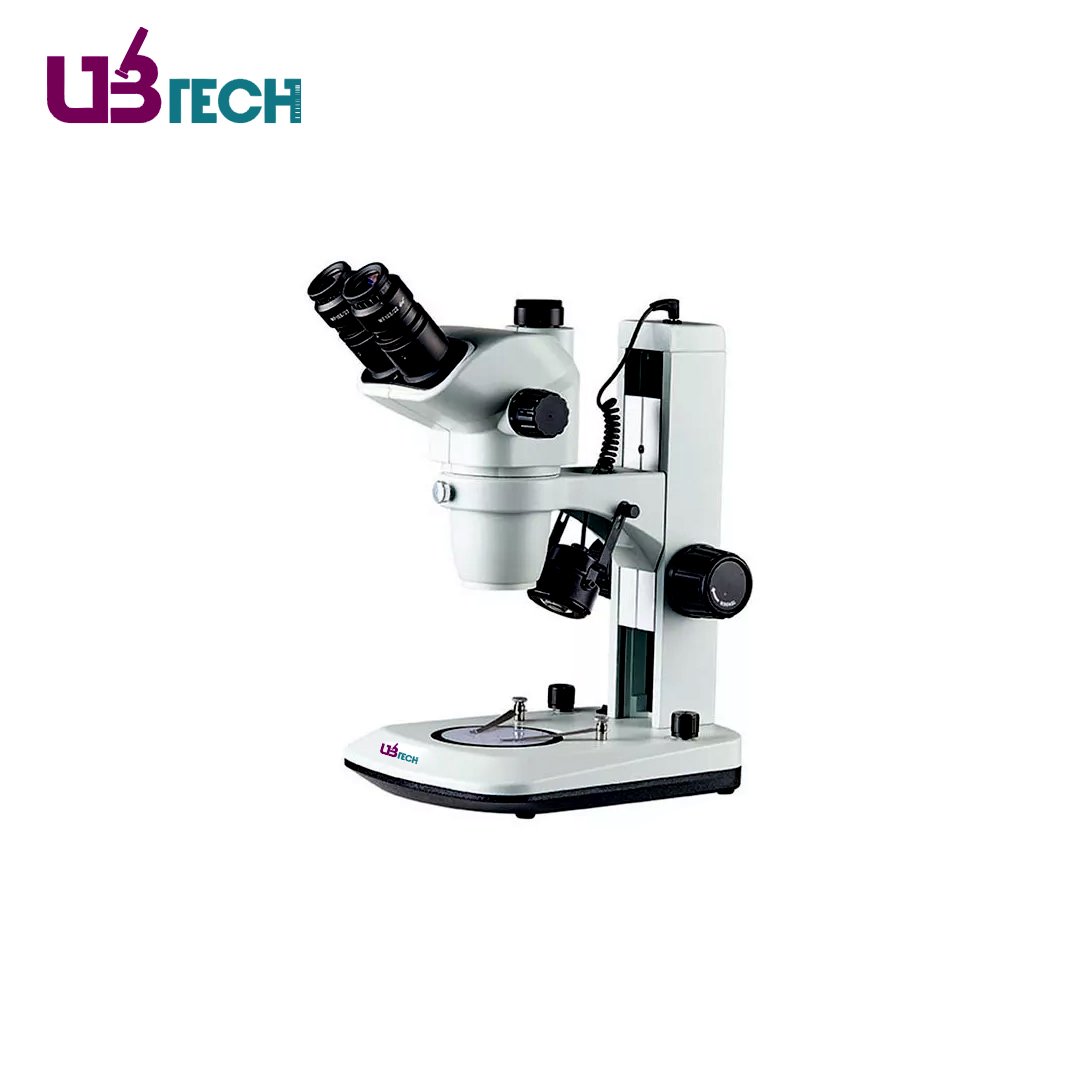

Stereoscopic Microscope UMSC-7045 Series
Stereoscopic Microscope Specifications:
| Model | UMSC-S7045B | UMSC-S7045T |
| Magnification | Zoom objective 6.7X-45X | |
| Eyepiece | WF10X/22mm high-eyepoint, wide-field; Convenient for observers wearing glasses | |
| Optional Eyepiece 15X/16mm, 20X/12mm, 25X/9mm, 30X/8mm | ||
| Main Body | Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment: ±5 diopters | Trinocular head, 45° inclined, 360° rotatable, can be locked in any position desired. Diopter adjustment: ±5 diopters |
| Interpupillary distance adjustment: 54-75mm | ||
| Objective | 0.67X-4.5X stereo zoom; Zoom Ratio: 6.7:1 | |
| Aux Lens: 0.5X, 2X | ||
| Focusing Mount | Focusing track mount with vertical working distance 104mm | |
| Stand | Track stand | |
Vertical Height: 300mm; Mounting Size: φ76mm; Focusing Distance: 106mm; | ||
With φ95mm B/W Plastic & Perspex Plate and Paired Clips; Base Size: 205x275x40mm | ||
| Illumination | Top and bottom LED illumination with an independent control; Input power：110v~240v | |
| C-Mount | MSC 1X C-Mount; xMSC 0.5X C-Mount; | |
| NOTE: UMSC-S7045B 3.35X-270X with optional eyepieces and objectives; | ||
| Shipping Size(W×D×H)(mm) | 510x360x300 | |
| G.W. (kg) | 9 | |
45° tilted binocular observation head
High-quality optical system with clear imaging
Wide field of view, large zoom ratio, high numerical aperture and long working distance.
Ergonomically designed column or rack-and-pinion mount.
