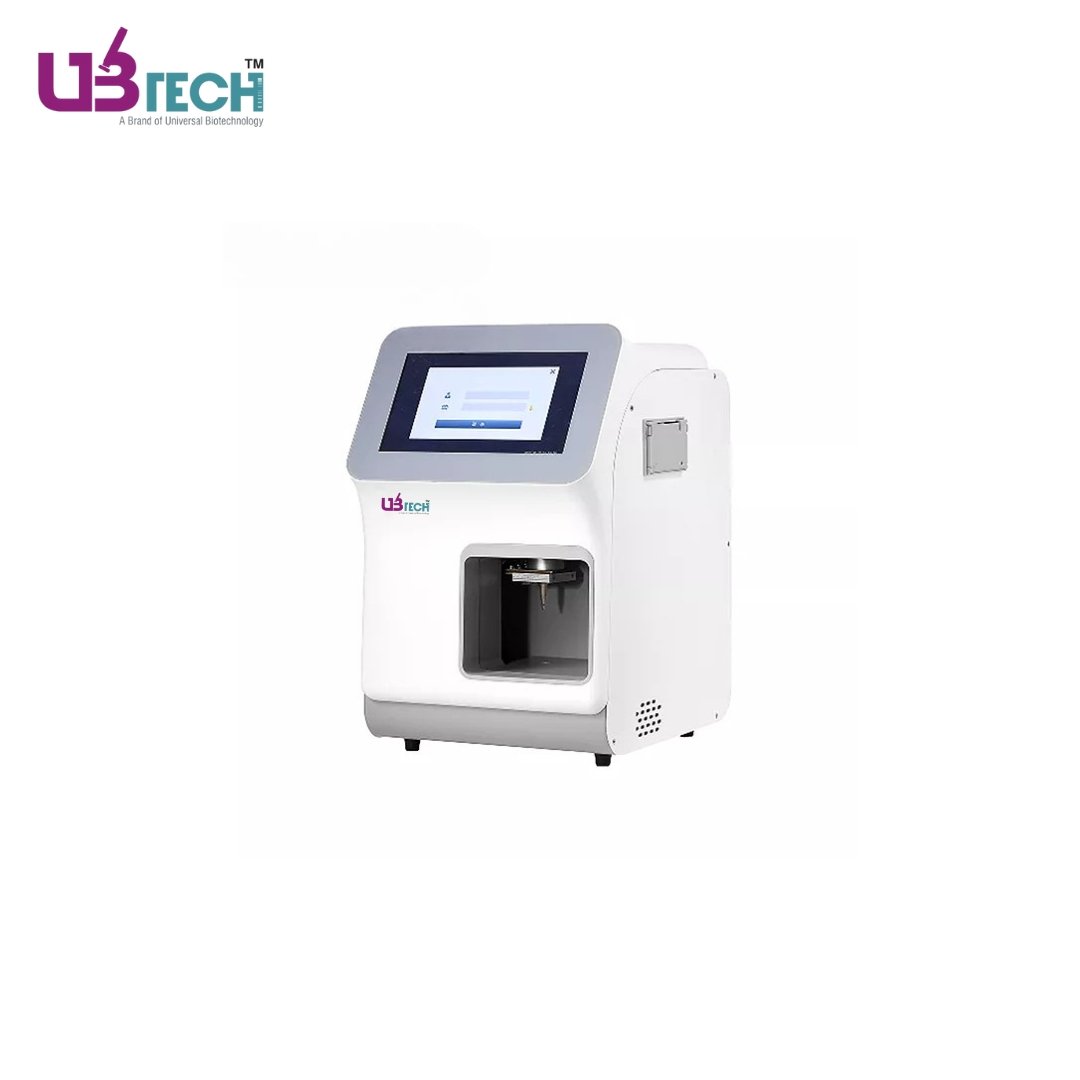

Full Automatic Freezing Point Osmometer
Freezing Point Osmometer Features:
The osmometer is equipped with electronic signature and user classification management functionalities, it complies with CFR PART21, allowing data queries based on time and storing up to 3 years of testing data.
Capable of performing single-point or multi-point (31-point) linear calibration, ensuring the freezing point osmometer maintains detection accuracy across various range intervals for stability.
Utilizing a screw linear guide motor design, the entire testing process can be seamlessly completed with just a touch on the screen.
The temperature probe features a double refrigeration system, boasting a brief pre-cooling time and rapid detection speed to facilitate continuous testing.
Simultaneously displays osmotic pressure molar concentration value, freezing point value, and molar concentration ratio.
The cooling system adopts an athermal transfer fluid design, reducing the need for frequent maintenance.
Applications of Osmometer:
Osmolometers are a key piece of equipment in a range of laboratory environments:
Clinical chemistry: For testing serum, urine, plasma and other body fluids
Medical laboratories: To detect electrolytic disorders and metabolic and toxic conditions
Pharmaceutical industry: Monitoring of biological processes in the pharmaceutical industry
Organic and inorganic chemistry: Determining the average molecular weight of polymers or other unknown compounds or mixtures
Other biological applications: Analysing plant sap, hydroponic or cell culture media
Freezing Point Osmometer Specifications:
| Model | UOSM-FP2 | |
| Measurement Range | 0～2000 mOsmol | |
| Sample Amount | 100µl | |
| Testing Duration | ≤3min | |
| Pre-cooling Time | ≤3min | |
| Measurement Error | ≤1% | |
| Repeatability | ≤1% | |
| Linearity | ≤1% | |
| Resolution Ratio | 0.1 | |
| Environment | 0～30℃ | |
| Temperature | Recommended for 15～25℃ | |
| Humidity Range | 60% | |
| Power Supply | AC220V,50/60Hz | |
| Size(W×D×H)(mm) | 275x225x345 | |
| Shipping Size(W×D×H)(mm) | 565x440x600 | |
| N.W./G.W. (kg) | 15/26 | |
