Tap Density Tester
Tap Density Tester Specification:

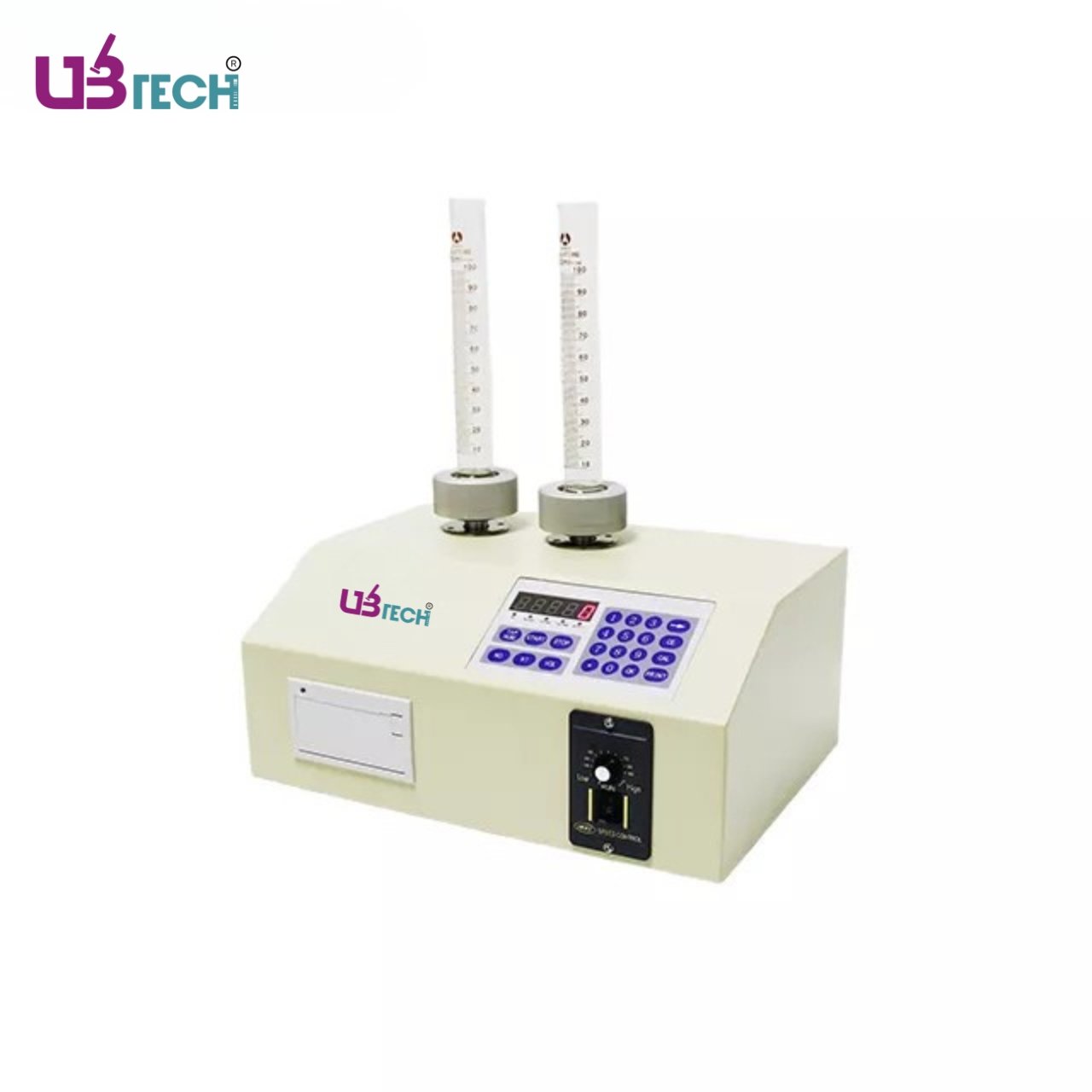

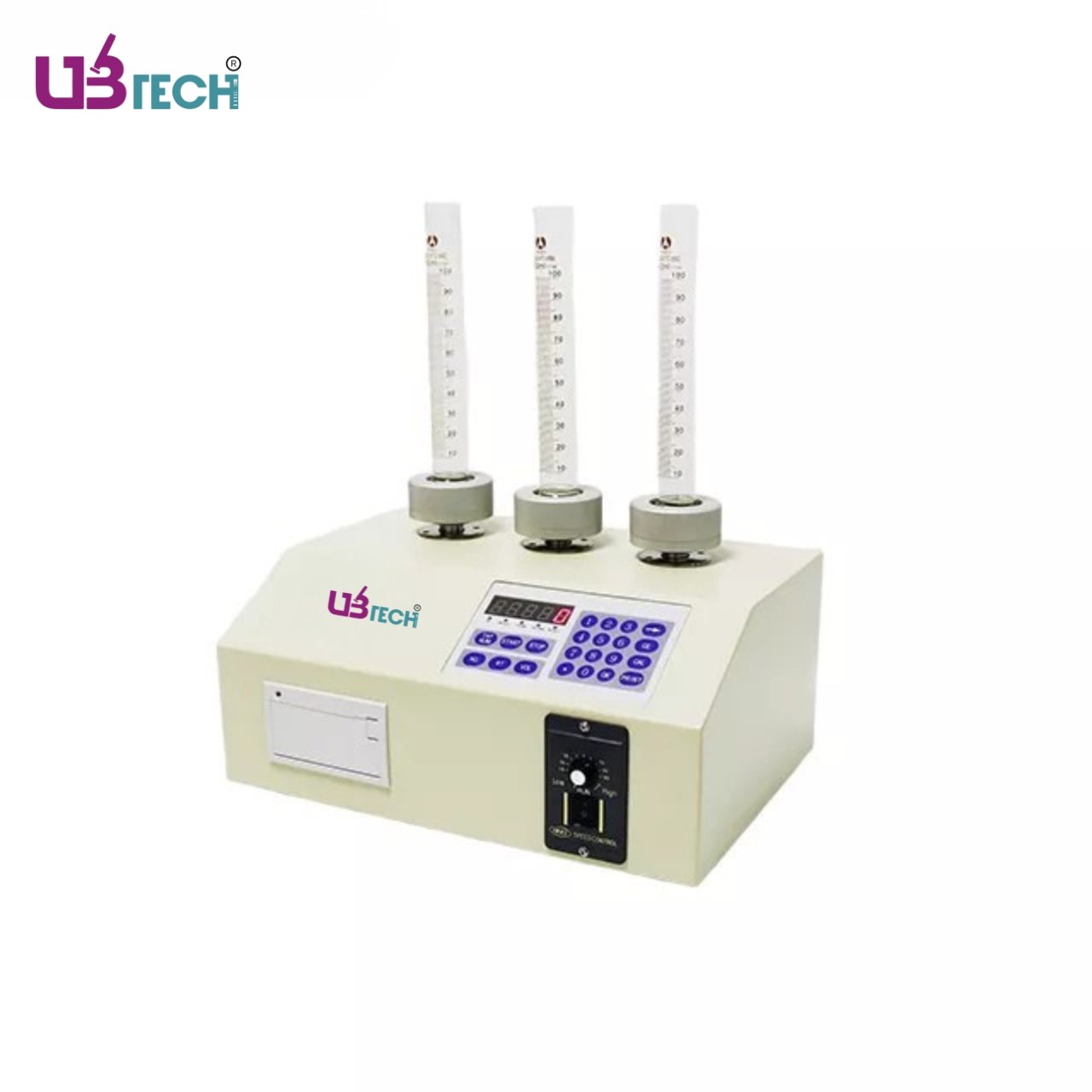

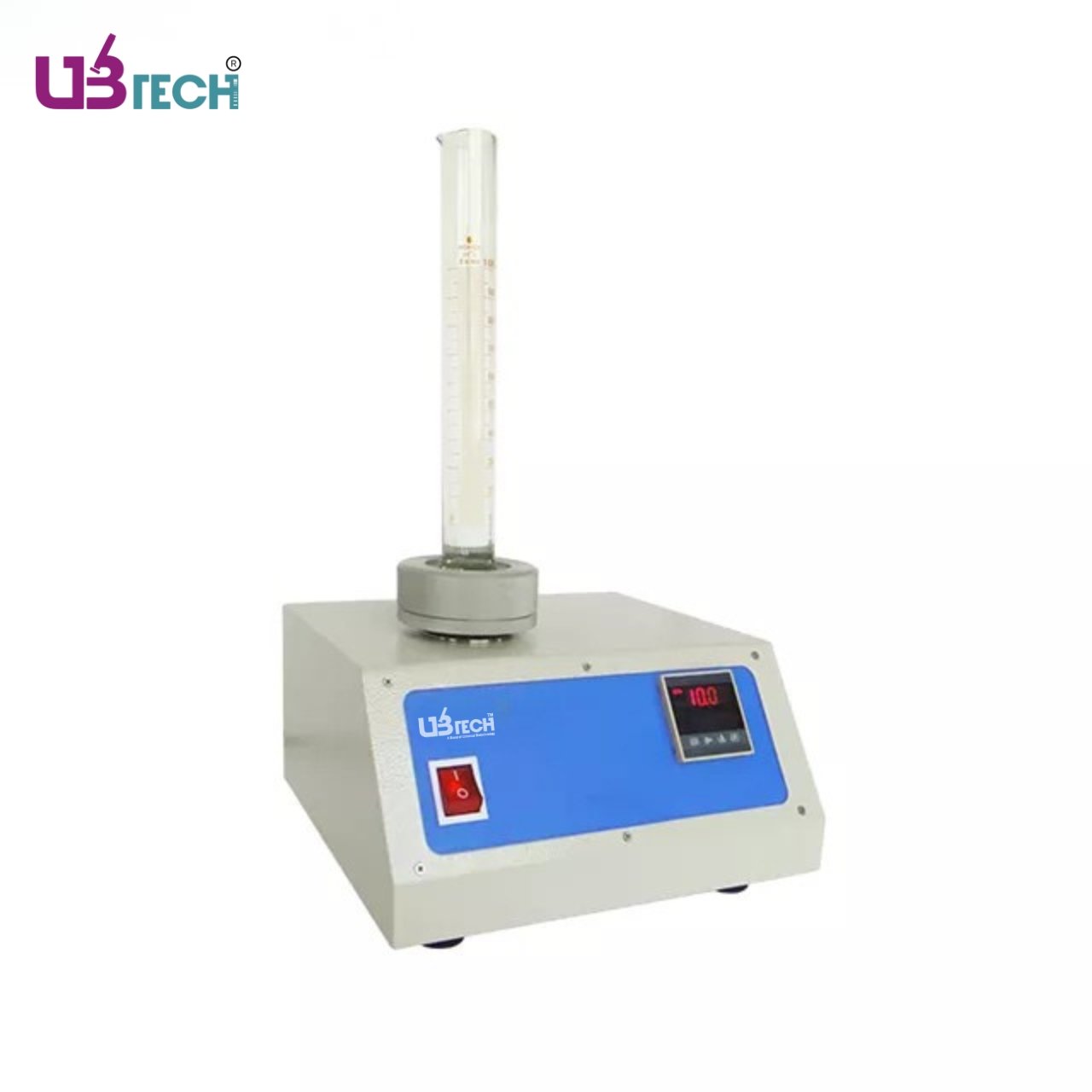

| Model | UDME-100AT | UDME-100BT | UDME-100CT | UDME-100DT |
| Channel | 1 | 2 | 3 | 1 |
| Weight of Testing Object | ≤500.00g | |||
| Volume of Testing Object | ≤250.00 mL (standard accessory including 25 mL, 50 mL,100 mL,250 mL measuring cylinder) | ≤250.00 mL | ||
| Single Vibration Times | ≤0-99999 times(the result will come out as bulk density when input zero times) | 0-14750 times | ||
| Allowable Motor Force | 0.86 N.m. | |||
| Vibration Frequency | 0-300 rounds/minute,adjustable (USA pharmacopeia standard is 300 round per mintute) | 250 rounds/minute | ||
| Vibration Amplitude | 1mm-15mm, adjustable (International standard is 3 mm) | 3 mm | ||
| Repeatability Error | ≤1% | |||
| Accuracy Error | ≤1% | |||
| Function | For non-metallic powder, this instrument extended several functions such as "vibration amplitude" from 3 m standard extended to 1-15 mm;"vibration frequency" from 100-300 times per minute extended to 0-300 times per minute. "vibration times" from 3000 times standard extended to 0-99999 times. All of them can be setup freely. | Can do small angle rotation to get even materials, can set vibration times | ||
| Standard Accessory | With adjustable-speed motor, vibration assembly, micro-computer and micro printer.,etc.It has the feature of compact structure, stable, and easy operation.,etc. | With vibration assembly | ||
| External Size (W×D×H)(mm) | 333×270×185 | 333×270×185 | 393×270×185 | 260×220×185 |
| Shipping Size (W×D×H)(mm) | 420×390×390 | 420×390×390 | 520×390×390 | 420×320×360 |
| N.W./G.W. (kg) | 11.9 /15 | 13.85 /19 | 16.8 /21.9 | 7.8 /11 |
