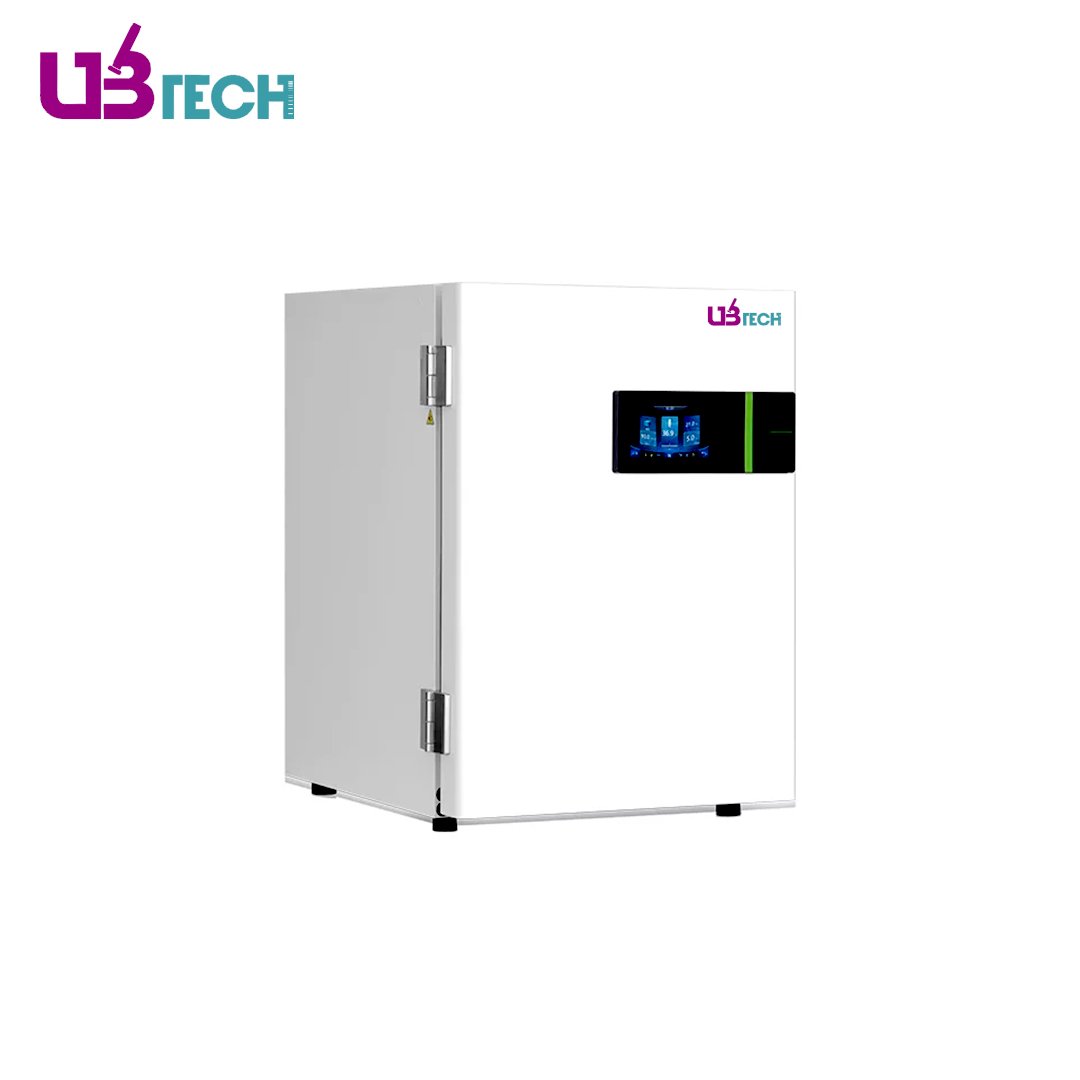

CO2 Incubator 170L
CO2 Incubator Specifications:
| Model | UICB-170 | |
|---|---|---|
| Temperature | Type | Direct Heat & Air Jacketed |
| Range | RT+3°C to 55°C | |
| Uniformity | ≤±0.3°C | |
| Accuracy | <±0.1°C | |
| Recovery | ≤10 mins | |
| Ambient | 18-34°C | |
| CO2 | Controller | PID microcomputer |
| Range | 0~20% | |
| Accuracy | ±0.1% | |
| Sensor | IR | |
| Recovery | ≤5 mins | |
| Sterilization | 180°C dry heat | |
| Humidity | Mode | Integrated pan |
| rH% | 91% @ low rH mode, 94% @ High rH mode | |
| Recovery | 15 mins | |
| O2 (Optional Tri-gas Type) | Controller | PID microcomputer |
| Range | 1~20.7% | |
| Accuracy | ±1% | |
| Sensor | Zirconia | |
| Accuracy | O2% @ 1.0%: 24mins; O2% @ 5.0%: 10mins | |
| Alarm and Reminder | Alarms | Ambient temp., rH%, CO2%, Water level, O2% (optional) |
| Reminder | HEPA filter expiration, shortage of gas | |
| Cleanliness | Sterilization | 180°C dryheat |
| 0.2um filter | ||
| HEPA filter | ||
| Specifications | Capacity | 170L |
| Internal Construction | Polished stainless steel | |
| Shelf Qty (Standard) | 3 | |
| Max Shelf Qty | Up to 7 optional | |
| Shelf Size (WxD)(mm) | 450x485(Big); 450x440(small) | |
| Max Loading of Each Shelf | 12kg | |
| Power Supply | AC220V, 50/60Hz | |
| Max. Power | 1000W | |
| Stable Power | 42W | |
| Internal Size (WxDxH)(mm) | 490×560×621 | |
| External Size (W×D×H)(mm) | 670×825×920 | |
| Shipping Size (W×D×H)(mm) | 740×1140×1095 | |
| N.W./G.W. (kg) | 94/116 | |
CO2 Incubator Feature:
For advanced uniformity and recovery, our airflow patterns are specifcally designed for outstanding distribution of critical environmental conditions (temperature, gas exchange and humidity). Forced-air fan gently and evenly distributes clean, humidifed air throughout the chamber ensuring all cells experience the same conditions without the threat of desiccation. Temperature and gas sensors are placed in the chamber to ensure the detected temperature and gas are in the same conditions.
Designed for sensitive cells and It is designed to protect valuable samples while optimizing cell growth:
1. 180°C Dry heat sterilization
2. Optional tri-gas
3. Top IR sensor
4. LCD touch screen
Application of CO2 Incubator:
- Cell culture and cell growth
- Tissue engineering and regenerative medicine research
- Cellular virology and bacteriology experiments
- Drug screening and pharmacological research
- Medical clinical diagnostics and biomedical research
