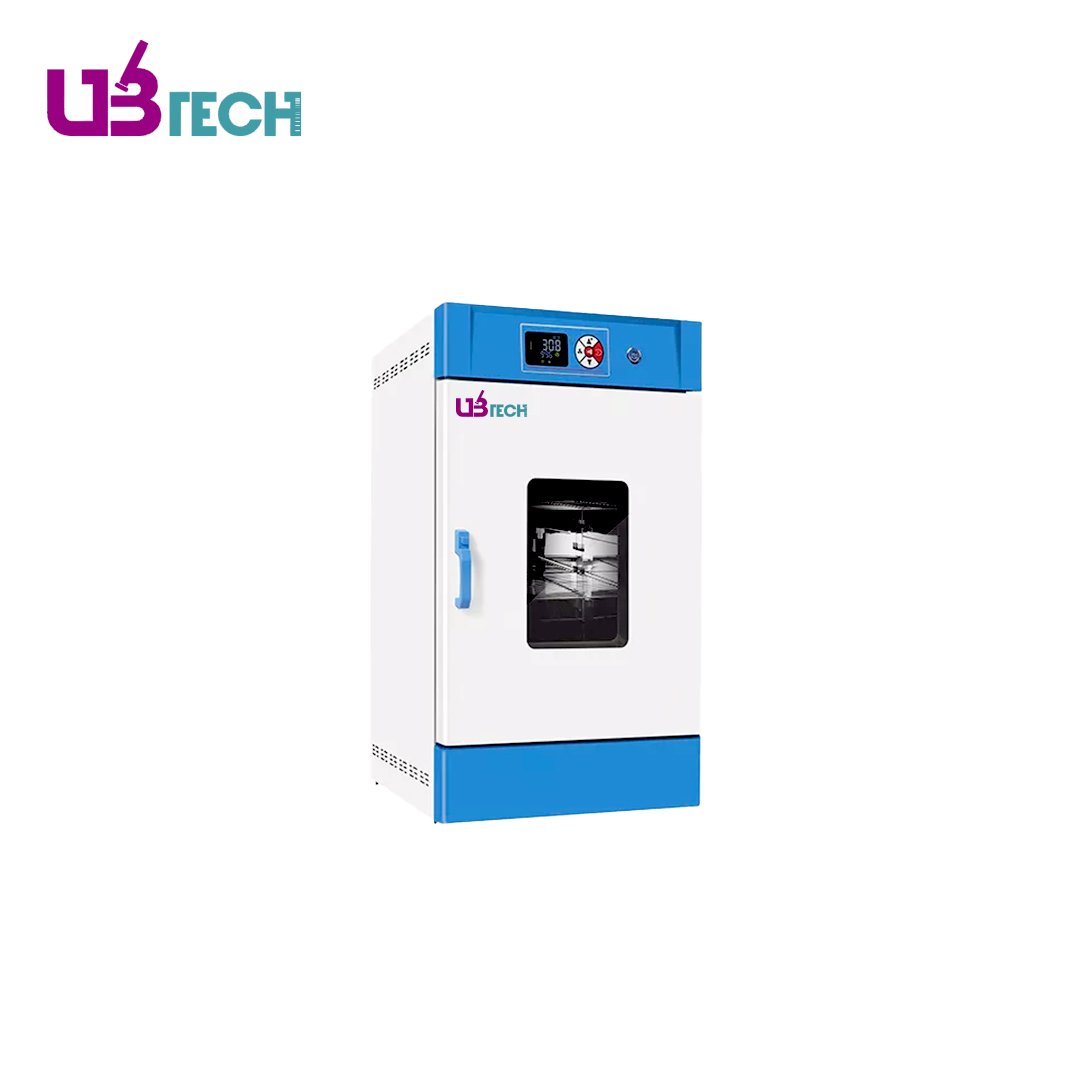

Constant Temperature Incubator, BE Series
Constant Temperature Incubator Specifications:
| Model | UICB-45BE | UICB-75BE | UICB-125BE | UICB-210BE | |
|---|---|---|---|---|---|
| Capacity | 42L | 72L | 125L | 210L | |
| Circulation Mode | Forced convection | ||||
| Size(WxDxH) | Internal (mm) | 350x350x350 | 400x400x450 | 450x500x550 | 500x600x700 |
| External (mm) | 500x490x705 | 580x530x800 | 630x635x900 | 730x675x1200 | |
| Temperature | Range (℃) | RT+5-65 | |||
| Resolution (℃) | 0.1 | ||||
| Fluctuation (℃) | ±2 | ||||
| Uniformity (℃) | ±2 | ||||
| Controller | PID Controller | ||||
| Display | LCD screen | ||||
| Timer(min) | 0-9999 | ||||
| Material | Internal | 304 stainless steel. | |||
| External | Cold rolled steel electrostatic spraying exterior | ||||
| Shipping Size (WxDxH)(mm) | 550x600x790 | 600x640x880 | 720x700x1125 | 745x780x1250 | |
| Shelves (Standard / Max) | 2/4 | 2/4 | 2/6 | 2/8 | |
| Exhaust Hole | Standard Φ30mm top with function of test hole | ||||
| Power Supply | 220V 50Hz | ||||
| Electricity Consumption (W) | 200 | 300 | 400 | 500 | |
| G.W. (kg) | 38 | 46 | 65 | 91 | |
Constant Temperature Incubator Features:
- The shelf height is adjustable, and the four corners are semicircular, which is easy to clean.
- Double-layer tempered glass observation window, clear observation, easy to use.
- Microcomputer intelligent digital display temperature control instrument temperature control is accurate, to ensure that the temperature does not overshoot.
- It has functions such as timing and over-temperature alarm.
- Good insulation design, can operate at high temperature for a long time
- Adopt high temperature resistant silicone sealing strip, equipped with lock-type elastic adjustment door lock
