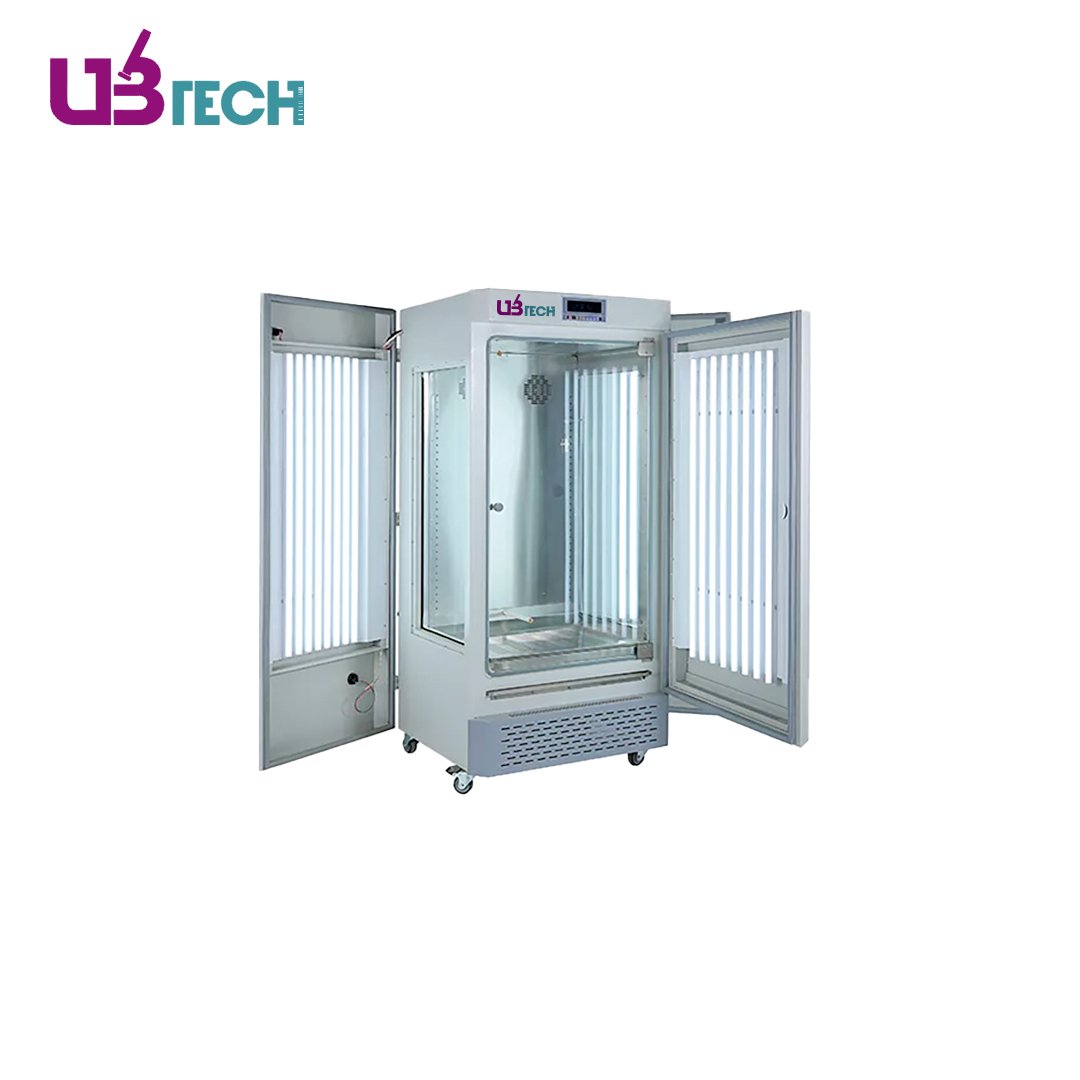

Plant Growth Incubator
Plant Growth Incubator Specifications:
| Model | UICB-250L | UICB-350L | UICB-450L | |
|---|---|---|---|---|
| Capacity(L) | 250 | 350 | 450 | |
| Circulation Mode | Forced convection | |||
| Size(WxDxH) | Internal (mm) | 555x450x1100 | 550x550x1200 | 700x550x1200 |
| External (mm) | 680x680x1760 | 780x780x1900 | 1030x780x1900 | |
| Temperature | Range (℃) | With lighting: 10~60 Without lighting: 4~60 | ||
| Fluctuation (℃) | ±1 | |||
| Resolution (℃) | 0.1 | |||
| Uniformity (℃) | ±1 | ±2 | ±2 | |
| Sensor | PT100 | |||
| Illumination(Lx) | 0~12000 | 0~15000 | 0~20000 | |
| Illumination Control | 6-level relative illuminance control | |||
| Controller | PID | |||
| Display | Large high efinition LCD | |||
| Timer | 1~9999min (Optional 30xsegmentsx100cycles) | |||
| Material | Internal | Stainless steel | ||
| External | Cold rolled steel electrostatic spraying exterior | |||
| Shelves | 3 | 3 | 4 | |
| Test Hole (Optional) | Φ 25, 50, 80 mm | |||
| Internal Socket | Optional | |||
| Refrigerant | R134a (CFC free) | |||
| Defrosting Mode | Automatic | |||
| Safety Device | Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector | |||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | ||
| Consumption (W) | 640 | 1600 | 1750 | |
| N.W./G.W. (kg) | 120/150 | 140/160 | 165/185 | |
| Shipping Size (WxDxH) (mm) | 820x800x1920 | 940x990x2080 | 940x1140x2080 | |
| Optional | Test hole, spare shelf, internal socket, digital independent temp, limiter, intelligent LCD procedure, temperature controller (Optional USB, RS485/232 port, and built-in printer) | |||
Three-stage electric heating defrosting program control to prevent temperature fluctuations caused by frost.
Energy-saving LED cold light source with adjustable light intensity in six levels.
Large-screen LCD display for real-time parameter monitoring with screen self-locking function.
Internal circulation system: Back suction and bottom vertical air supply for improved temperature uniformity.
Flexible shelf adjustment with a minimum spacing of 30mm.
High-quality brushed stainless steel inner tank for corrosion resistance.
Built-in observation window for easy viewing.
