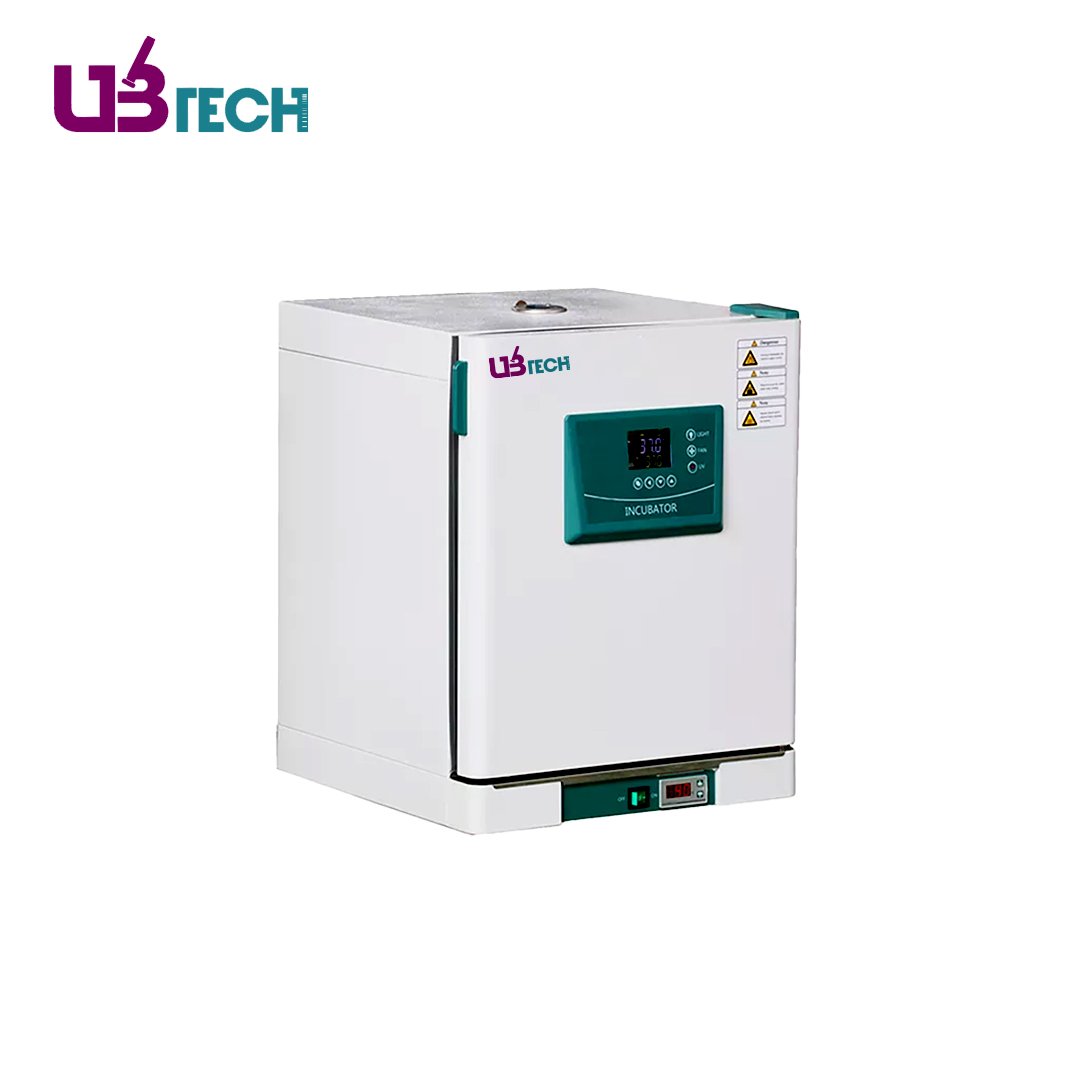

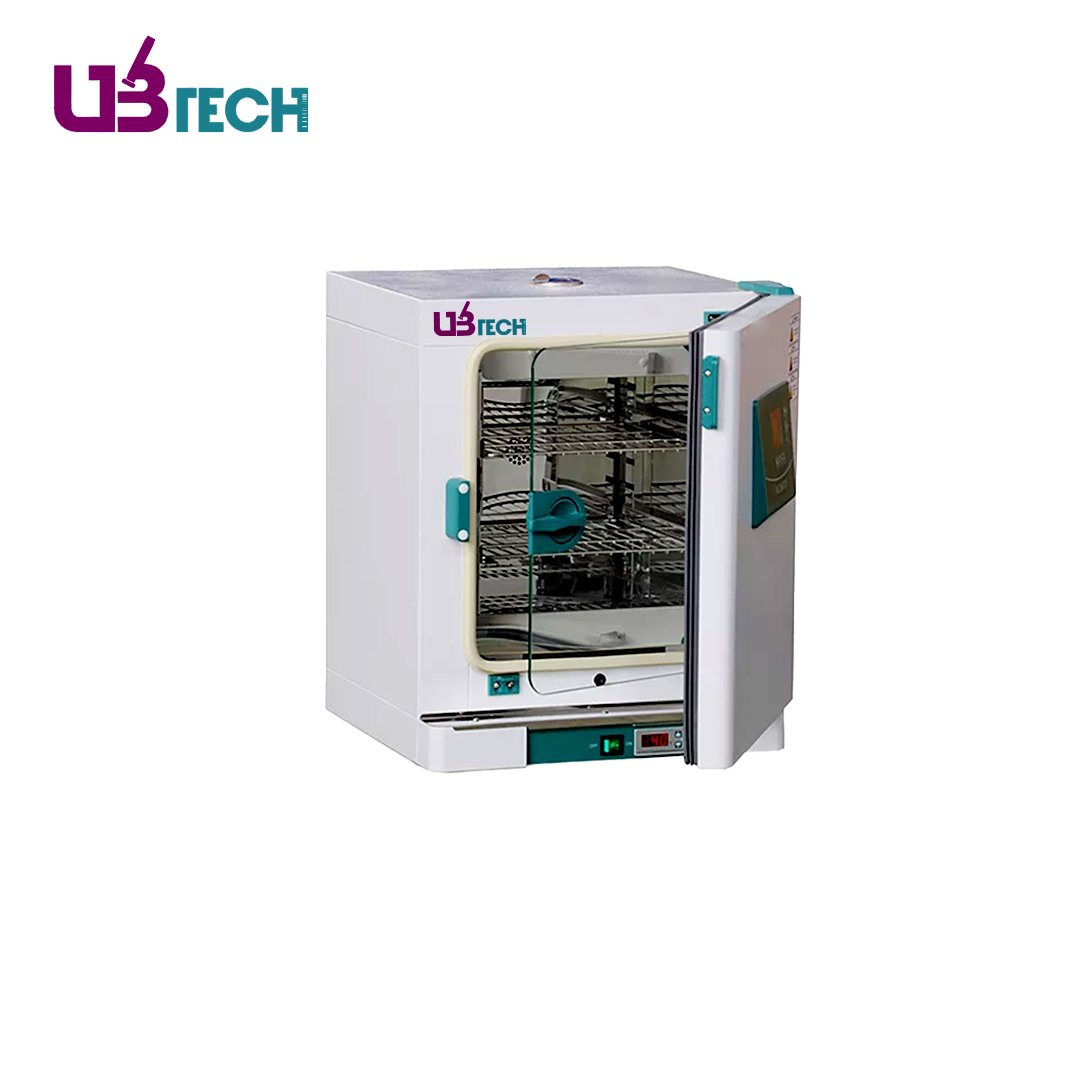

Constant Temperature Incubator
Laboratory Thermostatic Incubator Specifications:
Model | UICB-45P | UICB-65P | UCB-125P | UICB-210P | |
---|---|---|---|---|---|
Capacity(L) | 45 | 65 | 125 | 210 | |
Circulation Mode | Forced convection | ||||
Size(WxDxH) | Internal (mm) | 350x350x350 | 400x350x450 | 500x450x550 | 600x580x600 |
External (mm) | 525x480x620 | 575x480x720 | 675x580x820 | 775x710x870 | |
Temperature | Range (℃) | RT+5 ~ 70 | |||
Fluctuation (℃) | ±0.5 | ||||
Resolution (℃) | 0.1 | ||||
Uniformity (℃) | ±0.8 | ||||
Sensor | PT100 | ||||
Controller | PID Intelligent | ||||
Display | High Efinition LCD | ||||
Timer(min) | 0~9999 (With timing wait function) | ||||
Material | Internal | Mirror stainless steel | |||
External | Cold rolled steel electrostatic spraying exterior | ||||
Shelves (Standard / Max) | 2 / 7 | 2/10 | 2 / 13 | 2 / 14 | |
Exhaust Hole | Standard Φ35mm top with function of test hole | ||||
Safety Device | Over temperature Visible & Audible alarm, digital independent temp. limiter | ||||
Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | |||
Consumption (W) | 350 | 450 | 600 | 700 | |
N.W./G.W. (kg) | 27/40 | 32/45 | 45/60 | 55/82 | |
Shipping Size (WxDxH)(mm) | 605x572x795 | 655x572x885 | 755x672x990 | 860x810x1050 | |
Optional | Spare shelf, U-Disk storage, printer, data recorder, remote control |
Constant Temperature Incubator Features:
High precision digital independent temperature limiter.
Standard lights, UV lamps, with breeze circulation fan.
Automatically UV lamp turned off when the door is opened.
Adopt high quality glass, convenient to observe the samples
The outer door is sealed with a magnetic strip switch and has a power-off function to ensure safety.
The thermostatic incubator is equipped with standard lamps and UV lamps, able to adjust the light source according to the demand.
Built-in circulating fan ensures uniform temperature distribution and improves the reliability of experimental results.
Adopt high quality mechanical temperature limiter, set the studio limit temperature, provide double protection against overheating.
