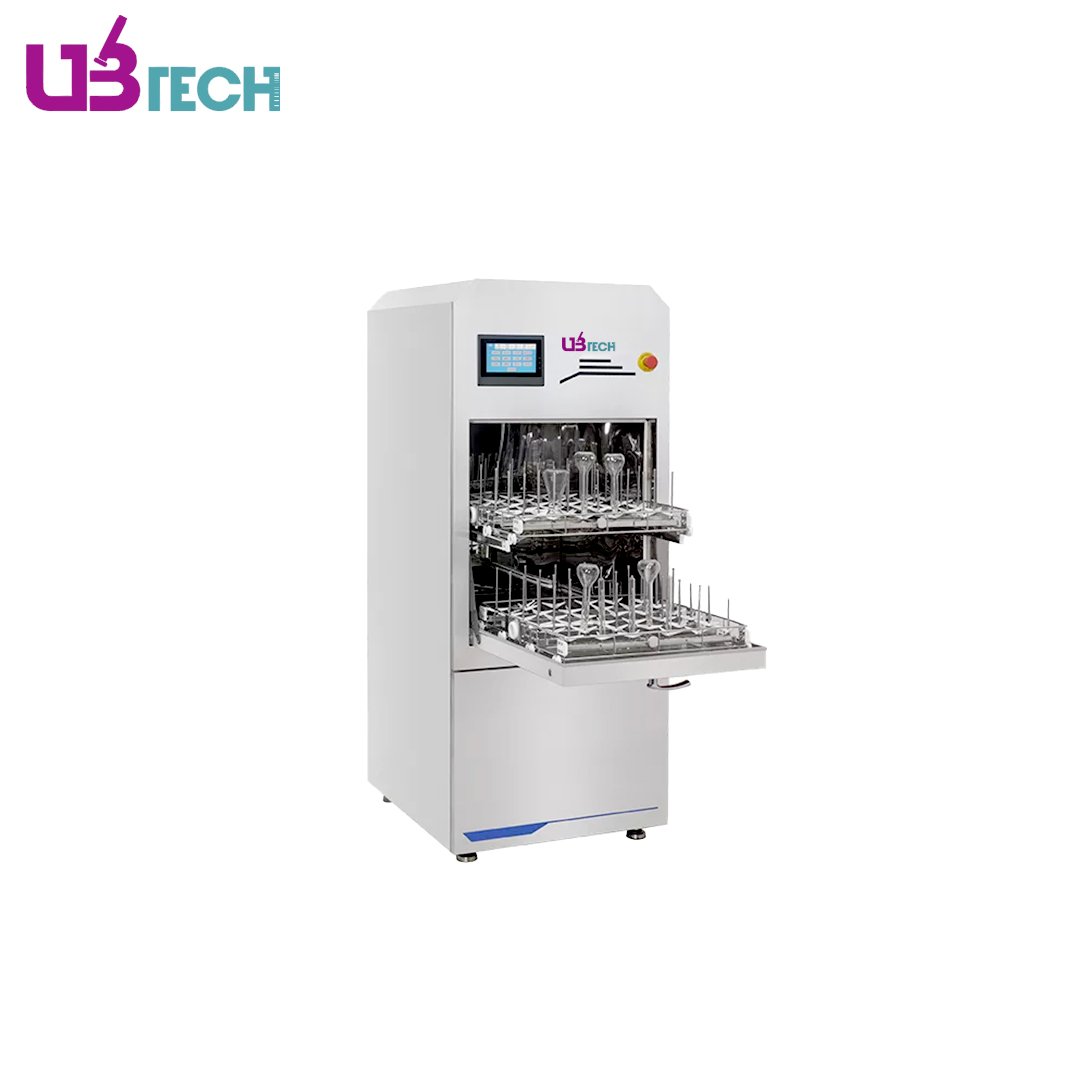

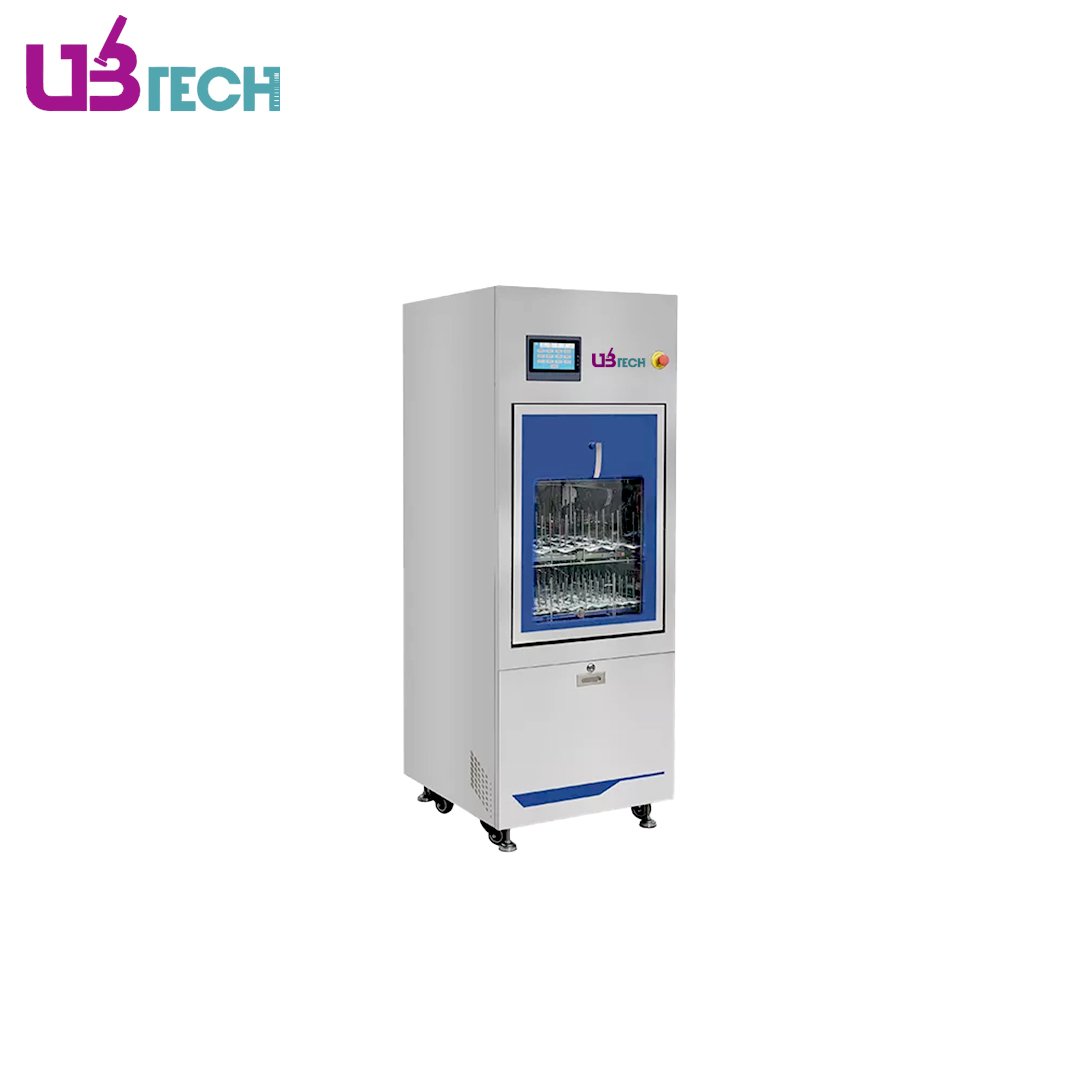

Automatic Glassware Washer, Basic
Lab Glassware Washer Specifications:
| Model | UWD-220 | UWD-320 | ||
|---|---|---|---|---|
| Capacity(L) | 220 | 320 | ||
| Display | 7inch LCD touch screen | |||
| Standard Program | 12 (can free upgrade to 40 units) | |||
| Self-defined Program | 99 (can free upgrade to 200 units) | |||
| Data Files | Cleaning program files, cleaning record files, Monitor files | |||
| Storage | Yes | |||
| Permission Management System | Three level | |||
| Printer | No, with USB interface | |||
| Drying | Drying System | Heat exchange system | ||
| Drying Time Range | 0 to 30 mins | |||
| Drying Temp Range | RT to 120℃ | |||
| Drying Method | Hot air injection via Sprinkler | |||
| Water Inlet Pipe | Quantity | 2 | ||
| Length | 3m | |||
| Material | PVC | |||
| Flow Rate | 0-800L/min | 0-1000L/min | ||
| Consumption | 1.5kW | 1.5kW | ||
| Pipeline Pressure Monitoring | Yes | |||
| Structure | Material | External | 304 stainless steel | |
| Cleaning Chamber | 316 stainless steel | |||
| Door | Dual-Point Electronic Control Door Lock | |||
| Foot | Four universal casters | |||
| Cleaning Layer | 2 layer | 3 layer | ||
| Air Heating | 3.6kW | 3.6kW | ||
| Power Supply | 380/220V, 110V, 50/60Hz | |||
| Consumption | 6kW/16kW | 7kW/17kW | ||
| Internal Size(W×D×H)(mm) | 600×629×754 | 600×629×915 | ||
| External Size(W×D×H)(mm) | 690×790×1825 | 690×790×1985 | ||
| Shipping Size(W×D×H)(mm) | 810×990×2015 | 810×990×2185 | ||
| N.W./G.W. (kg) | 220/300 | 237/320 | ||
Lab Glassware Washer Features:
Humanized Operating System
- The man-machine interface features a 7-inch color LCD touchscreen（WD-60 is 4.3 inch）, enabling intuitive touch operation within the visual field for convenient operation. It includes pressure sensing, making it well-suited for complex operating environments.
- The PLC programmable micro-computer operating system ensures stable and reliable performance. It is designed to be anti-magnetic and resistant to breakdowns.
Standardized Cleaning
- Dual Peristaltic Pumps：Disinfection effectiveness mainly depends on the correct performance of the washing phases and the neutralization of the treated material. Creatrust washers come equipped with two peristaltic pumps: one dedicated to dispensing the alkaline detergent during the cleaning phase and the other for dispensing the acid neutralizer during the neutralization phase.
- By controlling the cleaning process and monitoring key cleaning parameters through automatic program flow control, the automation and standardization of vessel cleaning can be achieved;
- Equipped with two water inlets controlled by electromagnetic valves, users have the option to select between tap water and purified water during the wash and rinse phases
- The 360° spray mechanism ensures comprehensive internal and external cleaning of the container, eliminating dead spots and ensuring optimal cleaning effectiveness.
- The pure water inlet features an integrated booster pump, enabling direct suction of purified water without the need for an external booster
- Consistency is maintained across different batches, as well as within each batch, ensuring the cleaning effect at every point remains uniform
- Enables traceability management of cleaning data for enhanced record-keeping and accountability.
