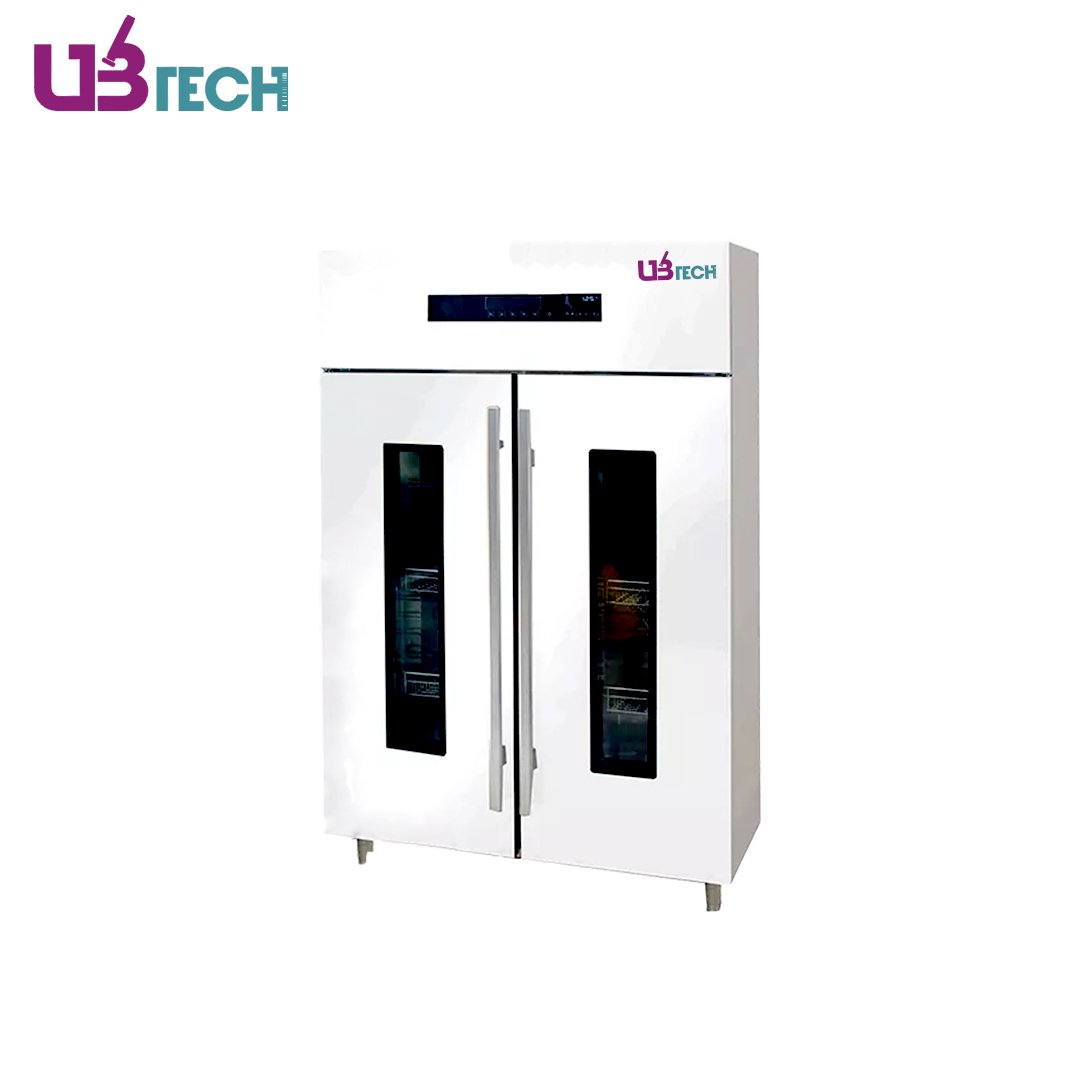

Medical Drying Cabinet With Disinfection
Drying Disinfection Cabinet Specifications:
| Model | UDQB360 | UDQB360P | UDQB720 | UDQB720P |
|---|---|---|---|---|
| Reference Volume (L) | 360 | 360 | 720 | 720 |
| Product Specifications | Single door | Single door | Double door | Double door |
| Interior Size (W×D×H)(mm) | 578x420x1380 | 578x420x1380 | 578(x2)x420x1380 | 578(x2)x420x1380 |
| Exterior Size (W×D×H)(mm) | 650x710x1970 | 650x710x1970 | 1310x710x1970 | 1305x710x1970 |
| Power (KW) | 2.4 | 2.4 | 4.8 | 4.8 |
| Temperature Control Range | RT+5℃~125℃ | RT+5℃~150℃ | RT+5℃~125℃ | RT+5℃~150℃ |
| Power Type (V/Hz) | 220/50 | 220/50 | 220/50 | 220/50 |
| Exterior Packaging Size (W×D×H)(mm) | 700x670x2010 | 700x670x2010 | 1350x670x2010 | 1350x670x2010 |
| Net Weight (kg) | 75 | 80 | 135 | 145 |
| Gross Weight (kg) | 80 | 85 | 145 | 155 |
Drying Disinfection Cabinet Features:
Drying preservation: Utensils drying preservation cabinet (disinfection) one machine multi-functional, drying and long-term preservation at the same time, reasonable design, small space, to provide users with a more convenient experience.
High efficiency far infrared heating: High efficiency far infrared heating tube or light wave disinfection tube has low power consumption, 75% electricity saving than electrothermal disinfection., Safety and energy saving. High heating speed and high efficiency, suitable for all glassware (including glassware with scale), no leakage and spontaneous combustion risk.
Multi-type layer frame design: The number of partition layer is optional, the layer frame spacing is adjustable, high space utilization, a variety of layer frame, including deep basket, shallow basket, mesh plate (3cm, 5cm, 7cm, 10cm a variety of specifications), suitable for the storage of various sizes and shapes of glass
Special for drying utensils: The drying disinfection cabinet is designed to dry all kinds of vessels, the highest temperature of 135 / 150 C, can withstand high temperature more than 80℃ of vessels can be used, such as high temperature glass quartz, high temperature metal, high temperature nonmetal mainly ceramics, graphite, high temperature plastic and other laboratory vessels.
Protection function: Dual temperature control probe, give you dual protection, use more assured.
Dust proof design: Using fully tempered glass transparent visual glass window, while maintaining the internal positive pressure, effectively prevent external dust entry, making it very suitable for long-term storage of glassware.
Advantages of Medical Drying Cabinet:
360 high temperature hot air cycle + infrared light wave sterilization, more thorough disinfection;
The whole machine is made of high quality national standard stainless steel plate, the equipment liner sus304 stainless steel; the frame / basket is made of 316L stainless steel, which greatly reduces the corrosion rate of the box;
Dual temperature control probe, give you dual protection, use more assured, temperature control range of RT+5℃~125℃;
Intelligent control panel, technology fashion, simple to operate;
The overall stretch of the box bottom, beautiful, easy to clean;
Large glass can see the window, so that disinfection visible, convenient access and dustproof effect;
Cyclopentane foaming, high efficiency of heat preservation, more energy saving;
Full stainless steel load-bearing adjustment foot, adjustable high and low function;
With ergonomic integrated slender handle, easy to open and close;
