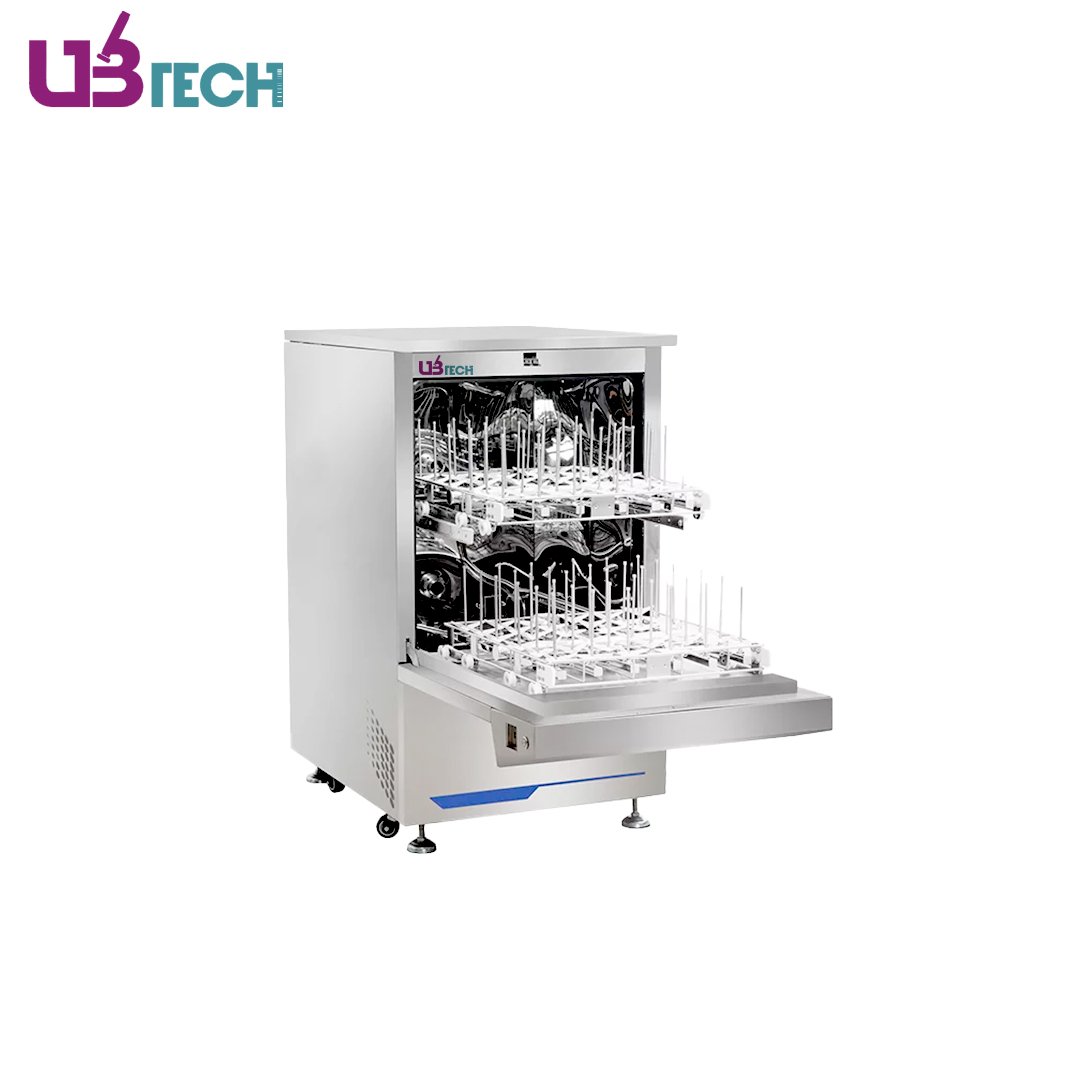

Automatic Glassware Washer Without Dryer
Automatic Glassware Washer Specifications:
| Model | UWD-200I | ||
|---|---|---|---|
| Capacity (L) | 200 | ||
| Display | 7inch LCD touch screen | ||
| Standard Program | 12 (can free upgrade to 40 units) | ||
| Self-defined Program | 99 (can free upgrade to 200 units) | ||
| Data Files | Cleaning program files, cleaning record files, Monitor files | ||
| Storage | Yes | ||
| Permission Management System | Three level | ||
| Printer | No, with USB interface | ||
| Water inlet pipe | Quantity | 2 | |
| Length | 3m | ||
| Material | PVC | ||
| Flow Rate | 0-430L/min | ||
| Consumption | 0.75kW | ||
| Pipeline Pressure Monitoring | Yes | ||
| Structure | Material | External | 304 stainless steel |
| Cleaning chamber | 316 stainless steel | ||
| Door | Dual-Point Electronic Control Door Lock | ||
| Foot | Four universal casters | ||
| Cleaning Layer | 2 layer | ||
| Air Heating | 0kW | ||
| Power Supply | 220/110V, 50/60Hz | ||
| Consumption | 4kW | ||
| Internal Size(W×D×H)(mm) | 526×542×645 | ||
| External Size(W×D×H)(mm) | 607×840×1050 | ||
| Shipping Size(W×D×H)(mm) | 980×720×1270 | ||
| N.W./G.W. (kg) | 125/165 | ||
Automatic Glassware Washer Features:
- Efficiently removes organic residues and metal ions through automated high-temperature, high-pressure water cleaning.
- Compact and lightweight design with corrosion-resistant stainless steel construction, suitable for small laboratories.
- The man-machine interface features a 7-inch color LCD touchscreen, enabling intuitive touch operation within the visual field for convenient operation. It includes pressure sensing, making it well-suited for complex operating environments..
- Efficient cleaning with a powerful imported pump, even water distribution, secure sealing, and rotating spray arms for thorough cleaning.
- Secure door lock with emergency opening, comprehensive protection with alarms, and English prompts for safe operation.
- The PLC programmable micro-computer operating system ensures stable and reliable performance. It is designed to be anti-magnetic and resistant to breakdowns.
- Dual Peristaltic Pumps：Disinfection effectiveness mainly depends on the correct performance of the washing phases and the neutralization of the treated material. Creatrust washers come equipped with two peristaltic pumps: one dedicated to dispensing the alkaline detergent during the cleaning phase and the other for dispensing the acid neutralizer during the neutralization phase.
- By controlling the cleaning process and monitoring key cleaning parameters through automatic program flow control, the automation and standardization of vessel cleaning can be achieved;
- Equipped with two water inlets controlled by electromagnetic valves, users have the option to select between tap water and purified water during the wash and rinse phases
- The 360° spray mechanism ensures comprehensive internal and external cleaning of the container, eliminating dead spots and ensuring optimal cleaning effectiveness.
- The pure water inlet features an integrated booster pump, enabling direct suction of purified water without the need for an external booster
