Vertical Acid Steam Cleaning System
Acid Steam Cleaning System Specifications:
| Model | UASCS-3300 | ||
|---|---|---|---|
| Capacity(L) | 87L | ||
| Display | 7 inch LCD touch screen | ||
| Standard Program | 20 | ||
| Permission Management System | 3 Level | ||
| Cleaning | Consumption of Acid | 70ml (1ml/min) | |
| Cleaning ≥49 units of 100mL microwave digestion tubes at once | |||
| Drying | Drying system | Hot air injection via Sprinkler | |
| Drying Time Range | 0 to 300mins | ||
| Drying Temp Range | RT to 100℃ | ||
| Airflow Rate for Drying | 168m³/h. | ||
| Drying Method | Hot air injection via Sprinkler | ||
| Water inlet pipe | Quantity | 2 | |
| Length | 3m ( Customizable) | ||
| Material | PTFE | ||
| Water Pump | Brand | World-renowned brand | |
| Flow Rate | 120L/min | ||
| Consumption | 0.75kW | ||
| Structure | Material | External | 304 stainless steel |
| Cleaning chamber | PTFE | ||
| Door | Double-door design, for enhanced safety. | ||
| Caster | Four universal casters at the bottom of the instrument for easy movement | ||
| Total Consumption | 1.5kW | ||
| Power Supply | 220/110V, 50/60Hz | ||

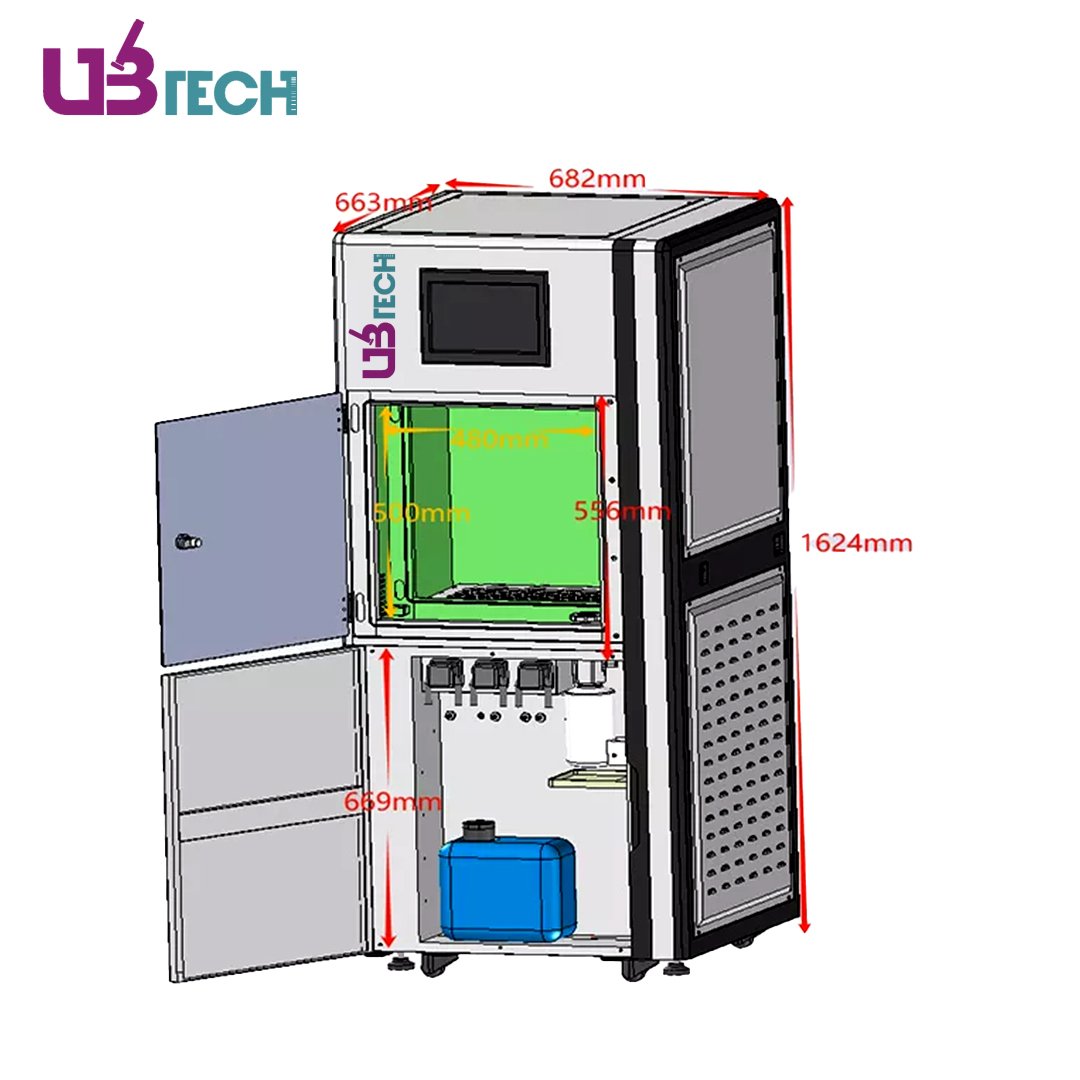

| External Size(W×D×H)(mm) | 682x663x1624 | ||
| Shipping Size(W×D×H)(mm) | 880x860x1880 | ||
| N.W./G.W. (kg) | 220/249 | ||
Acid Steam Cleaning System Advantages:
1. Environmentally friendly and pollution-free.
2. Save acid consumption and reduce cleaning costs.
3. Excellent corrosion resistance.
4. The acid steam cleaning system is fully automated, combining acid vapor cleaning, ultra-pure water spraying, and drying into one integrated process.
