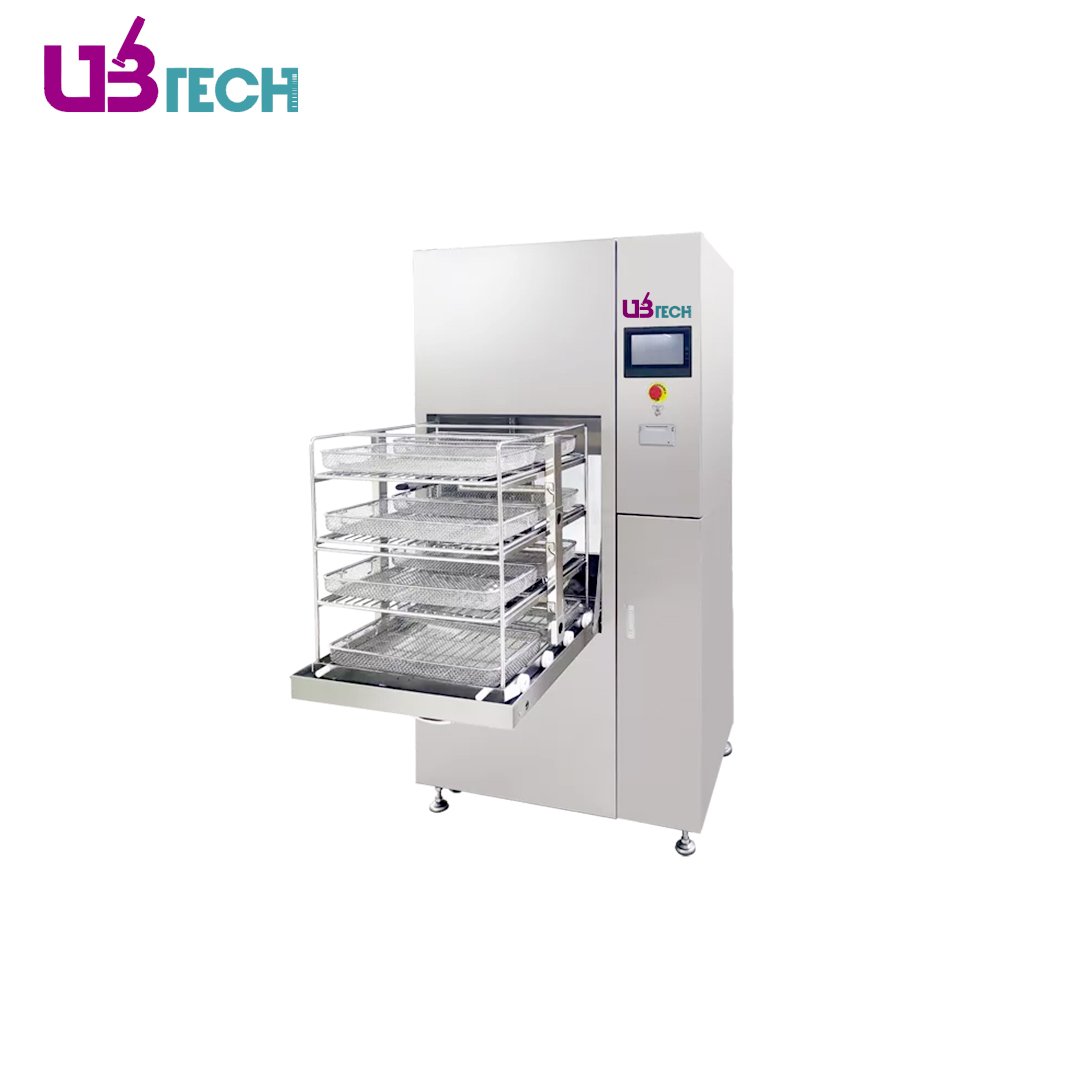

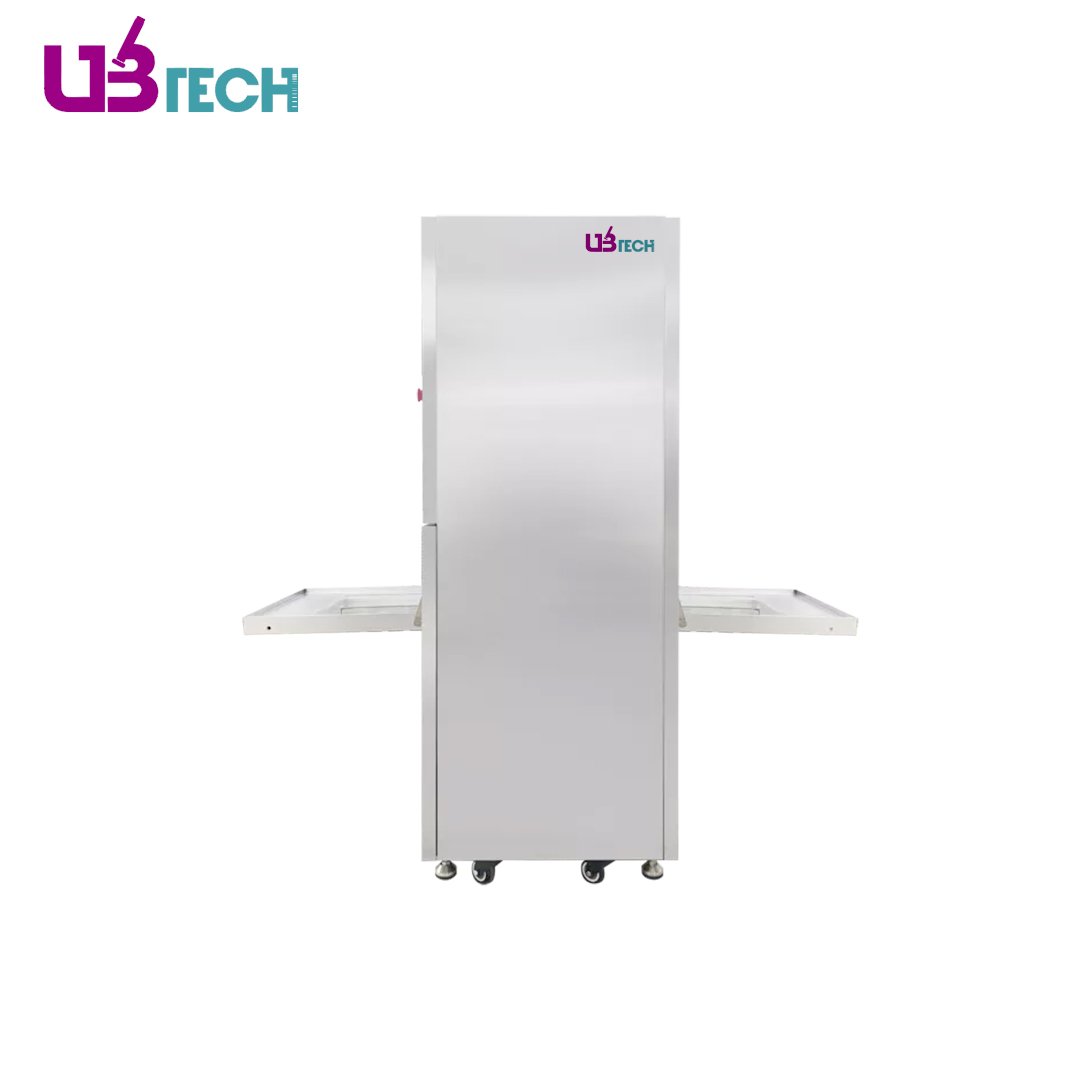

Automatic Glassware Washer
Automatic Glassware Washer Specifications:
| Model | UWD-220M | UWD-320M | UWD-420M | ||
|---|---|---|---|---|---|
| Capacity(L) | 220 | 320 | 420 | ||
| Display | 7inch LCD touch screen | ||||
| Standard Program | 20 | ||||
| Self-defined Program | 100 | ||||
| Data Files | Cleaning program files, Cleaning record files, Monitor files | ||||
| Storage | Yes | ||||
| Permission Management System | Three level | ||||
| Printer | Yes | ||||
| Drying | Drying System | Heat exchange system | |||
| Drying Time Range | 0 to 30 mins | ||||
| Drying Temp Range | RT to 120℃ | ||||
| Drying Method | Hot Air Drying | ||||
| Water inlet pipe | Quantity | 2 | |||
| Length | 3m | ||||
| Material | PVC | ||||
| Flow Rate | 800L/min | 1000L/min | 1000L/min | ||
| Consumption | 0.75kW | 1.5kW | 1.5kW | ||
| Pipeline Pressure Monitoring | Yes(Optional) | ||||
| Structure | Material | External | 304 stainless steel | ||
| Cleaning Chamber | 316stainless steel | ||||
| Door | Dual-Point Electronic Control Door Lock | ||||
| Foot | Four universal casters | ||||
| Cleaning Layer | 4 layer | 5 layer | 5 layer | ||
| Air Heating | 3.6kW | 3.6kW | 5kW | ||
| Power Supply | 220/380V, 50/60Hz | ||||
| Consumption (Max) | 16kW | 17kW | 17kW | ||
| Internal Size(W×D×H)(mm) | 600x629x830 | 600x629x990 | 688x700x703 | ||
| External Size(W×D×H)(mm) | 960×805×1865 | 960×805×2025 | 1110×950×2085 | ||
| Shipping Size(W×D×H)(mm) | 1100×950×2150 | 1100×950×2180 | 1230×1070×2290 | ||
| N.W./G.W. (kg) | 330/420 | 350/440 | 370/460 | ||
Automatic Medical Glassware Washer Features:
An automatic glassware washer improves the lab's hygiene and safety and increases productivity by freeing researchers from manual cleaning tasks. Here are some of its features:
- Front and back two toughened glass doors, prevent cross infection.
- Efficiently removes organic residues and metal ions through automated high-temperature, high-pressure water cleaning.
- Compact and lightweight design with corrosion-resistant stainless steel construction, suitable for small laboratories.
- Microcomputer control system with LCD screen for easy operation and customization of cleaning modes and parameters.
- Efficient cleaning with a powerful imported pump, even water distribution, secure sealing, and rotating spray arms for thorough cleaning.
- Secure door lock with emergency opening, comprehensive protection with alarms, and English prompts for safe operation.
