GMP Washer
GMP Washer Specifications:
Model | UGMP-600 | UGMP-1200 | UGMP-1600 | |
---|---|---|---|---|
Capacity(L) | 688 | 1210 | 1690 | |
Control System | Siemens S7-1200 | |||
Display | 7 inch LCD Touch screen | |||
Standard Program | 20 | |||
Permission Management System | Four level | |||
Storage | USB port | |||
Printer | Build in Printer | |||
Cleaning System | Cleaning Temp Range | RT to 93℃ | ||
Cleaning Method | Spray cleaning | |||
Cleaning Agent Addition Channel | Double channel | |||
Cleaning Agent Storage Capacity | 5L x 2units | |||
Advanced Function | Audit tracking Spray arm speed sensor,Pipeline pressure monitoring Circulating pump variable frequency startup | |||
Drying System | Drying Mode | Hot air injection via sprinkler by compressor fan | ||
Drying Time Range | 15 to 30 mins | |||
Drying Temp Range | RT to 120℃ | |||
Air Volume | 270M3/H | 345M3/H | 420M3/H | |
Water Inlet Pipe | Quantity | 2 units | ||
Material | 304 stainless steel | |||
Water Pump | Brand | World-renowned brand | ||
Flow Rate | ≥1000L/min | |||
Structure | Material | AISI316L stainless steel | ||
Door | Double-layered, hollow-tempered glass side-opening door with a stainless steel frame | |||
Power Supply | 380V, 50/60Hz | |||
Consumption | 22kW | 26kW | ||
Internal Size(W×D×H)(mm) | 830X830X1000 | 1100X1100X1000 | 1300X1300X1000 | |
External Size(W×D×H)(mm) | 1540X950X1990 | 1825X1220X1990 | 2050X1420X1990 | |
Shipping Size(W×D×H)(mm) | 1700X1250X2240 | 2100X1550X2240 | 2350X1700X2240 | |
N.W./G.W. (kg) | 650/730 | 800/900 | 950/1070 |
GMP Washer Features:
Structure

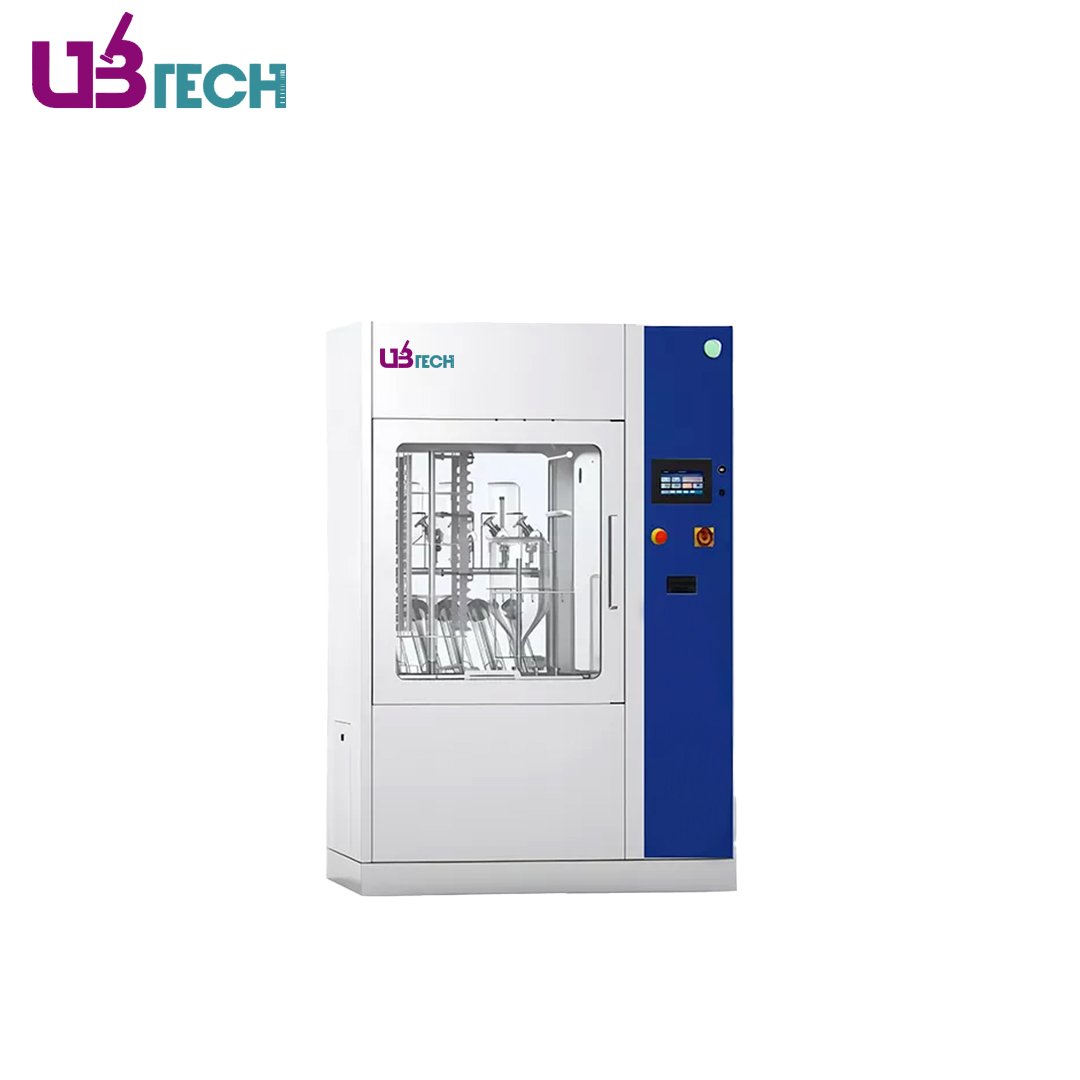

- Incorporating a hollow tempered glass door, enabling operators to observe the chamber's interior even when the machine is closed.
- Offering the option of a single or double door design, suitable for use in both contaminated and clean areas.
- Equipped with an emergency stop switch for secure and immediate shutdown in case of emergencies.

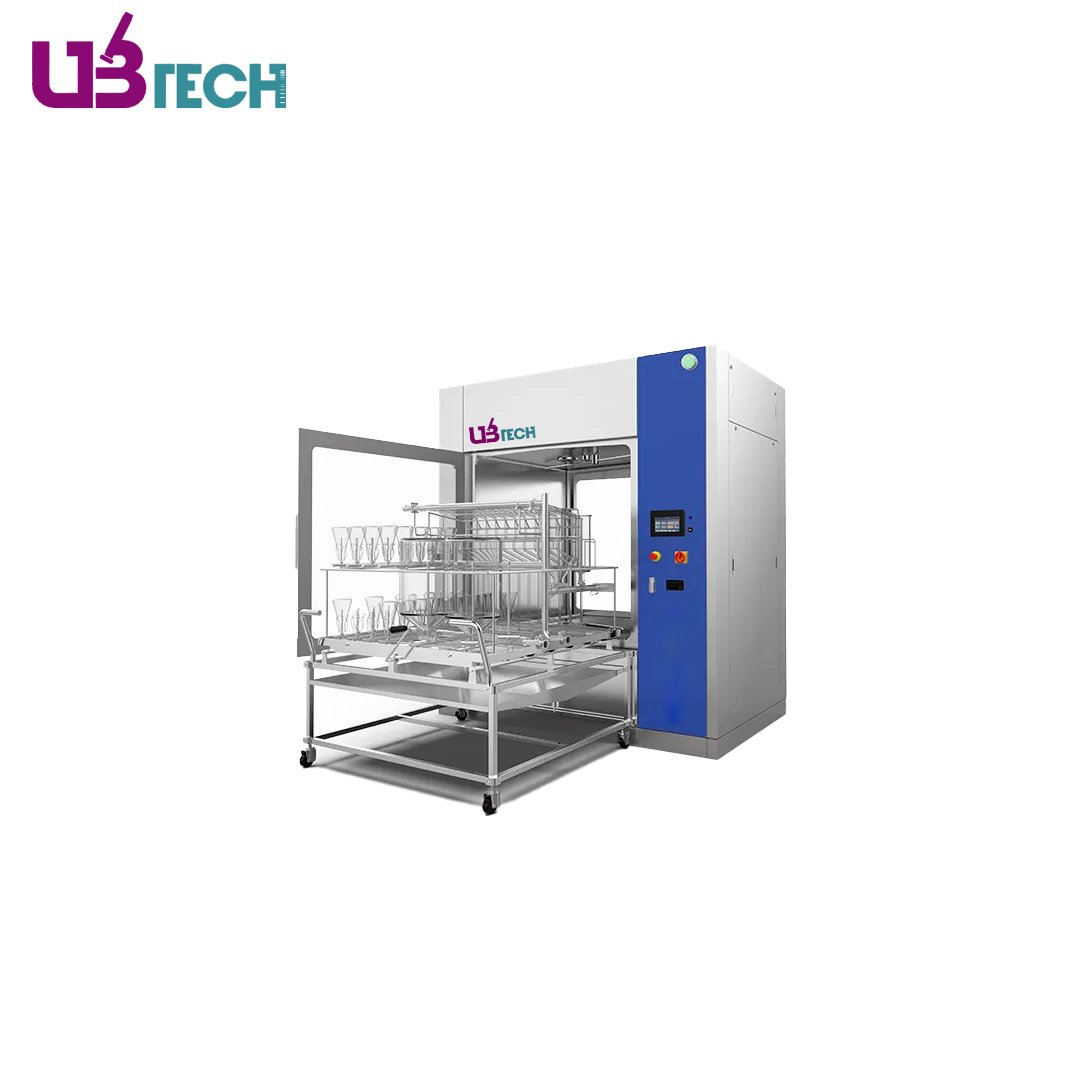

- Providing a basket cart for the convenient loading and unloading of baskets.
Material
- The cleaning chamber, including the water tank, is constructed from polished 316L stainless steel, featuring precision argon welding and an overall curved, sloping design. The cleaning machine shell is made of 304 stainless steel.
- Components of the spray cleaning system, such as the filter screen, rotating spray arm, and cleaning basket pipeline, are crafted from 316L stainless steel.
- All circulation pipelines and areas that come into contact with the circulating medium are composed of 316L stainless steel, pharmaceutical-grade silicone resin, and polytetrafluoroethylene material.
- Chamber lighting is integrated within the cleaning chamber.
- The insulation layer is free from asbestos and chlorine, effectively minimizing heat emissions to the utmost extent.
