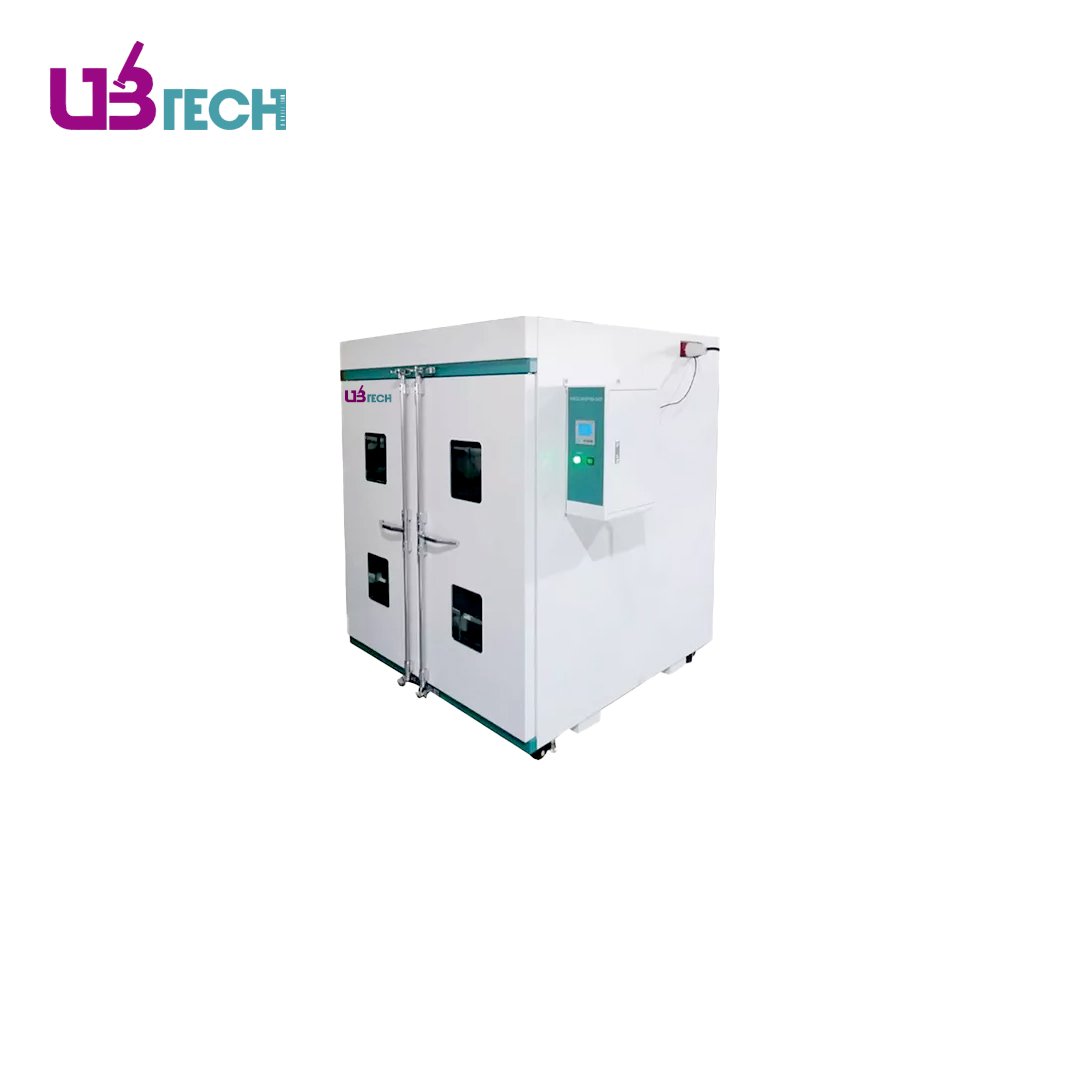

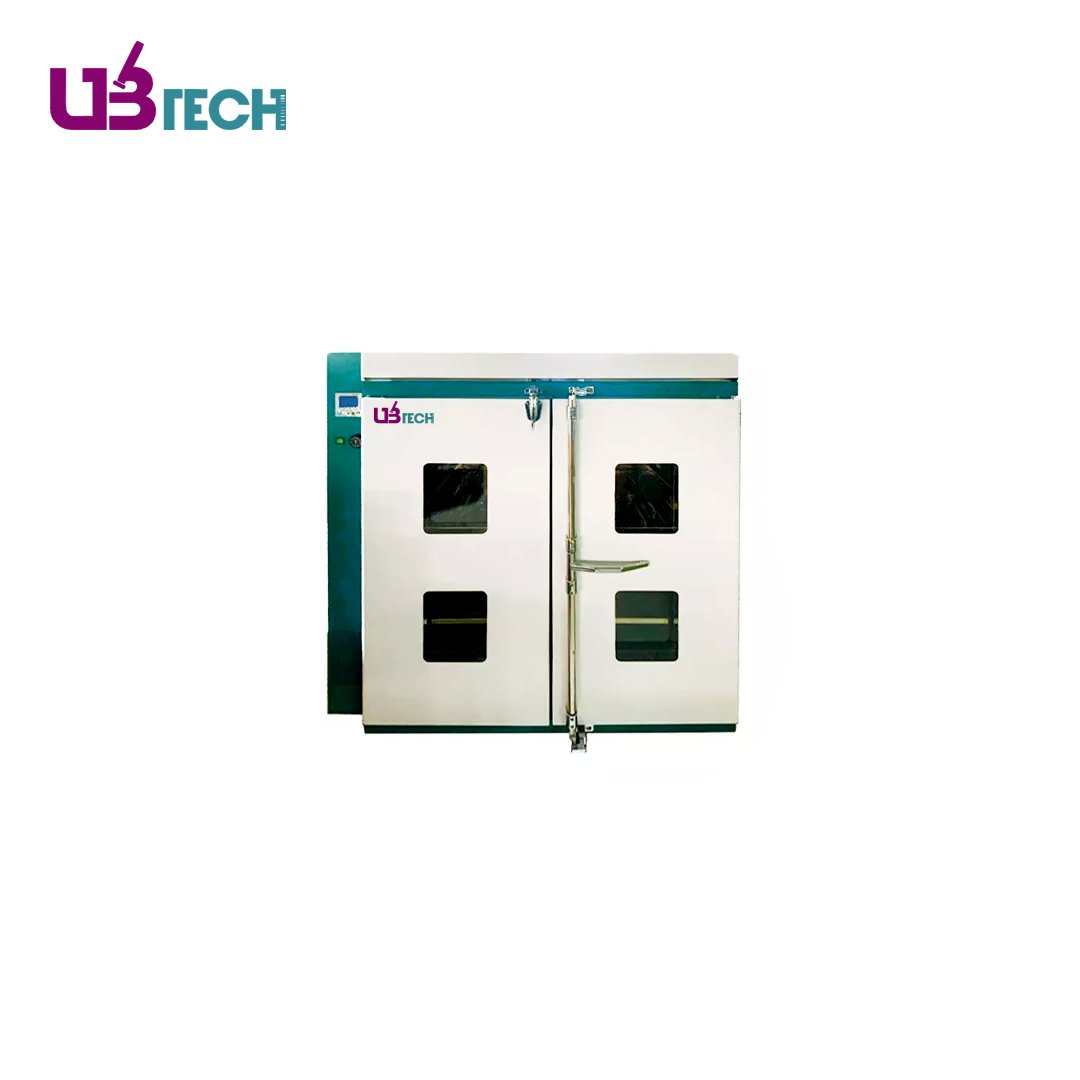

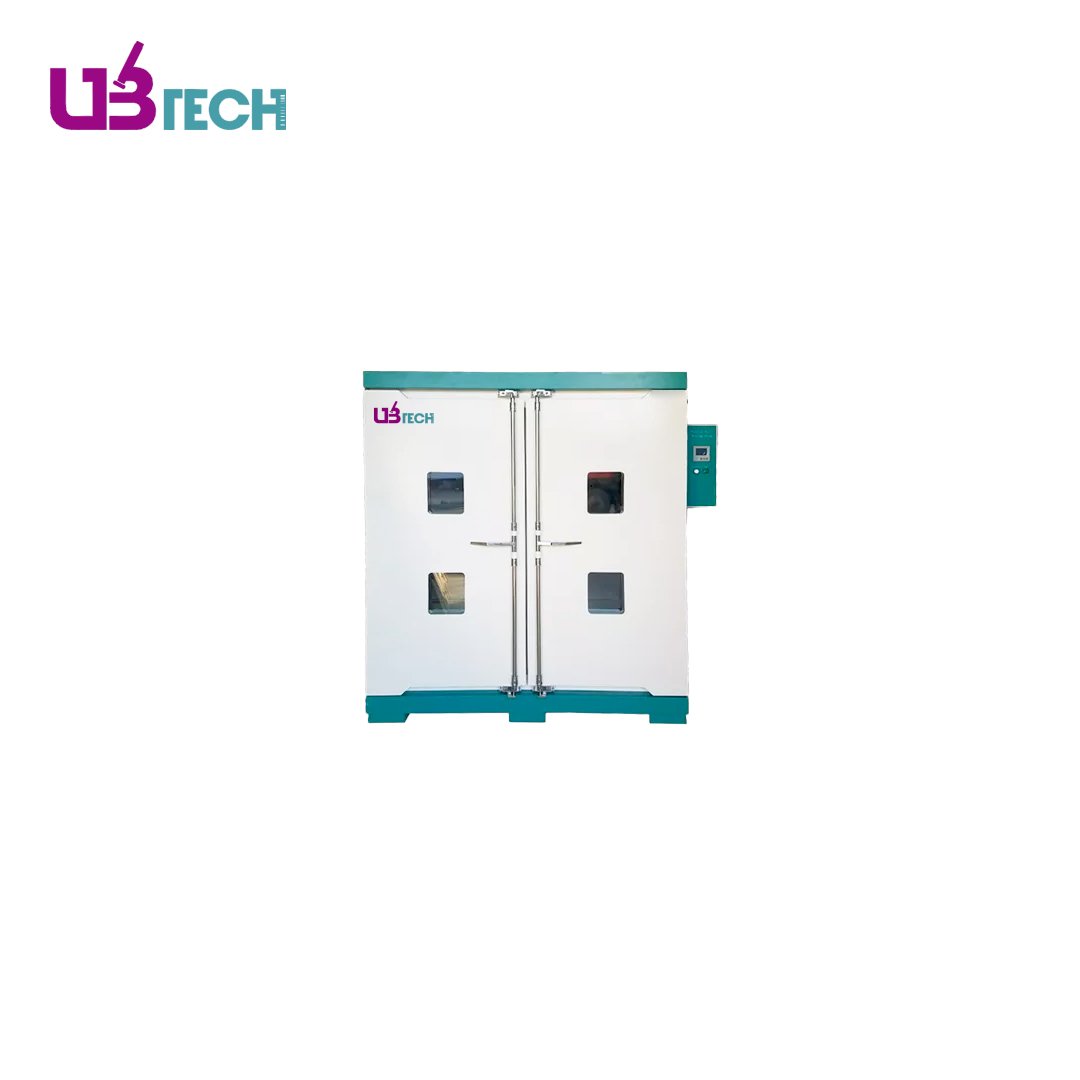

Big Forced Air Drying Oven
Forced Air Drying Oven Specifications:
| Model | UFDO-640B /UFDO-640 | UFDO-1000B /UFDO-1000 | UFDO-1300B /UFDO-1300 | UFDO-1870B /UFDO-1870 | UFDO-3070B /UFDO-3070 | |
|---|---|---|---|---|---|---|
| Capacity(L) | 640 | 1000 | 1300 | 1870 | 3070 | |
| Circulation Mode | Forced convection | |||||
| Size(WxDxH) | Internal (mm) | 800x800 x1000 | 1000x1000 x1000 | 1000x1000 x1300 | 1200x1200 x1300 | 1600x1200 x1600 |
| External (mm) | 940x1000 x1400 | 1040x1200 x1400 | 1230x1200 x1670 | 1330x1400 x1670 | 1750x1400 x1900 | |
| Temperature | Range (℃) | RT+10~250℃ | RT+10~300℃ | |||
| Fluctuation (℃) | ±1 | |||||
| Resolution (℃) | 0.1 | |||||
| Uniformity (℃) | ±3% | |||||
| Sensor | PT100 | |||||
| Controller | PID | |||||
| Display | Digital LCD | |||||
| Timer | 0~9999min(with timing wait function) | |||||
| Material | Internal | B: Iron sheet, Without B: Stainless steel | ||||
| External | Galvanized sheet electrostatic spraying exterior | |||||
| Shelves (Standard / Max ) | 2 / 11 | 2 / 11 | 2 / 15 | 2 / 15 | 2 / 18 | |
| Exhaust Hole | On top or side | |||||
| Safety Device | One key to start overheat power off | |||||
| Electricity | Voltage/ Frequency | 380V, 50/60Hz | ||||
| Consumption (W) | 6000 | 6600 | 9000 | 12000 | 15000 | |
| N.W./G.W. (kg) | 130/200 | 190/260 | 280/350 | 410/480 | 700/800 | |
| Shipping Size (WxDxH) (mm) | 1060x1190 x1520 | 1260x1290 x1520 | 1350x1300 x1890 | 1550x1500 x1890 | 1870x1620 x2230 | |
| Optional | Programmed temperature control instrument, spare shelf, RS485 interface, printer | |||||
Forced Air Drying Oven Features:
- Air drying ovens with forced convection circulation mode stand out for their excellent performance and reliability
- Drying Oven has a wide temperature range for a variety of applications
- Digital LCD display allows the user to precisely control the oven's operating parameters
- Timed wait function adds convenience and flexibility to the drying process
- The overall construction is made of high quality, corrosion-resistant materials, increasing the robustness of the oven and its resistance to external elements
- The air drying oven is equipped with a configurable number of racks, providing flexibility for different sample loads.
- Multiple safety features provide security and protection
