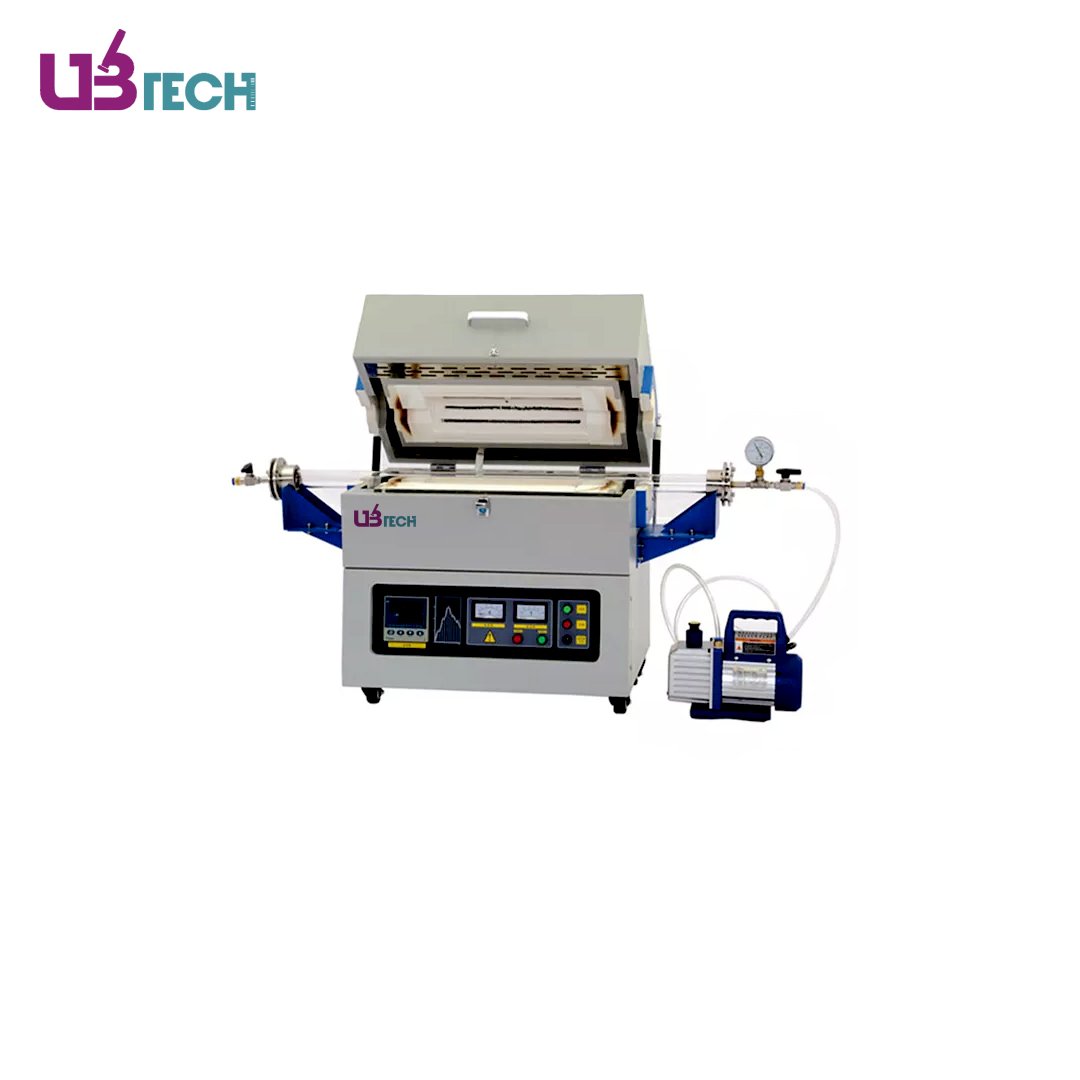

Ceramic Fiber Muffle Furnace, Tube Type
Muffle Furnace Specifications:
| Model | UMF-2-12T | UMF-2-14T | UMF-3-17T |
|---|---|---|---|
| Max. Temperature | 1200℃ for short time | 1400℃ for short time | 1700℃ for short time |
| Continuous Working Temperature | ≤1100℃ | ≤1300℃ | ≤1600℃ |
| Standard Heating Zone Length | 205mm | 205mm | 205mm |
| Standard Tube Diameter | φ40mm | φ40mm | φ40mm |
| Heating Element | Resistance wire | SIC heater | MoSi2 heater |
| Temperature Control | 30segments PID automatic control | 30segments PID automatic control | 30segments PID automatic control |
| Thermal Couple | K type | S type | B type |
| Thermal Couple | K type | S type | B type |
| Chamber Material | Alumina ceramic fiber | Alumina ceramic fiber | Alumina ceramic fiber |
| Heating Rate | 0~20℃/min (Suggestion 0~10℃/min) | 0~20℃/min (Suggestion 0~10℃/min) | 0~20℃/min (Suggestion 0~10℃/min) |
| Temperature Control Accuracy | ±1℃ | ||
| Temperature Uniformity | ±5℃ | ||
| Display Mode | LCD | ||
| Power Supply | AC110~450V, 50/60Hz | ||
| Max. Power | 2KW | 2KW | 3KW |
| Furnace Size (mm) | 40x205 | 40x205 | 40x205 |
| Tube outer diameter can be customized: 40/60/80/100mm Temperature zone length can be customized: 205/350/440mm Or customize as your requirement | |||
| Exterior Size (WxDxH)(mm) | 420x505x646 | 590x649x765 | 590x649x765 |
| Packing Size (WxLxH)(mm) | 640x550x870 | 740x730x1080 | 740x730x1080 |
| NW/GW (kg） | 60/73 | 90/103 | 140/158 |
Muffle Furnace Features:
Heating element options: Resistance wire, SIC heater, Mosi2 heater
Double layers forced air cooling structure, maintaining exterior temperature below 60°C
PID automatic control using SCR power control with phase angle fired and current limiting resistor
Programmable temperature-time curve with 30 segments
Temperature accuracy of ±1°C
