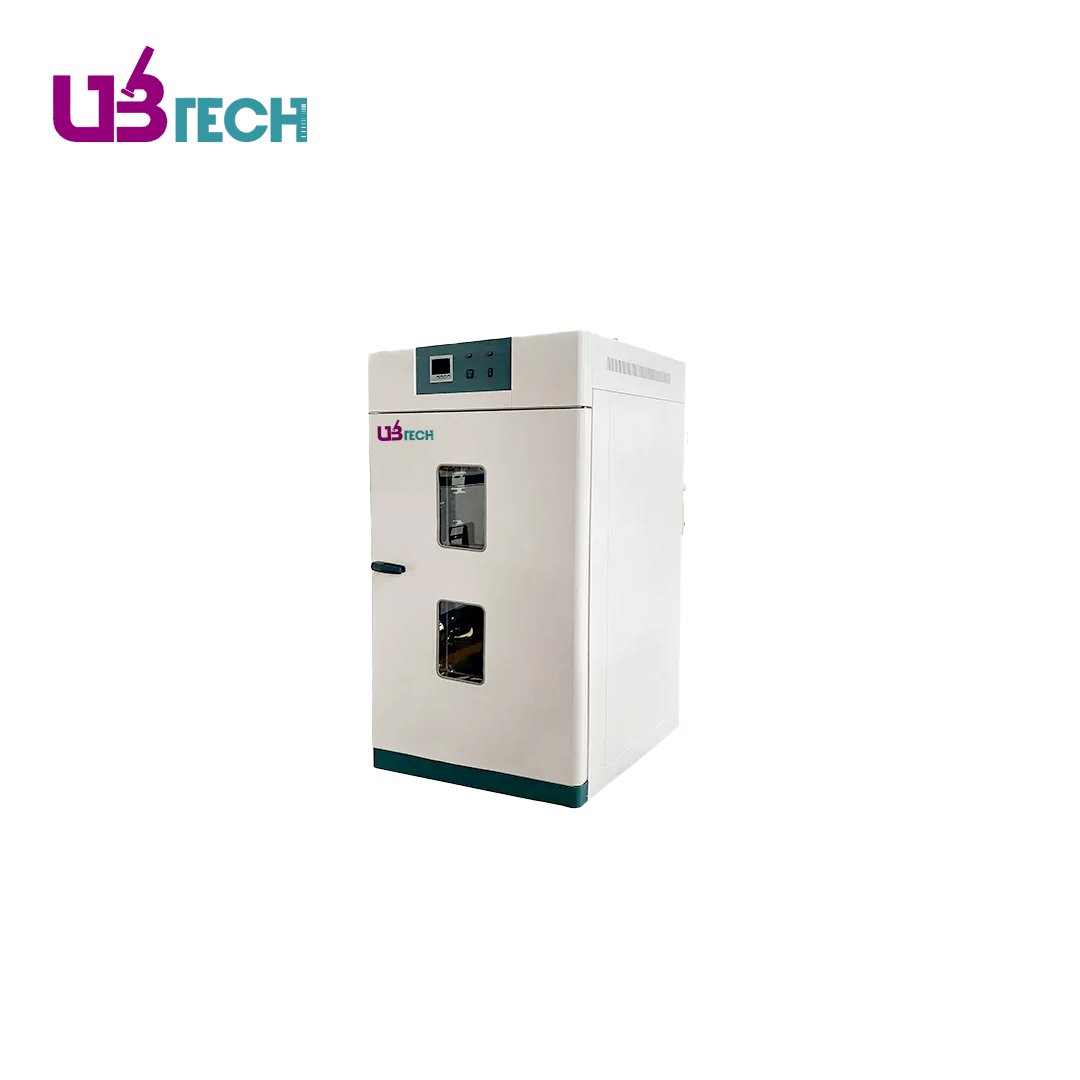

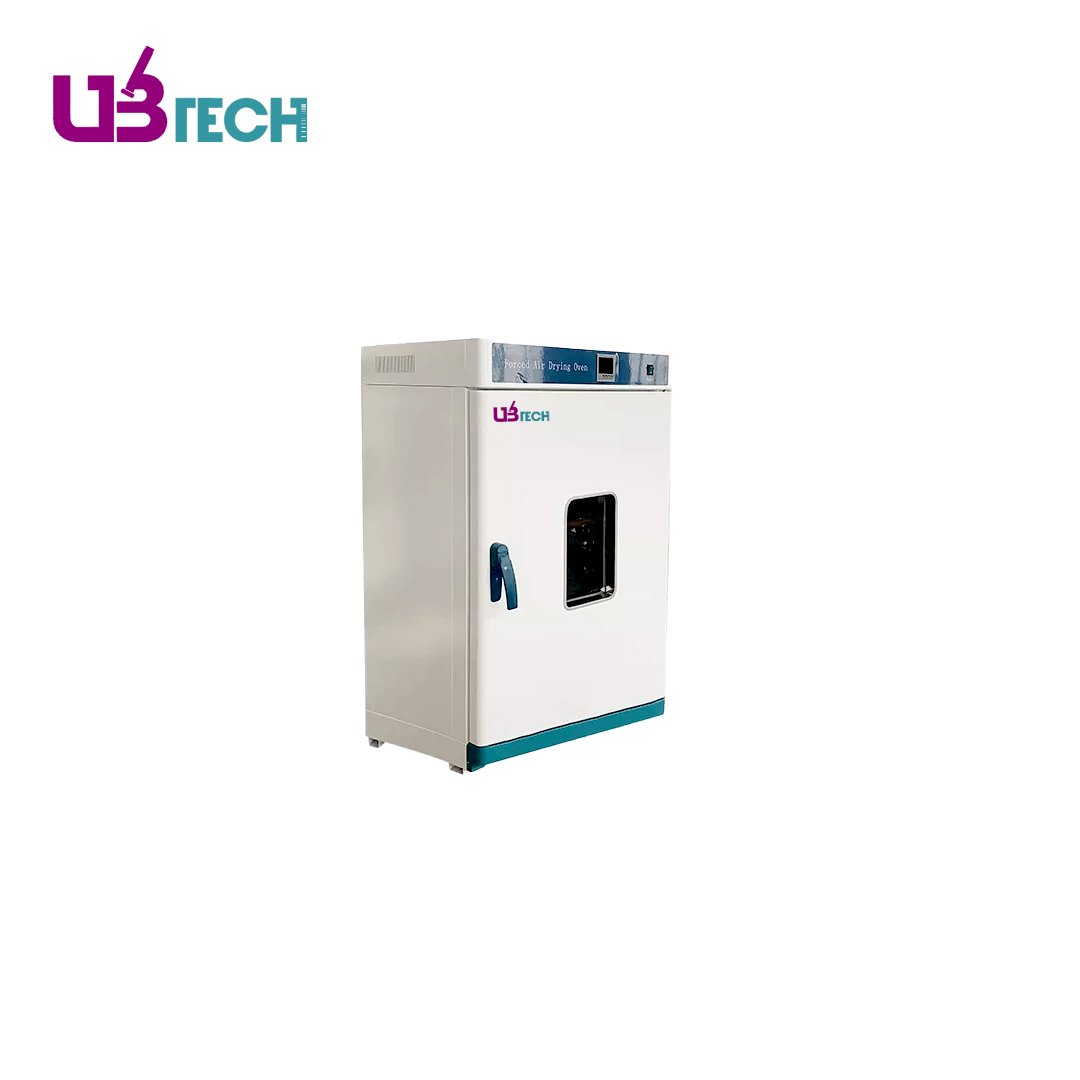

Vertical Forced Air Drying Oven
Forced Air Drying Oven Specifications:
| Model | UFDO-30BI | UFDO-45B | UFDO-65B | UFDO-125B | UFDO-230B | UFDO-625B |
|---|---|---|---|---|---|---|
| Capacity(L) | 30 | 45 | 65 | 125 | 230 | 625 |
| Display | LCD Display Screen | |||||
| Temperature Range(℃) | RT+10-300℃ | |||||
| Temperature Fluctuation(℃) | ±1℃ | |||||
| Temperature Uniformity | ±2.5% | |||||
| Temperature Resolution(℃) | 0.1℃ | |||||
| Time Setting | 1~9999 mins | |||||
| Shelves | 2pcs | |||||
| Sensor | Pt100 | |||||
| Power Supply | AC220V±10%, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V±10%, 50/60Hz | ||||
| Power(W) | 800 | 1200 | 1600 | 2300 | 3000 | 5000 |
| Chamber Size (W×D×H)(mm) | 310x310x310 | 350x350x350 | 400x360x450 | 500x450x550 | 600x500x750 | 660x760x1250 |
| Size (W×D×H)(mm) | 440x510x675 | 500x550x735 | 550x550x840 | 636x680x915 | 730x670x1220 | 895x925x1830 |
| Shipping Size (W×D×H)(mm) | 590x550x850 | 640x605x820 | 650x640x960 | 750x740x1020 | 920x820x1370 | 1020x1100x2020 |
| N.W./G.W. (kg) | 39/50 | 42/60 | 47/51 | 56/75 | 70/110 | 90/170 |
Forced Air Drying Oven Features:
- The casing of the box is processed and formed from high-quality cold-rolled steel plates, and the surface is treated with electrostatic spraying technology, ensuring corrosion resistance and durability.
- The turbine centrifugal fan blades, with a unique combination of bottom blower and bottom heater, are equipped with vertical double air ducts for vertical hot air circulation, making the temperature distribution in the studio more uniform.
- The inner chamber is formed by high-quality mirror stainless steel processing, with four corners forming a semi circular transition surface treated with anti-corrosion technology. The spacing between partitions is adjustable, and the side plate of the air duct and the bottom heating cover have a quick disassembly structure, which is easy to clean.
- PID microcomputer intelligent temperature controller with timing and overtemperature alarm, precise temperature control, and convenient reading.
- Using a low noise blower.
- The box door with a new structure has good insulation effect, and is equipped with a double layer tempered glass large angle observation window in the middle. It is equipped with a lock type elastic adjustment door lock and a high-temperature resistant silicone sealing strip to ensure good sealing and prevent heat loss.
