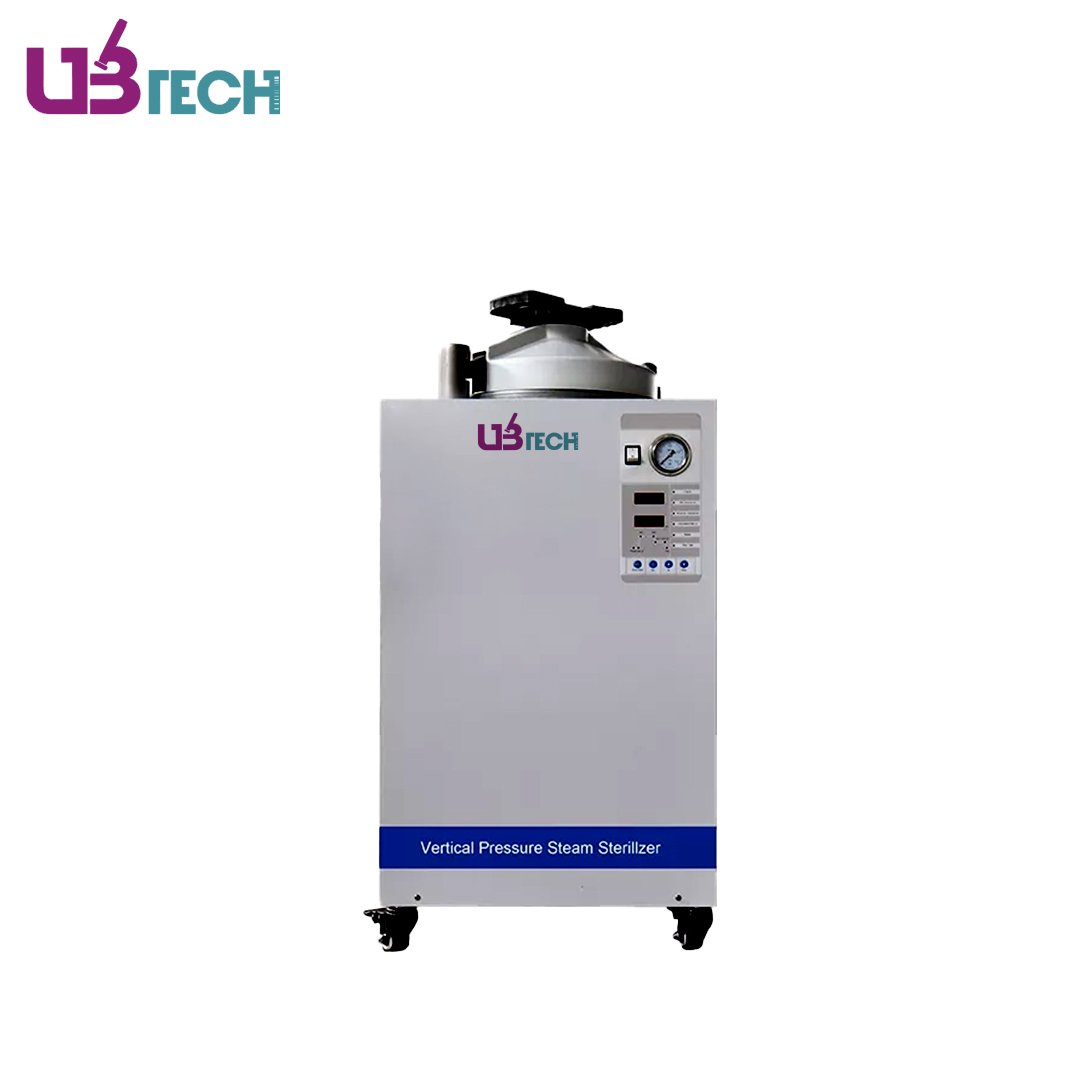

Economical Vertical Pressure Steam Sterilizer
Vertical Pressure Steam Sterilizer Specifications:
| Model | UST-V50E | UST-V80E | UST-V100E |
|---|---|---|---|
| Capacity | 50L | 80L | 100L |
| External Size (WxDxH)(mm) | 476x616x990 | 546x688x1030 | 566x708x1295 |
| Chamber Size (ØxH)(mm) | Ø316x667 | Ø386x695 | Ø400x800 |
| Chamber Material | SUS304 | ||
| Sterilization Temperature | 105~136 ℃ | ||
| Designed Temperature | 150℃ | ||
| Max.Working Temperature | 136 ℃ | ||
| Dissolution Temperature | 40~100℃ | ||
| Warming Temperature | 40~60℃ | ||
| Temp.Accuracy | 0.1℃ | ||
| Designed Pressure | 0.3 Mpa | ||
| Max.Sterilization Pressure | 0.23 Mpa | ||
| Sterilization Time Range | 0~99min | ||
| Temp. Controller | PID control by microprocessor | ||
| Display | LED display | ||
| Drying Function | YES | ||
| Drying Time | 15min | ||
| Sterilization Program | ●High temperature instrument program ●Low temperature instrument program ●Culture medium sterilization warming program ●Culture medium dissolution warming program | ||
| Water Injection Method | Manual | ||
| Power Consumption | 3KW | 4.5KW | 5.4KW |
| Power Supply | 220V 50Hz | 220V 50Hz | 220V 50Hz |
| Standard SS Basket | 2pcs | 2pcs | 2pcs |
| Net Weight | 55kg | 65kg | 80kg |
| Gross Weight | 90kg | 100kg | 120kg |
| Shipping Size (WxDxH)(mm) | 730x700x1250 | 800x770x1300 | 800x770x1480 |
Vertical Pressure Steam Sterilizer Features:
- Overheat protection: Automatically cutting off heating with audible and visual indication when the autoclave is overheated.
- Anti-burning protection: Automatically cutting off heating with audible and visual indication when the autoclave is lack of water.
- Interlock safety: Preventing from starting a cycle if door is not properly closed or from door opening if there is pressure inside chamber.
- Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
- Automatic operation of sterilization with PID microprocessor control and LED display.
- Positive pulsing function removes the air efficiently.
- Automatic air discharge control prevents boil over of liquids and explosions of bottles
- With Power-off memory function.
