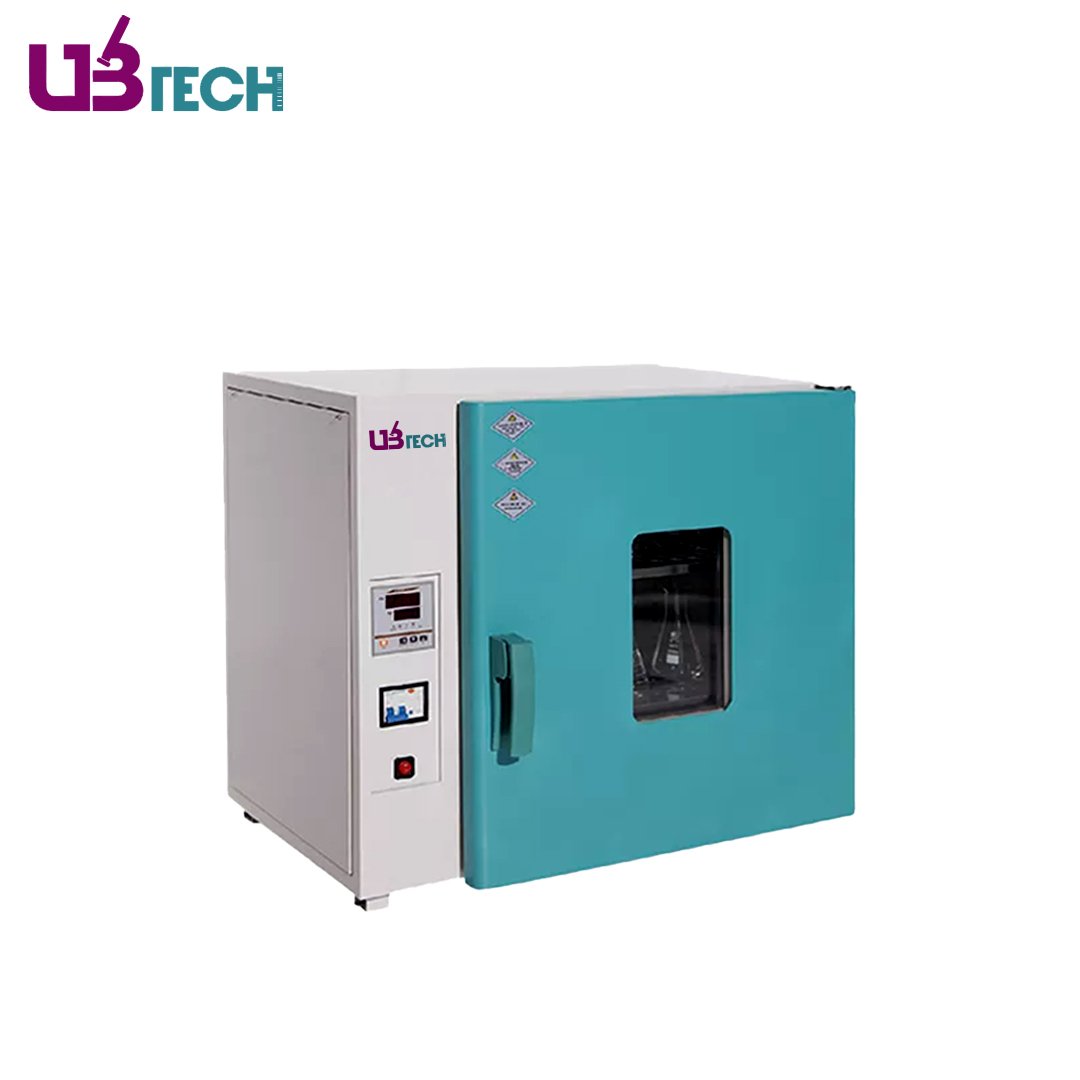

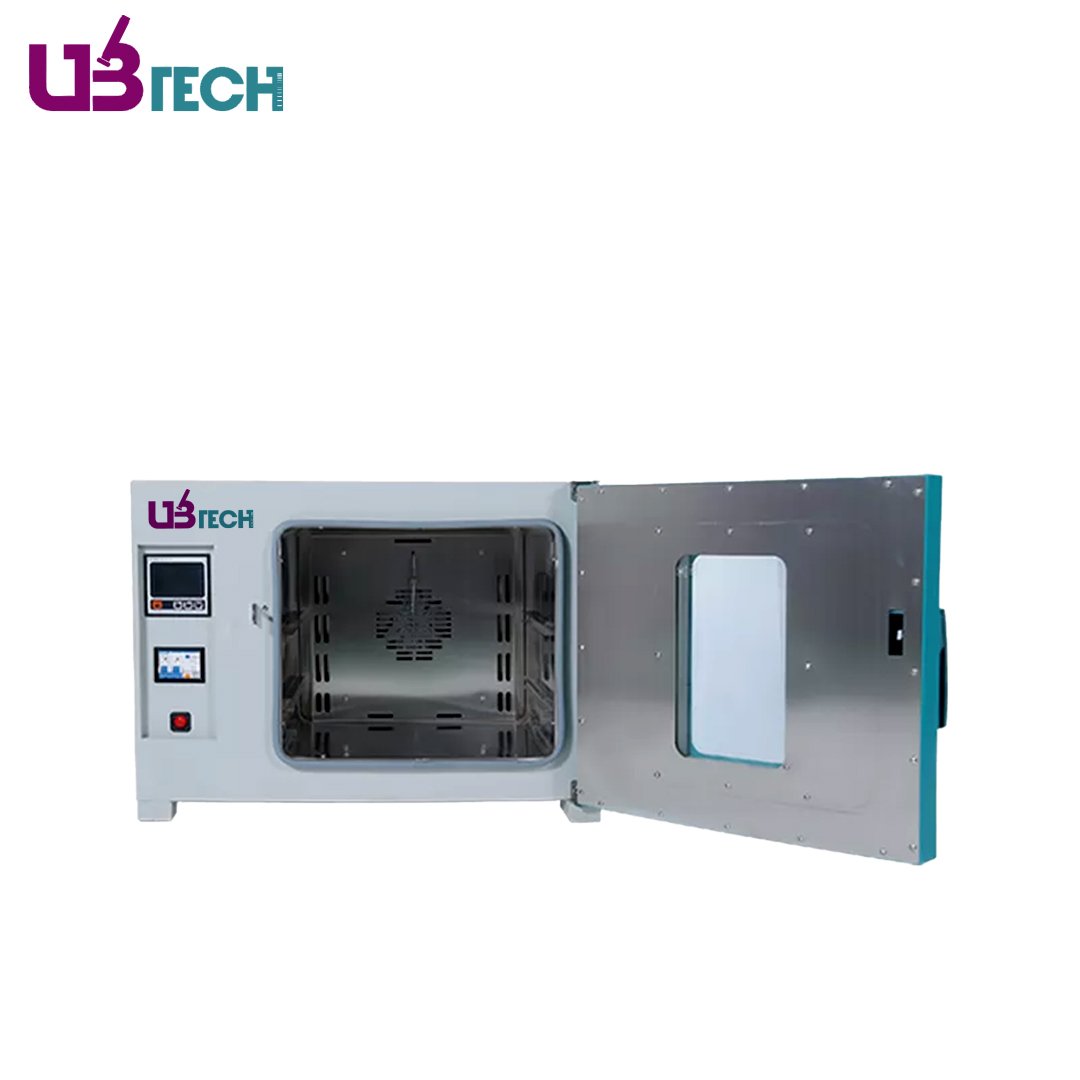

Hot Air Sterilizer UST-H Series
Hot Air Sterilizer Specifications:
Model | UST-H25A | UST-H50A | UST-H70A | UST-H100A | UST-H200A | |
Capacity(L) | 25 | 50 | 70 | 100 | 200 | |
Circulation | Forced air convection | |||||
Temperature | Range | RT+10-250℃ | ||||
Fluctuation | ±0.5℃ | |||||
Resolution | 0.1℃ | |||||
Uniformity | 0.25℃ | |||||
Sensor | PT100 | |||||
Controller | PID | |||||
Display | LCD | |||||
Timer(min) | 1-9999 | |||||
Material | Internal | Stainless steel | ||||
External | Electro-galvanized steel with antimicrobial powder coating | |||||
Shelves | 2 | |||||
Test Hole (mm) | Optional Ø25, 50, 80 | |||||
Safety Device | Leakage protector / Over- temperature alarm | |||||
Electricity | Voltage/ Frequency | 220V/50Hz | ||||
Consumption | 500W | 750W | 1050W | 1500W | 2000W | |
Size(WxDxH) | Internal (mm) | 300x300x270 | 420x350x350 | 400x375x470 | 550x350x520 | 600x550x570 |
External (mm) | 590x470x440 | 710x520x520 | 540x550x870 | 840x540x730 | 890x730x770 | |
Shipping Size (WxDxH) (mm) | 800x680x750 | 810x660x660 | 1050x680x660 | 1000x760x900 | 1020x900x950 | |
N.W./G.W. (kg) | 30/45 | 42/55 | 55/75 | 70/86 | 86/100 | |
Optional | 1.Independent temperature limiting controller | |||||
2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer) |
Hot Air Sterilizer Features:
- Automatic parameter adjustment: Control parameters are automatically adjusted based on ambient temperature and load for optimal heating and reduced energy consumption.
- High efficiency compressor ensures stable temperature control with low power consumption.
- Large-screen LCD display provides real-time parameter monitoring, with a self-locking function for easy operation.
- Hot air sterilizer equipped with a high-quality fan and large impeller, the incubator achieves higher ventilation efficiency and improved temperature uniformity.
- Back suction and bottom vertical air supply system ensures effective circulation within the chamber.
- The shelf can be freely adjusted up and down, with a minimum spacing of 30mm, allowing for flexible sample placement.
- A built-in observation window allows for clear visibility of objects inside the chamber.
- Door handle incorporates an anti-scalding design for easy and safe operation.
- Hot air sterilizer is equipped with a leakage protection device and a temperature control sound and light alarm system for operator and equipment safety.
