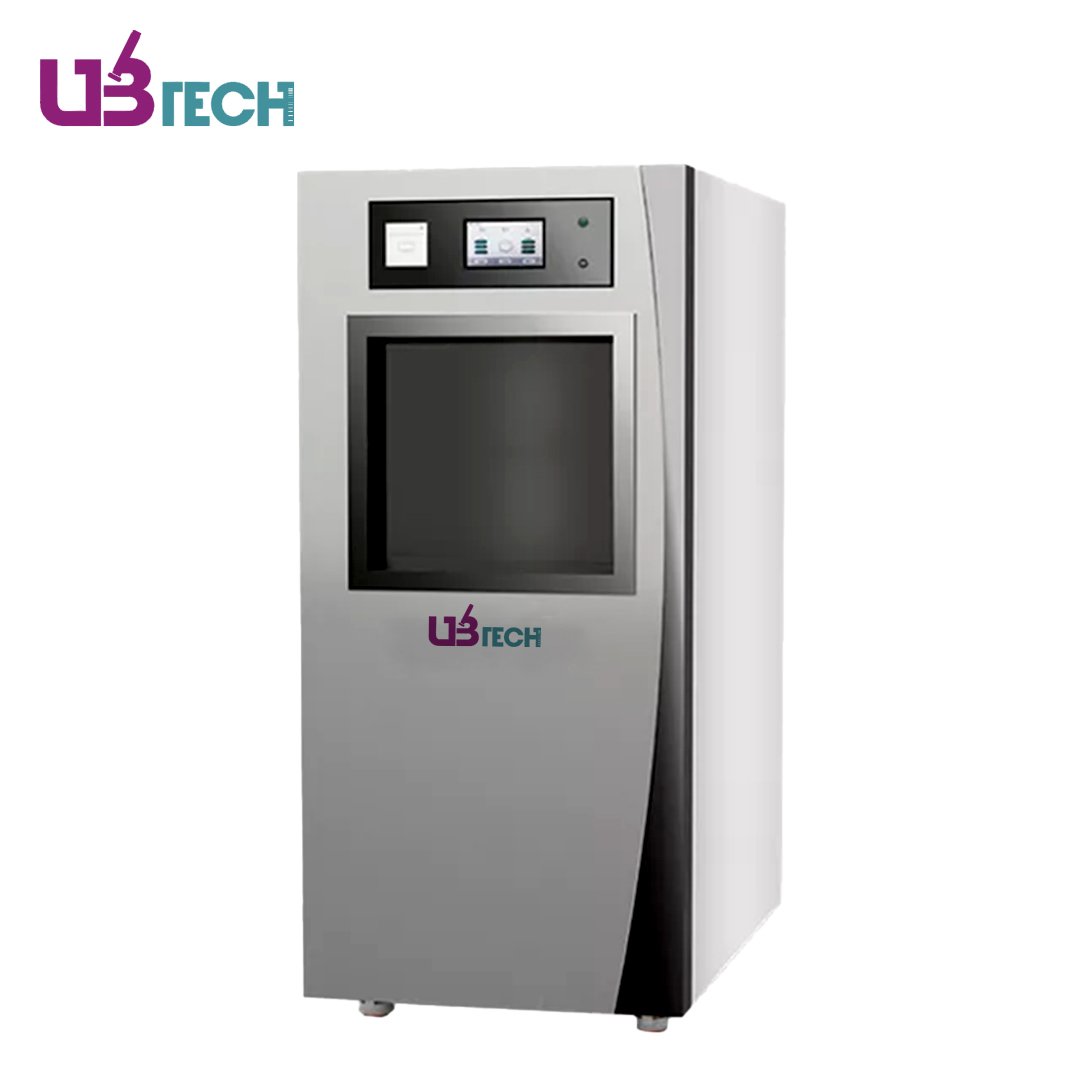

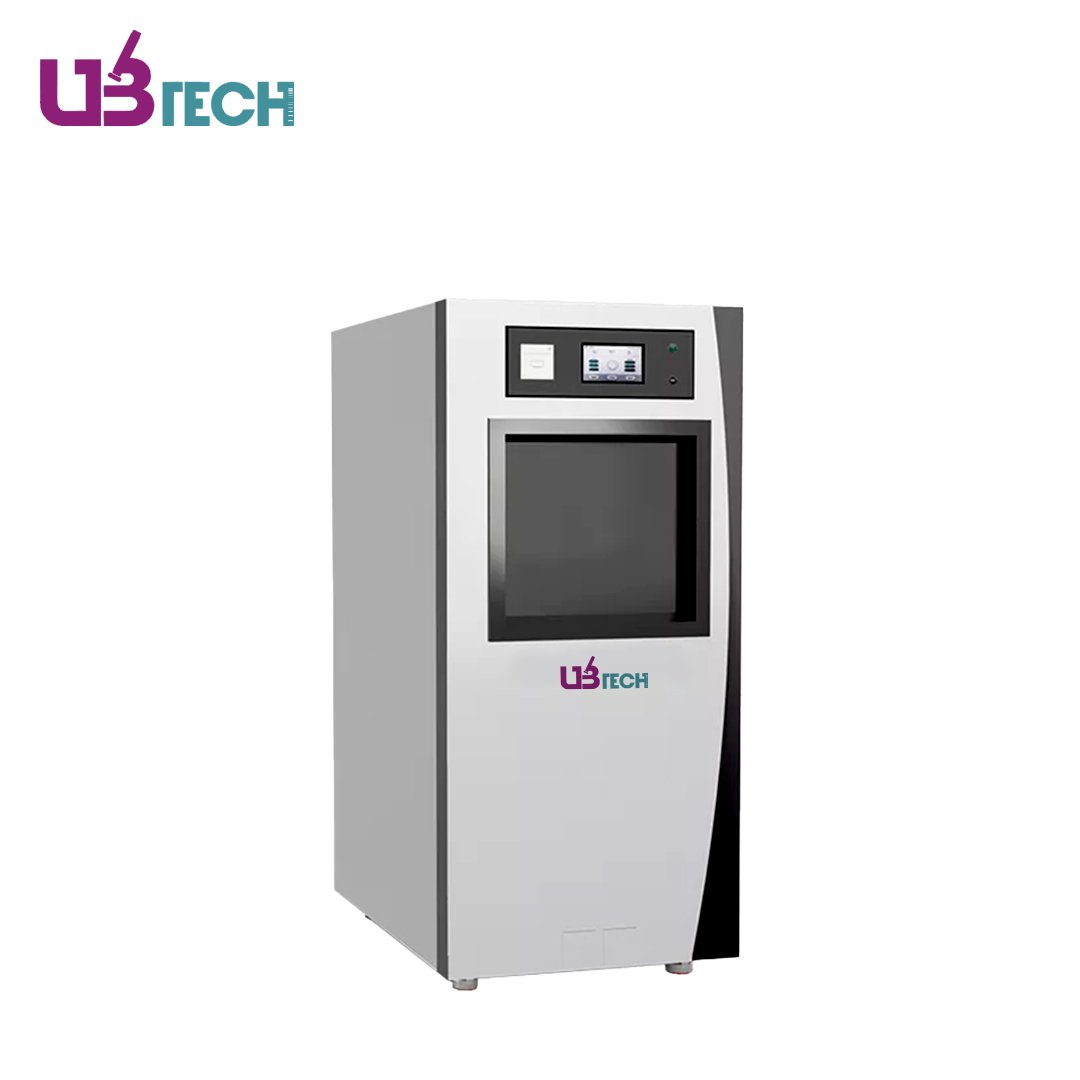

Hydrogen Peroxide Low Temperature Plasma Sterilizer(Plasma Sterilant Solution)
H₂O₂ Plasma Sterilizer Specifications:
| Model | UST-HT100PI | UST-HT140P | UST-HT190P |
|---|---|---|---|
| Chamber Volume | 100L | 135L | 190L |
| Construction | 5052 Aluminium | ||
| Processing Temperature | 45-55°C | ||
| Control System | Siemens PLC | ||
| Display | 7 inch Touch Screen | ||
| Printer | Thermal Printer | ||
| Touch Screen Functions | Phase Temperature Date and time Cycle Selected Alert message | ||
| Data Storage | Memory Card | ||
| Total Cycle Time | Short cycle 30 minutes, long cycle 50 minutes, lumen cycle 60 minutes | ||
| Noise | < 60 db | ||
| Door | Automatic | ||
| Alarm | Door Lock Dosing failure Low / High Temp. range Vacuum & Pressure | ||
| Consumption | 3.4KW | 3.5KW | 4.3KW |
| Power Supply | 220V, 50Hz | ||
| Internal Size (WxDxH)(mm) | 700x430x360 | 750x450x400 | 820x510x460 |
| External Size (WxDxH)(mm) | 1067x790x1782 | ||
| Shipping Size (WxDxH)(mm) | 1270x920x1940 | ||
| N.W./G.W.(kg) | 301/350 | 308/340 | 341/372 |
H₂O₂ Low Temperature Plasma Sterilizer Advantage:
- Low temperature sterilization, preserving delicate items without damage.
- Green and pollution-free process using hydrogen peroxide solution, no toxic substances or pollution.
- Stable sterilization with balanced temperature and stable hydrogen peroxide concentration.
- Efficient design with rectangular sterilization chamber for increased loading capacity.
- Safe and stable operation with electric lift door and safety interlock device.
- Simple operation with intelligent control processor and one-key start.
- Configured with high-quality components for reliable performance.
- Time and cost-saving with short sterilization cycle and low operating costs.
- Equipped with sterile filter for air inlet to prevent secondary pollution.
- U disk storage function for storing and recording sterilization data.
H₂O₂ Plasma Sterilizer Features:
●High-quality 5052 aluminum material for sterilization room, with excellent thermal conductivity.
●ABS plastic disposable outer box material.
●Aluminum alloy electrode mesh and sealing door material.
●Upper and lower layers of aluminum alloy punching plates for loading sterilized items.
●Electric lifting door with infrared sensor switch and door anti-pinch function.
●Preheating heating time of ≤30 minutes.
●Full automatic control system with LCD touch screen display and PLC circuit design.
●Micro-printer for printing and saving data during sterilization.
●Siemens smart series PLC control system.
●7-inch color touch screen display with various status information.
●Storage function for recording sterilization data.
●Built-in pressure and temperature sensors for precise control.
●Two program options for circulation and rapid circulation.
●Network connection port available.
●Vacuum system with fast vacuum rate and long service life.
●Oil mist filter and air filter for exhaust filtration.
●Transistor control power supply for stable power output.
●Cartridge filling method for hydrogen peroxide.
●Explosion-proof flame retardant heating system.
●Over-voltage and over-temperature protection functions
