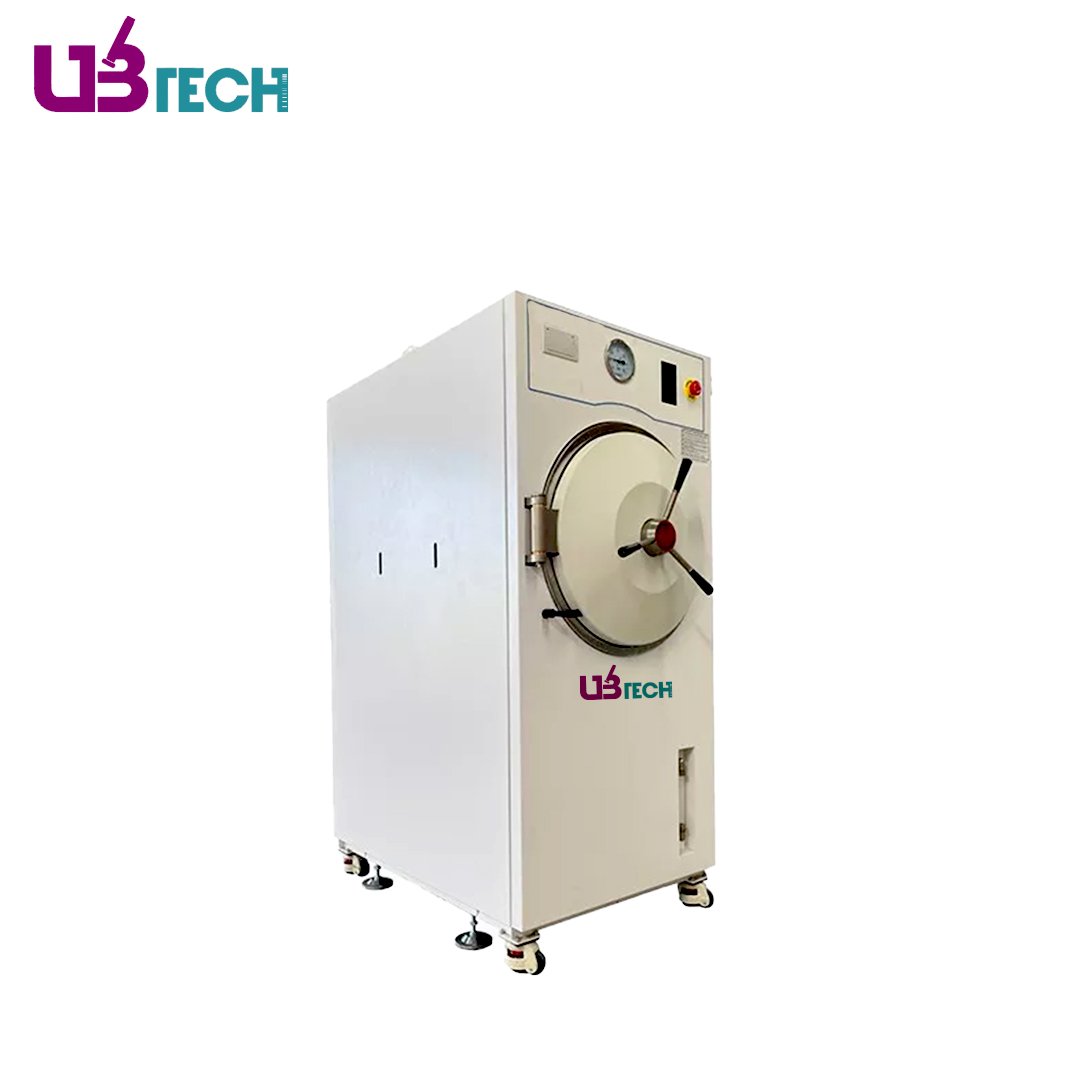

Horizontal Pressure Steam Autoclave
Horizontal Pressure Steam Autoclave Specifications:
Model | UST-H60 | UST-H80 | UST-H100 | UST-H135 | UST-H150 | UST-H185 | UST-H200 | UST-H300 | UST-H450 |
Capacity | 60L | 80L | 100L | 135L | 150L | 185L | 200L | 300L | 450L |
External Size (WxDxH)(mm) | 985x600x1450 | 985x600x1450 | 1200x600x1450 | 1000x710x1550 | 1330x710x1550 | 1250x710x1550 | 1320x710x1550 | 1350x900x1750 | 1750x900x1750 |
Chamber Size (ØxH)(mm) | Ø386x500 | Ø386x700 | Ø386x950 | Ø500x700 | Ø500x780 | Ø500x950 | Ø500x1000 | Ø650x950 | Ø650x1360 |
Chamber Material | SUS304 | ||||||||
Sterilization Temperature | 105~136 ℃ | ||||||||
Designed Temperature | 150℃ | ||||||||
Max.Working Temperature | 136 ℃ | ||||||||
Temp.Accuracy | 0.1℃ | ||||||||
Temp.Uniformity | ≤±0.5℃ | ||||||||
Designed Pressure | 0.3Mpa | ||||||||
Sterilization Pressure | 0.23Mpa | ||||||||
Temp. Controller | PID control by microprocessor | ||||||||
Display | LCD touch screen | ||||||||
Drying Function | YES | ||||||||
Drying Time | 15min | ||||||||
Sterilization Program | ●Dressings/Fabric program ●Medical instrument program ●Rubber program ●Liquid program ●DIY program | ||||||||
Power Consumption | 5.7KW | 5.7KW | 6KW | 9.35KW | 9.35KW | 10.8KW | 10.8KW | 12KW | 20KW |
Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
Standard Sterilization Shelf | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs |
Optional Accessories | Printer | ||||||||
Net Weight | 105kg | 120kg | 140kg | 225kg | 240kg | 255kg | 265kg | 350kg | 450kg |
Gross Weight | 165kg | 185kg | 210kg | 315kg | 340kg | 365kg | 380kg | 470kg | 570kg |
Shipping Size (WxDxH)(mm) | 1280x700x1600 | 1280x700x1600 | 1450x700x1600 | 1300x850x1900 | 1400x900x1900 | 1440x930x2020 | 1490x930x2020 | 1650x1100x2120 | 2100x1100x2120 |
Horizontal Pressure Steam Autoclave Features:
- Overheat protection: Automatically cutting off heating with audible and visual alarming when the autoclave is overheated.
- Electric interlock safety: Preventing from starting a cycle if door is not properly locked or from door opening if the chamber is pressurized or the power is disconnected.
- Door-temperature interlock safety: Preventing from explosion of liquids if the liquids temperature is not cooled down the safe limit (20℃ lower than the local boiling point).
- Anti-burning protection: Automatically cutting off heating with audible and visual alarming when the autoclave is lack of water.
- Steam pressure safety valve: Automatically works when the chamber pressure exceeds the limit.
- Electrical circuit safety device for over-current and shortcut protection.
- Automatic operation of sterilization (heating, sterilization, steam discharge and drying) can be easily set and monitored by the LCD touch screen.
- Built-in steam generator prevents the media from contamination.
- Buzzer for working errors and the end of the cycle.
- Automatic atmospheric pressure adjustment for the installation and operation in plateau areas.
- Optional printer, real-time record sterilization process, error and alarm information.
