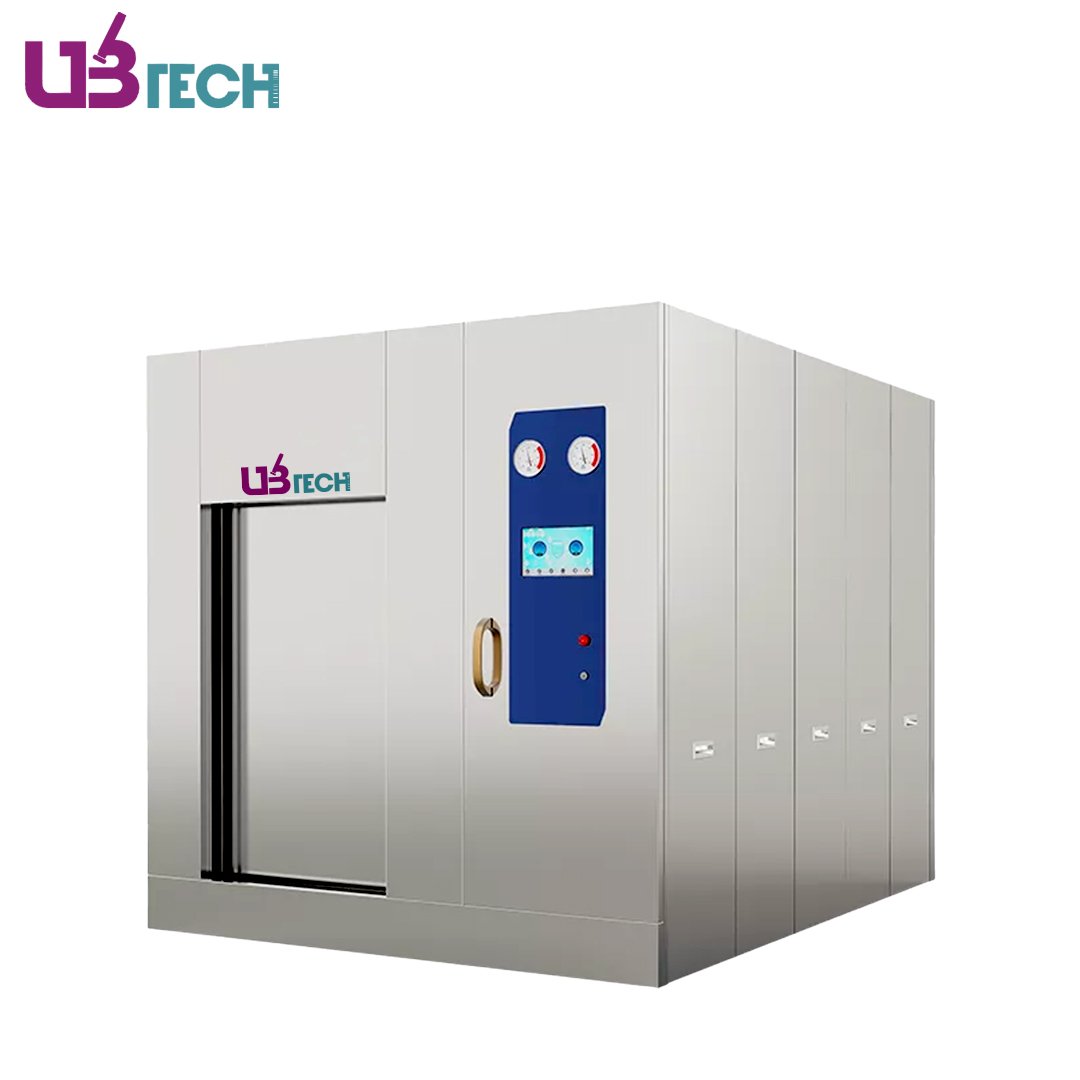

Horizontal Pulse Vacuum Autoclave Sliding Door
Horizontal Pulse Vacuum Autoclave Specifications:
Model | UST-BVH1200PV | UST-BVH1500PV | UST-BVH2000PV | UST-BVH2500PV | UST-BVH3000PV | UST-BVH6000PV | UST-BVH6700PV | UST-BVH13600PV |
---|---|---|---|---|---|---|---|---|
Capacity (L) | 1200 | 1500 | 2000 | 2500 | 3000 | 6000 | 6700 | 13600 |
Interior Design Pressure | -0.1~03MPa | |||||||
Jacket Design Pressure | 0.3MPa | |||||||
Design Temperature | 150℃ | |||||||
Max Working Temperature | 139℃ | |||||||
Max Working Pressure | 0.25MPa | |||||||
Vacuum Leakage Rate | ≤0.13KPa/min | |||||||
Final Vacuum | -96KPa | |||||||
Opening Pressure of the Inner Chamber Safety Valve | 0.28MPa | |||||||
Jacket Safety Valve Opening Pressure | 0.28MPa | |||||||
Sterilization Temperature Control Precision | 0-2℃ | |||||||
Temperature Uniformity | ±0.5℃ | |||||||
Negative Pressure Pulsating Vacuum Negative Value and Number | Amplitude -80~0KPa, frequency 1~99 | |||||||
Number of Pulsations Across Pressure | Amplitude -80 ~80KPa, frequency 1 | |||||||
Number of Positive Pressure Pulsations | 1~3 | |||||||
Inner Tank Size (WxH) (mm) | 680x1180 | 680x1180 | 900x1380 | 900x1380 | 900x1380 | 900x1380 | 1250x1380 | 1250x1380 |
Depth | 1500 | 1800 | 1620 | 2020 | 2400 | 4800 | 3910 | 7850 |
Overall Size (LxWxH) (mm) | 2007x2710x2173 | 2357x2110x2713 | 1950x2750x2200 | 2300x2750x2200 | 2700x2750x2200 | 5400x2750x2200 | 5400x3200x2200 | 8500x3200x2200 |
Weight (kg) | 2300 | 2450 | 3000 | 3600 | 3800 | 6600 | 7000 | 11000 |
Gas Consumption (Kg/c) | 65 | 80 | 100 | 120 | 150 | 320 | 350 | 620 |
Water Consumption (Kg/c) | 600 | 750 | 900 | 1100 | 1300 | 2400 | 2600 | 4800 |
Power Supply | 380V,50Hz | 380V,50Hz | 380V,50Hz | 380V,50Hz | 380V,50Hz | 380V,50Hz | 380V,50Hz | 380V,50Hz |
Consumption | 3.5kw+(73kw) | 3.5kw+(90kw) | 4.5kw | 6kw | 8kw | 12kw | 12kw | 24kw |
Horizontal Pulse Vacuum Autoclave Features:
- Translation door, with anti-pinch hand function. Vacuum sterilizer also adopts a double-door channel design, which is not only equipped with a powerful pressure safety interlock function but also a temperature safety interlock on the liquid process door to guarantee the safety of operation in all aspects.
- The high-efficiency design of the automatic sealing ring makes its sealing effect outstanding. The service life is up to 1500 times, providing users with long-lasting and stable performance.
- The main structure is european ring reinforcement jacket structure, programmable controller PLC, color touch screen.
- Provides a wealth of customized procedures, covering aseptic clothing, utensils, rubber, liquids, media, waste, sterilization, and many other areas, but also includes BD test, vacuum leakage test, and other professional test procedures to meet the needs of different areas.
- Vacuum autoclave has a built-in micro-needle printer and a paperless recorder to make recording and tracking more convenient.
- Automatic drainage device, optional jacket automatic control drainage device, the inner chamber are installed automatic control drainage device, automatic detection jacket and inner chamber temperature pressure automatic drainage, to ensure the saturation of steam.
- Intelligent maintenance system: Optional remote monitoring and maintenance module; Water saving noise reduction system is optional
- With drainage temperature automatic adjustment system, drainage temperature ≤55°C.
