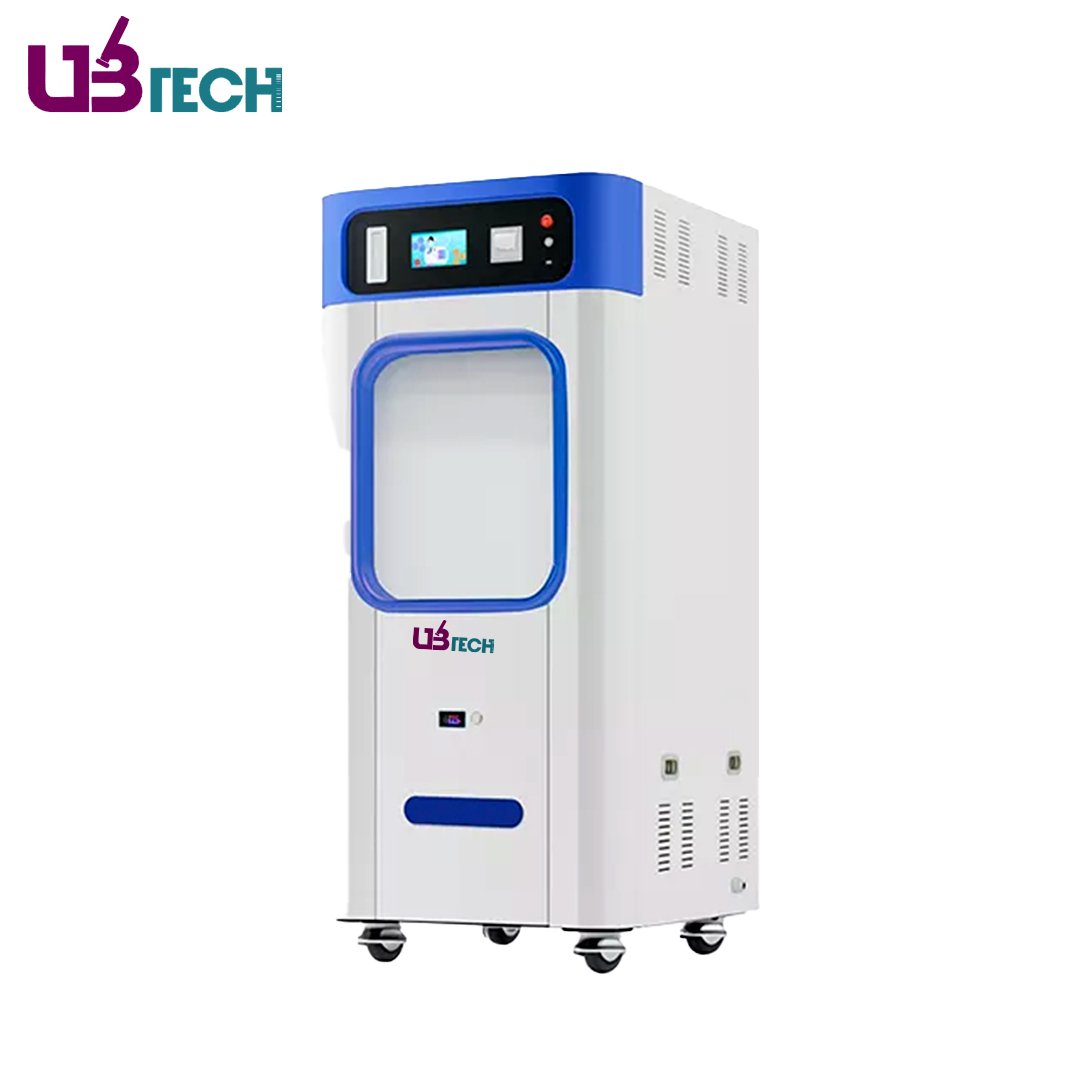

Hydrogen Peroxide Low Temperature Plasma Sterilizer(Plasma Sterilant Cassette)
Low Temp H₂O₂ Plasma Sterilizer Specifications:
Model | UST-HT60P | UST-HT100P | UST-HT130P | UST-HT220P |
---|---|---|---|---|
Capacity | 60L | 108L | 135L | 192L |
Door Type | Manual door | Automatic door vertical | ||
Heating Method | Electric heating | |||
Working Temperature | 45~60℃ | |||
Select Sterilizer | 58%-60% hydrogen peroxide (H2O2) | |||
Sterilization Time | 35~55minutes | |||
Total Cycle Time | Short cycle 30 minutes, long cycle 50 minutes, lumen cycle 60 minutes | |||
Installation Environment | 10-40℃ | |||
Temperature Display | LCD touch screen | |||
Max Anti-stree Value | 10pa | |||
Operation Height | ≤160cm | |||
Power Supply | AC220V, 50Hz | |||
Consumption | 2.6KW | 3.5KW | 4.2KW | 4.8KW |
Internal Size(WxDxH)(mm) | 610x350x320 | 700x420x360 | 750x440x400 | 820x510x460 |
External Size(WxDxH)(mm) | 750x630x1495 | 1120x790x1770 | ||
Shipping Size(WxDxH)(mm) | 820x750x1615 | 1300x950x1950 | ||
N.W./G.W.(kg) | 185/210 | 265/320 | 272/325 | 305/360 |
Hydrogen Peroxide Gas Plasma Sterilization Technical Features:
- Low temperature sterilization, preserving delicate items without damage.
- Green and pollution-free process using hydrogen peroxide solution, no toxic substances or pollution.
- Stable sterilization with balanced temperature and stable hydrogen peroxide concentration.
- Efficient design with rectangular sterilization chamber for increased loading capacity.
- Safe and stable operation with electric lift door and safety interlock device.
- Simple operation with intelligent control processor and one-key start.
- Configured with high-quality components for reliable performance.
- Time and cost-saving with short sterilization cycle and low operating costs.
- Equipped with sterile filter for air inlet to prevent secondary pollution.
- U disk storage function for storing and recording sterilization data.
