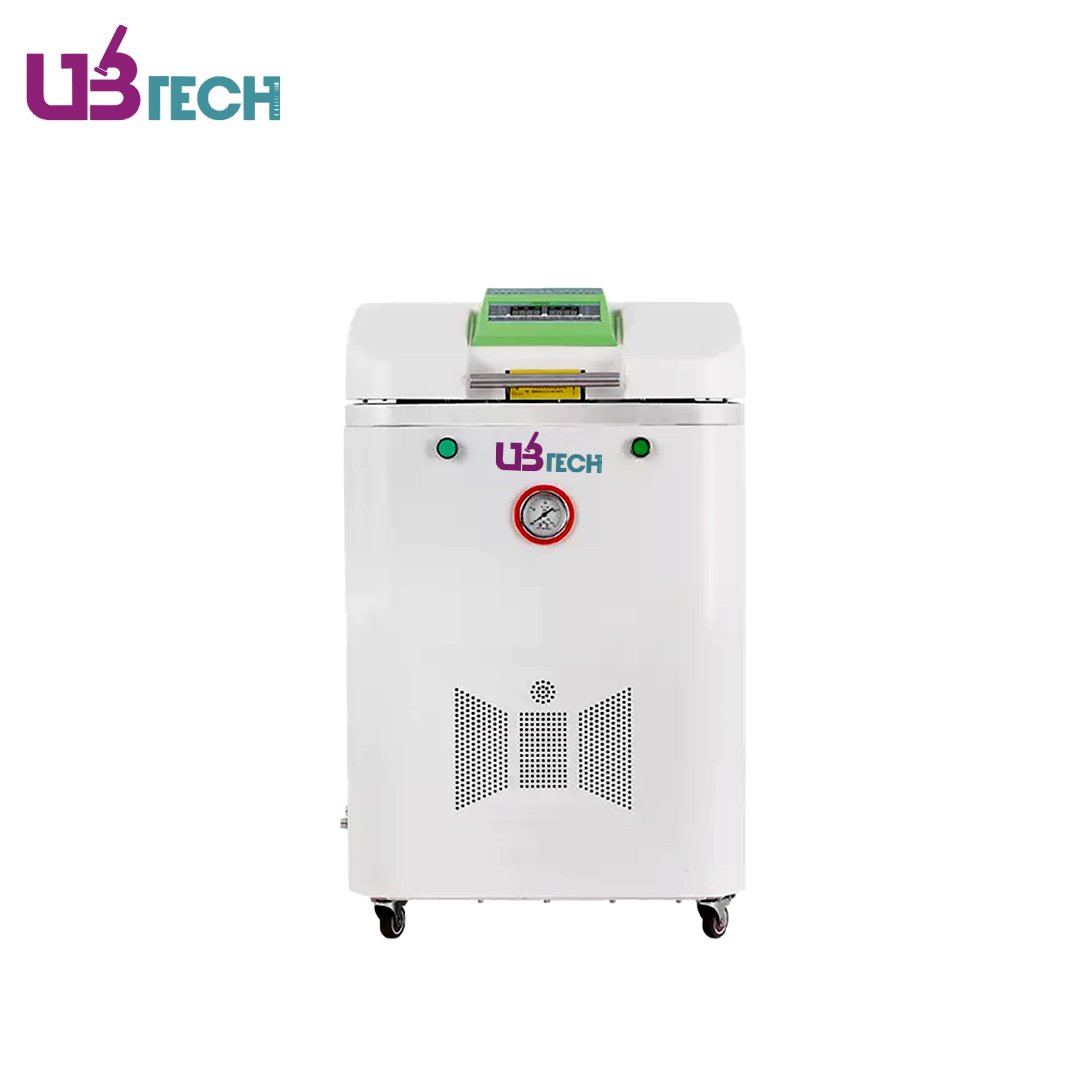

Vertical Pressure Steam Autoclave, UST-VL Series
Vertical Pressure Steam Autoclave Specifications:
| Model | UST-VL65 | UST-VL80 | UST-VL90 | UST-VL110 |
|---|---|---|---|---|
| Capacity | 62L | 80L | 88L | 110L |
| External Size(WxLxH)(mm) | 550×640×900 | 550×640×1150 | ||
| Internal Size | φ365×484H | φ414×484H | φ365×734H | φ414×734H |
| Chamber Material | SUS304 Stainless steel | |||
| Power Supply | AC 220V 50Hz 16A | |||
| Consumption | 4000W | |||
| Sterilization Temperature/Time | 115-138°C Continuously adjustable, 0-9999 minute countdown display | |||
| Dissolution Temperature/Time | 60-100°C continuously adjustable/0-9999 minutes countdown display | |||
| Holding Temperature/Time Preset Range | 45-80°C adjustable/300 minutes | |||
| Unlock Temperature | 60-95°C can be set (default 80°C) | |||
| Verification Interface | Reserved pressure and temperature pipe thread verification interface | |||
| Temp. Controller | Using PT100AA^ temperature sensor, with a resolution of 0.1 | |||
| Appointment Feature | Advanced booking for any time within the next year | |||
| Pressure | 0.26Mpa | |||
| Standard Accessory | Mesh basket or tote bag, gloves, and drain hose. | |||
| N.W./G.W. (kg) | 72/102 | 82/112 | 85/115 | 95/125 |
| Package Size(WxLxH)(mm) | 650×740×1050 | 650×740×1250 | ||
Optional Accessory:
- Large capacity water tank with automatic water replenishment, fully automatic internal circulation.
- Thermosensitive or needle-type miniature printer or recorder.
- USB data storage device for recording sterilization cycles and sterilization data.
- Threaded sealing interface for 3Q validation.
- JUMO mobile probe.
- High-efficiency filtration device.
Control Feature:
- Microcomputer fully automated control sterilization process
- The status flowchart displays the current sterilization process, allowing for easy visual access to the current running steps at any time
- Multiple Sterilization Modes
- With liquid, solid, agar, instruments, etc.More than five sterilization modes, expandable memory store 80 sterilization programs
Mechanical Feature:
- Vertical Flip Cover Structure
- Easy to open, and automatic locking upon downward pressure, with lock status determined based on indicator light prompts.
- Electromagnetic suction type 6/8 claw mechanical interlock.
- Electromagnetic suction type 6/8 claw mechanical interlock, with 6/8 claws installed on the top cover. The sealing rubber strip is evenly stressed, ensuring a secure and reliable seal. The operating surface is clean, providing a smooth loading and unloading experience without any obstacles.
- Dovetail type sealing groove
- Dovetail type sealing groove, self-expanding medical grade silicone molded sealing ring, corrosion-resistant and high-temperature resistant, can prevent accidents caused by high-temperature opening operations, providing a safer and more secure seal.
- Dual air convection rapid cooling fan
- Dual air convection rapid cooling fan, automatically activates after default sterilization for temperature reduction, adjustable cooling lid opening temperature, lid cannot be opened if temperature is not reached.
- Multi-stage exhaust
- Built-in steam collection box, utilizing multi-stage exhaust, without impacting the surrounding environment.
