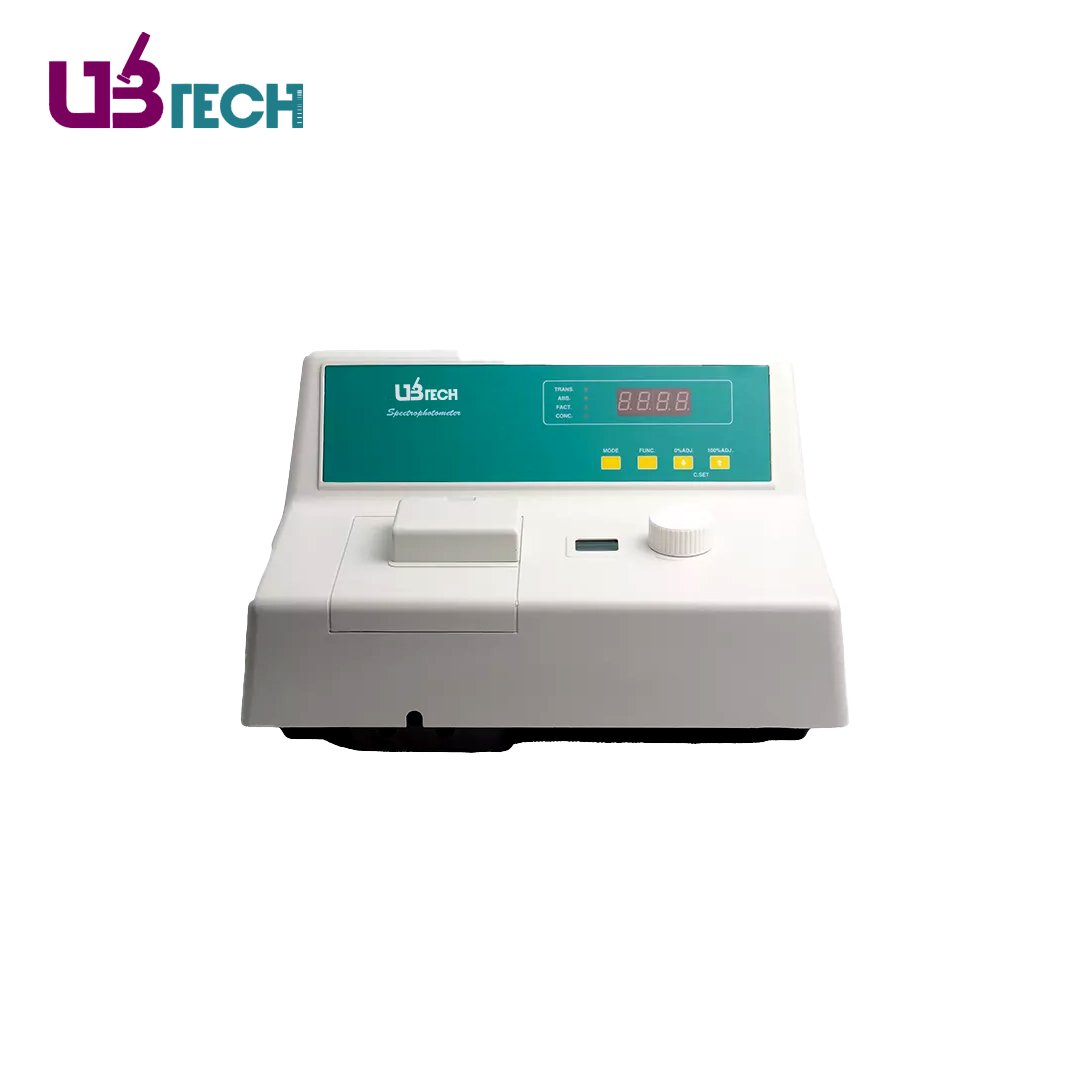

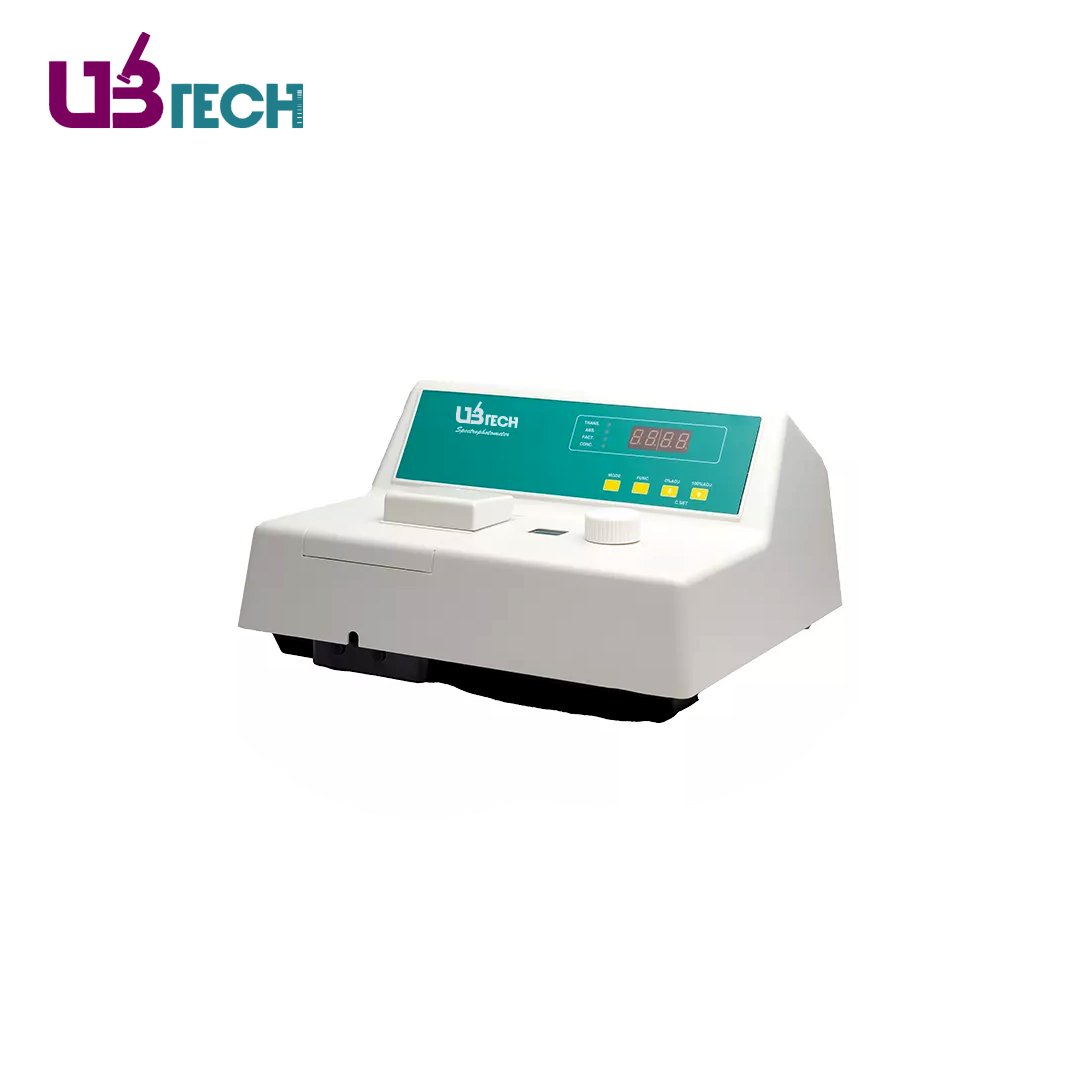

Affordable Visible Spectrophotometer
Visible Spectrophotometer Specifications:
| Model | USP-VS23 |
|---|---|
| Standard | Enterprise Standard, Q/SEEK3 |
| Display Mode | 4 digits LED |
| Wavelength Range | 340-950nm |
| Wavelength Accuracy | ±2.5nm |
| Wavelength Repeatability | ≤1nm |
| Spectral Slit Width | 12nm |
| Photometry Accuracy | ±2%(T) (tube), ±0.5%(T) (cuvette) |
| Photometry Repeatability | 0.3%τ |
| Voltage Requirements | 220V±10% or 110V±10% |
| Photometry Range | 0.0~199.9%(T), -0.3~2.999 A, 1~9999 F, 0~9999 C |
| Interface | RS232 serial & parallel interface |
| Serial printer, Any printer (for software) | |
| Complete Set | A set:USP-VS23 |
| B set: SP-VS23+Data processing software package | |
| Size(W×D×H)(mm) | 450×420×280 |
| Shipping Size(W×D×H)(mm) | 460x430x320 |
| N.W./G.W. (kg) | 6/10 |
It is low-priced, highly reliable, and easy to operate. It is very suitable for education, environmental protection and other fields.
The visible spectrophotometer has a variable wavelength and four scales: Absorbance, Concentration, Transmittance and Coefficient.
Use cuvettes or universal test tubes to make measurements directly.
A microcomputer controls the instrument and is easy to operate.
12nm spectral slit width provides the sensitivity required for almost any application.
One solid-state silicon detector covers the entire wavelength range, eliminating the need to change detectors between analyses.
Instrument units, especially the pre-conditioned light source unit, are easy to replace and maintain.
Cartridge replacement is freely adjustable.
Optical system with grating and toroidal mirrors.
