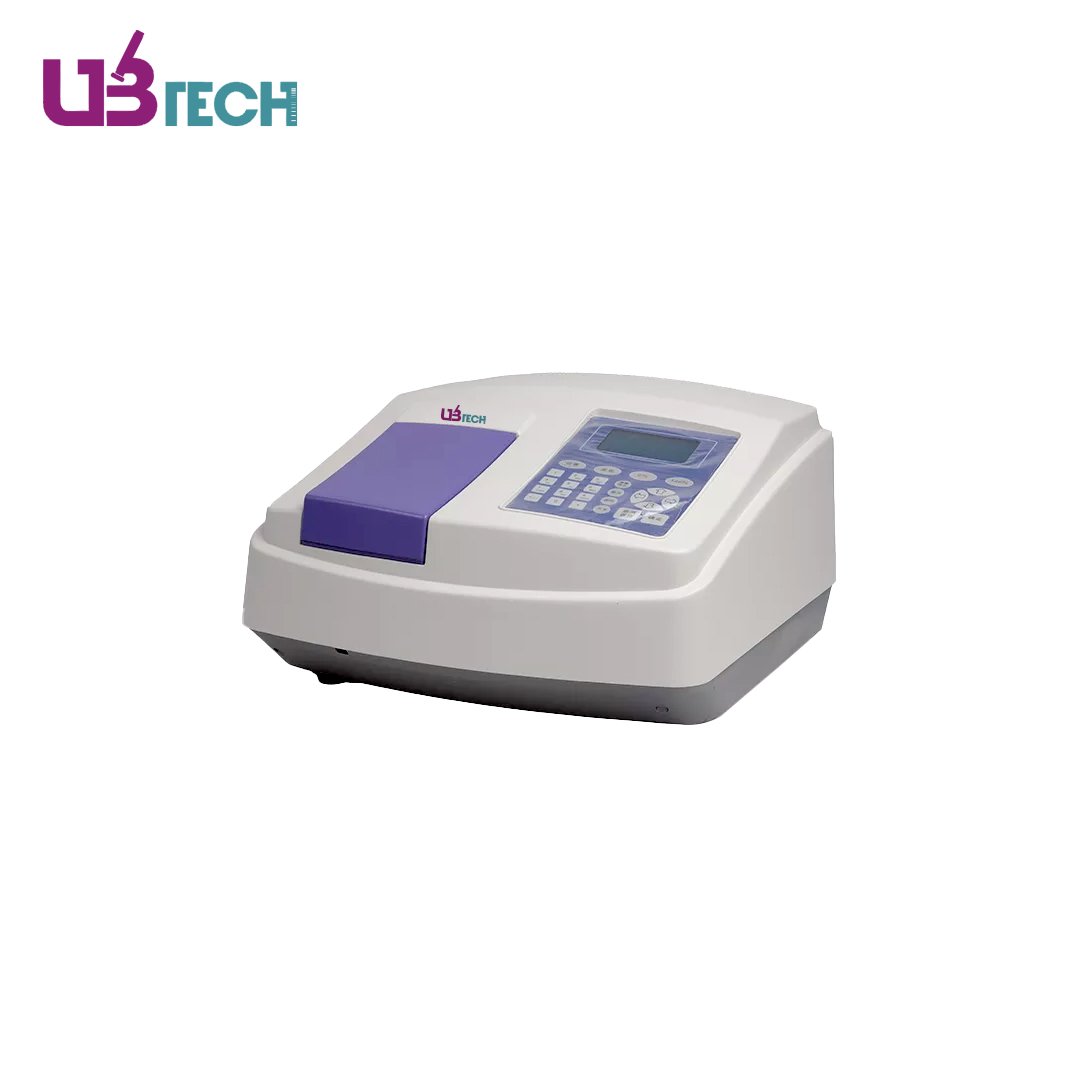

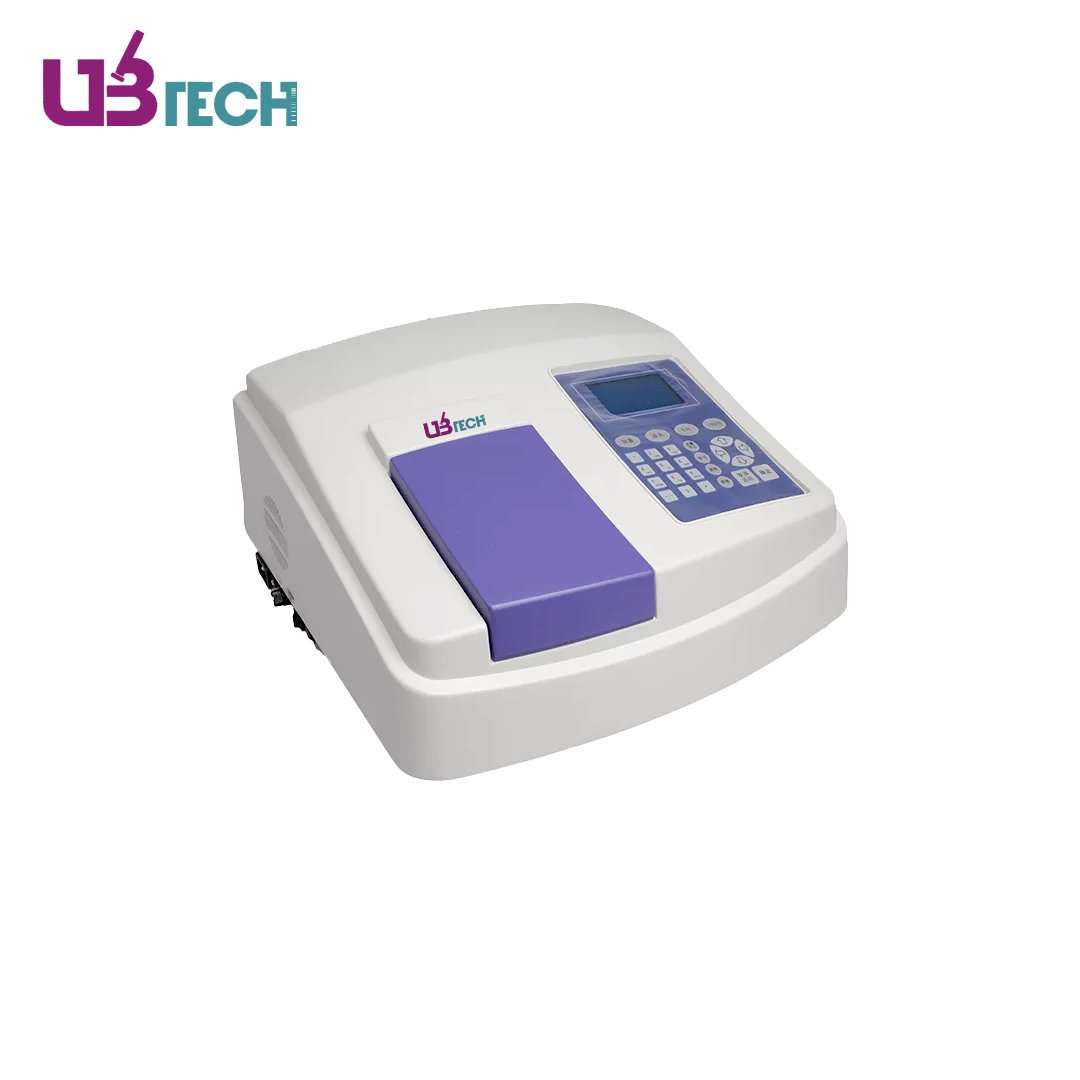

UV Vis Spectrophotometer With Automatic Cuvette
UV Vis Spectrophotometer Specifications:
Model | USP-UV759 |
---|---|
Optical System | Single Beam |
Light Source | Hamamatzu deuterium lamp, osram halogen tungsten lamp |
Wavelength Range | 190nm~1100nm |
Wavelength Accuracy | ±0.5nm |
Wavelength Repeatability | ≤0.2nm |
Bandwidth | 2nm |
Photometry Accuracy | ±0.3%T |
Photometry Repeatability | ≤0.15%T |
Stray Light | ≤0.05%T (220nm, NaI) |
Baseline Flatness | ±0.002A |
Stability | ≤0.0008A |
Noise | ≤0.3%T(100%T), ≤0.1%T(0%T) |
Photometry Range | 0.0-200%(T), -0.3-4(A) |
Display System | 128x64 LCD |
Functional Port | USB-A(U Disk), USB-B(PC), Serial Port(Printer) |
Power | AC90V-250V, 50H/ 60Hz |
Size(W×D×H)(mm) | 370x357x220 |
Shipping Size(W×D×H)(mm) | 460x440x330 |
N.W./G.W. (kg) | 8/12 |
Long life of the light source and stray light is less than 0.05% to meet customers' needs testing high absorbance samples.
Wide wavelength range to meet the needs of most UV vis spectrophotometric tests.
Capture the instantaneous spectral changes to improve work efficiency.
The automatic uv spectrophotometer cuvette matching function greatly reduces the bias generated during quantitative measurement.
High optical accuracy ensures that the measurement of the optical path meets the design requirements.
Flash disk storage allows users to manage data in Excel and other formats.
The UV Vis spectrophotometer is equipped with a USB port, there is no need to set any parameters to realize online communication.
A variety of offline quantitative measurement functions
128x64 large-screen LCD
