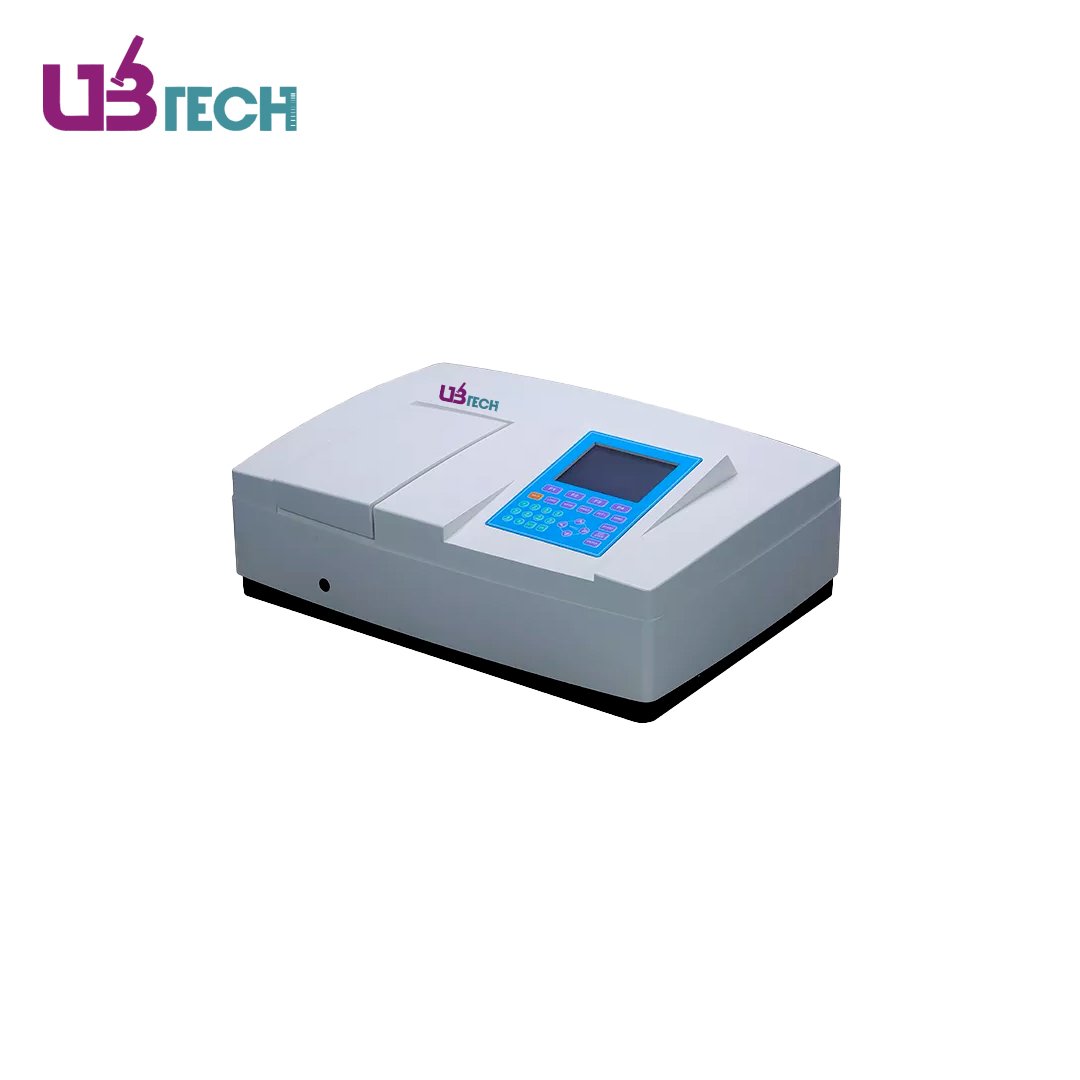

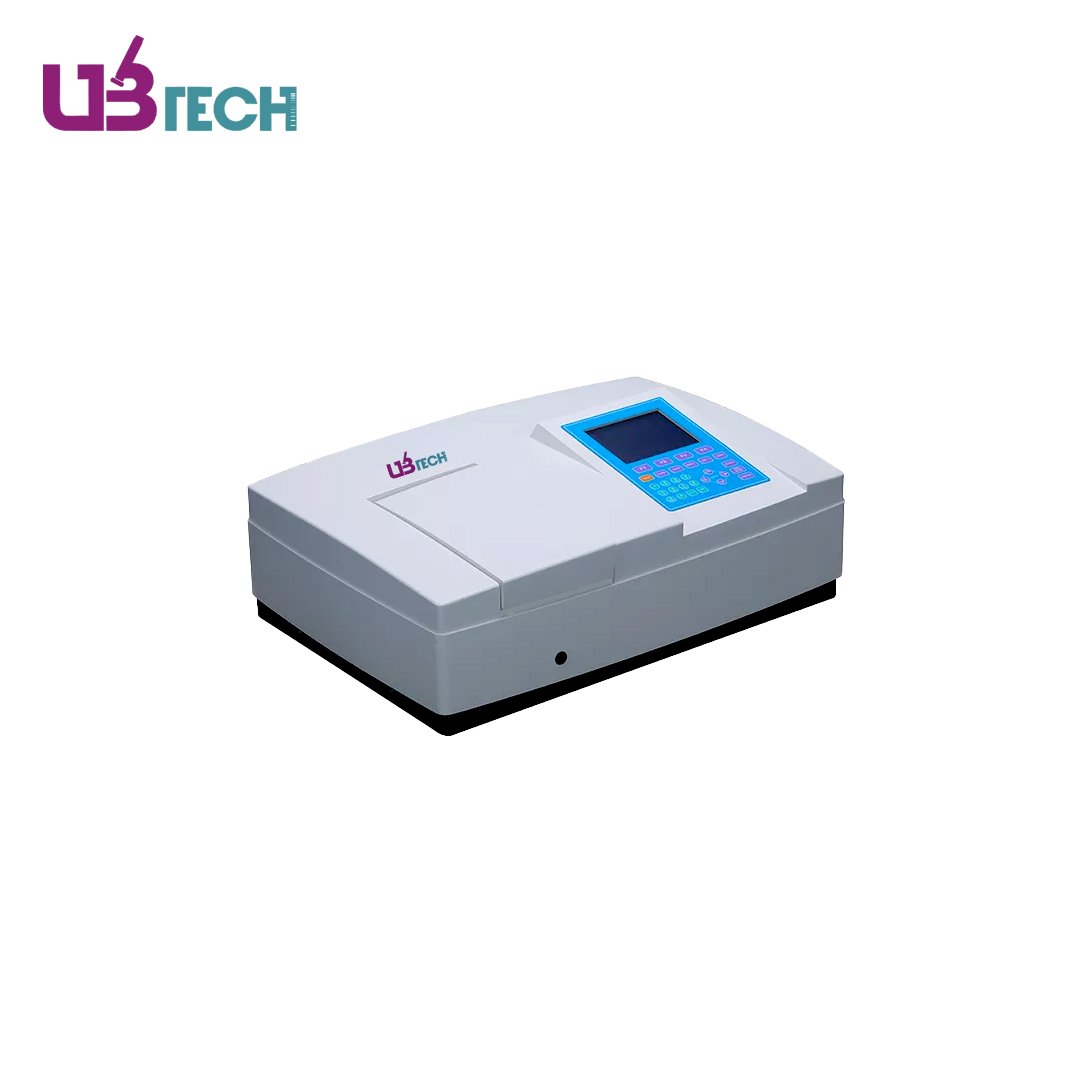

UV Visible Spectrophotometer, Bandwidth 0.5/1.0/1.8/2.0/4.0nm
UV VIS Spectrophotometer Specifications:
| Model | USP-UV6100 | USP-UV6100I | USP-UV6100II |
|---|---|---|---|
| Wavelength Range | 190-1100nm | ||
| Bandwidth | 1.8nm | 1.0nm | 0.5, 1.0, 2.0, 4.0nm |
| Wavelength Accuracy | ±0.1nm@656.1nm, ±0.3nm@all | ||
| Wavelength Repeatability | 0.1nm | ||
| Photometric Accuracy | ±0.2%T(0-100%T) | ||
| Photometric Repeatability | ≤0.1%T(0-100%T) | ||
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C | ||
| Stability | ± 0.002A/h @ 500nm | ||
| Baseline Flatness | ± 0.0008A/h | ||
| Noise | ± 0.001A | ||
| Stray Light | ≤0.05%T @ 220nm, 360nm | ||
| Data Output Port | USB | ||
| Printer Port | Parallel Port | ||
| Display | 320x240 Dots LCD | ||
| Lamps | Tungsten Lamp & Deuterium Lamp | ||
| Detector | Silicon Photodiode | ||
| Power Requirements | AC 220V/50Hz or 110V/60Hz | ||
| Size(W×D×H)(mm) | 625x430x206 | ||
| Shipping Size(W×D×H)(mm) | 850x650x440 | ||
| N.W./G.W. (kg) | 28/33 | 30/36 | |
Unique 520mm long optical path design greatly improves the resolution bandwidth up to 0.5nm.
Can operate and display test result curves and data directly on UV vis spectrophotometer.
USP-UV6100 series adopts a 16mm thickened rigid die-cast aluminum base as the optical mount to ensure the instrument's stability.
Perfect calibration system: All baselines, dark current and wavelength can be calibrated automatically.
6-inch LCD
Equipped with a USB port to connect with the PC, the software comes standard with the instrument.
Can operate A variety of functions directly on the PC.
