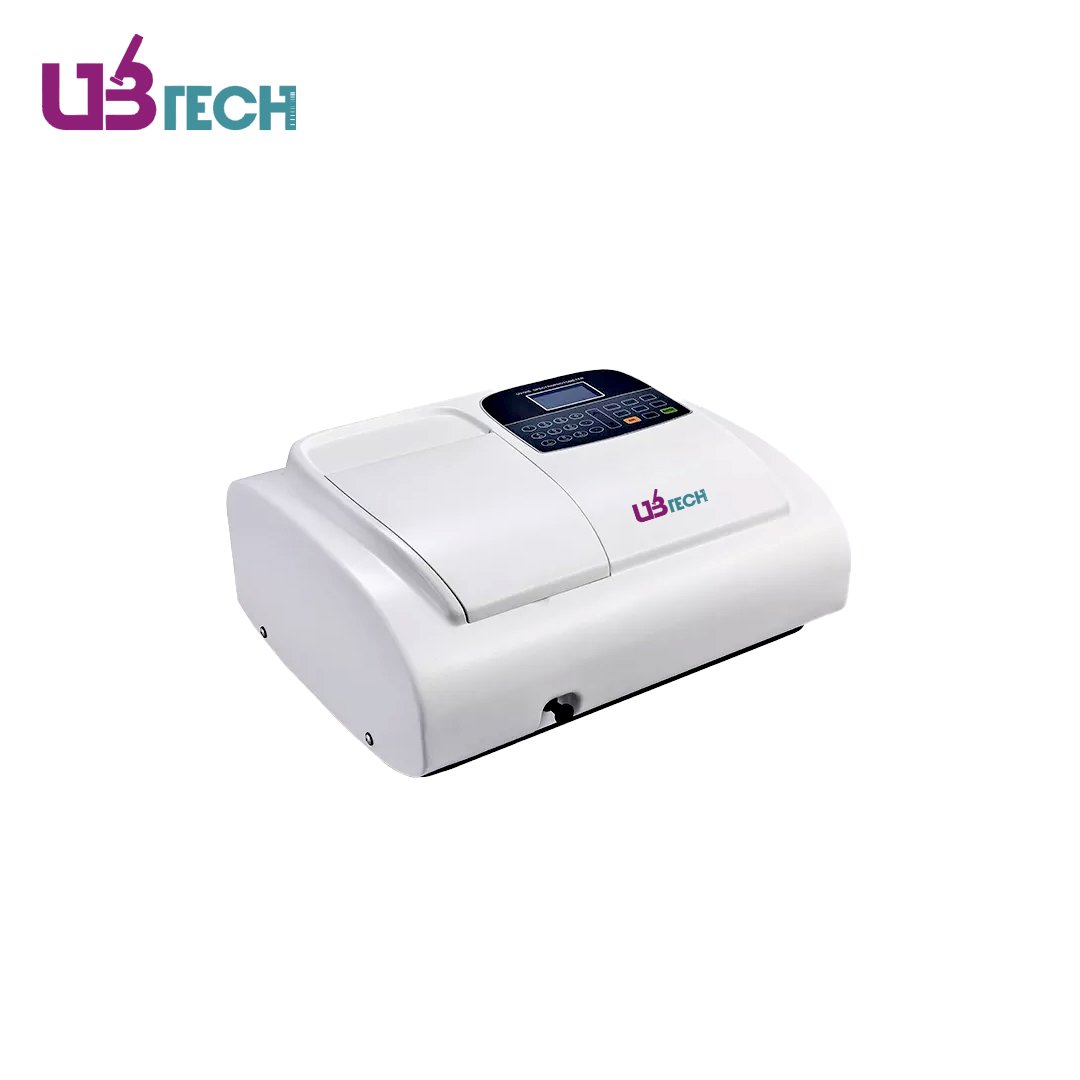

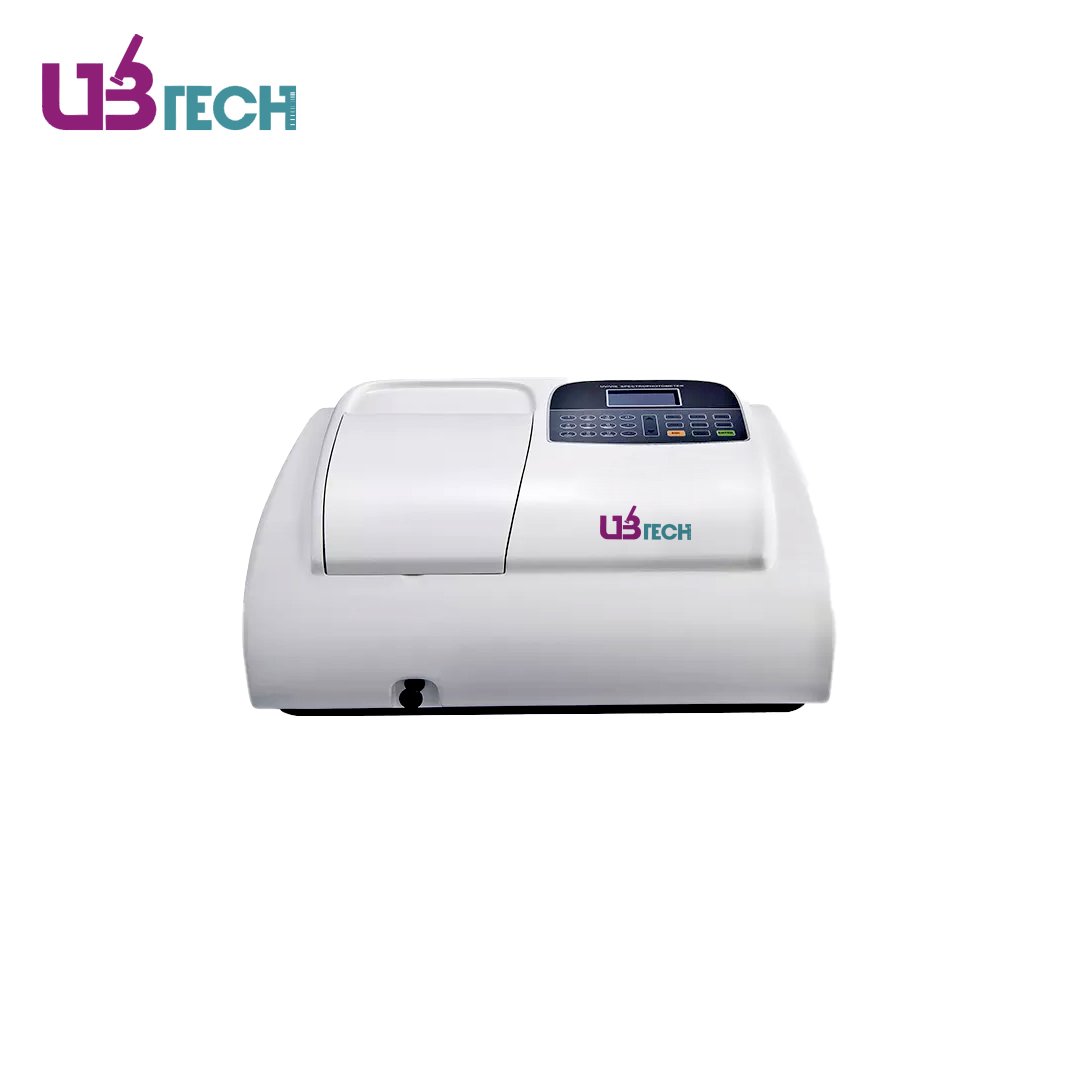

Single Beam Visible Spectrophotometer
Single Beam Visible Spectrophotometer Specifications:
| Model | USP-V5600 | USP-V5800 |
|---|---|---|
| Optical System | Single Beam | |
| Wavelength Range | 320-1100nm | |
| Bandwidth | 2nm | |
| Wavelength Accuracy | ±0.5nm | |
| Wavelength Repeatability | ≤0.2nm | |
| Wavelength Setting | Auto | |
| Photometric Accuracy | ±0.3%T | ±0.2%T |
| Photometric Repeatability | 0.2%T | |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C | |
| Stability | ± 0.001A/h @ 500nm | |
| Baseline Flatness | ± 0.002A/h | |
| Stray Light | ≤0.05%T@220nm, 360nm | |
| Data Output Port | USB | |
| Printer Port | Parallel Port | |
| Display | 128x64 Dots LCD | |
| Lamps | Tungsten Lamp | |
| Detector | Silicon Photodiode | |
| Power Requirements | AC 220V/50Hz or 110V/60Hz | |
| Size (W×D×H)(mm) | 460x360x225 | |
| Shipping Size (W×D×H)(mm) | 630x540x380 | |
| N.W./G.W. (kg) | 16/20 | |
Single Beam Spectrophotometer Features:
- Adopting screw structure, wavelength accuracy and resolution yuyiare greatly improved
- Can automatically set the wavelength through the direction key to avoid operating errors
- Adopting microprocessor control, numeric keys can easily set all parameters.
- The single beam visible spectrophotometer is equipped with USB port, can be connected to PC. Spectral scanning, kinetics and multi-wavelength test results can be displayed on the screen.
- 8 mm thick rigid die-cast aluminum base is used as an optical mount to ensure the stability and reliability of the instrument.
- The single beam visible spectrophotometer can establish various standard curves according to the customer's solution and determine the concentration of the unknown solution.
