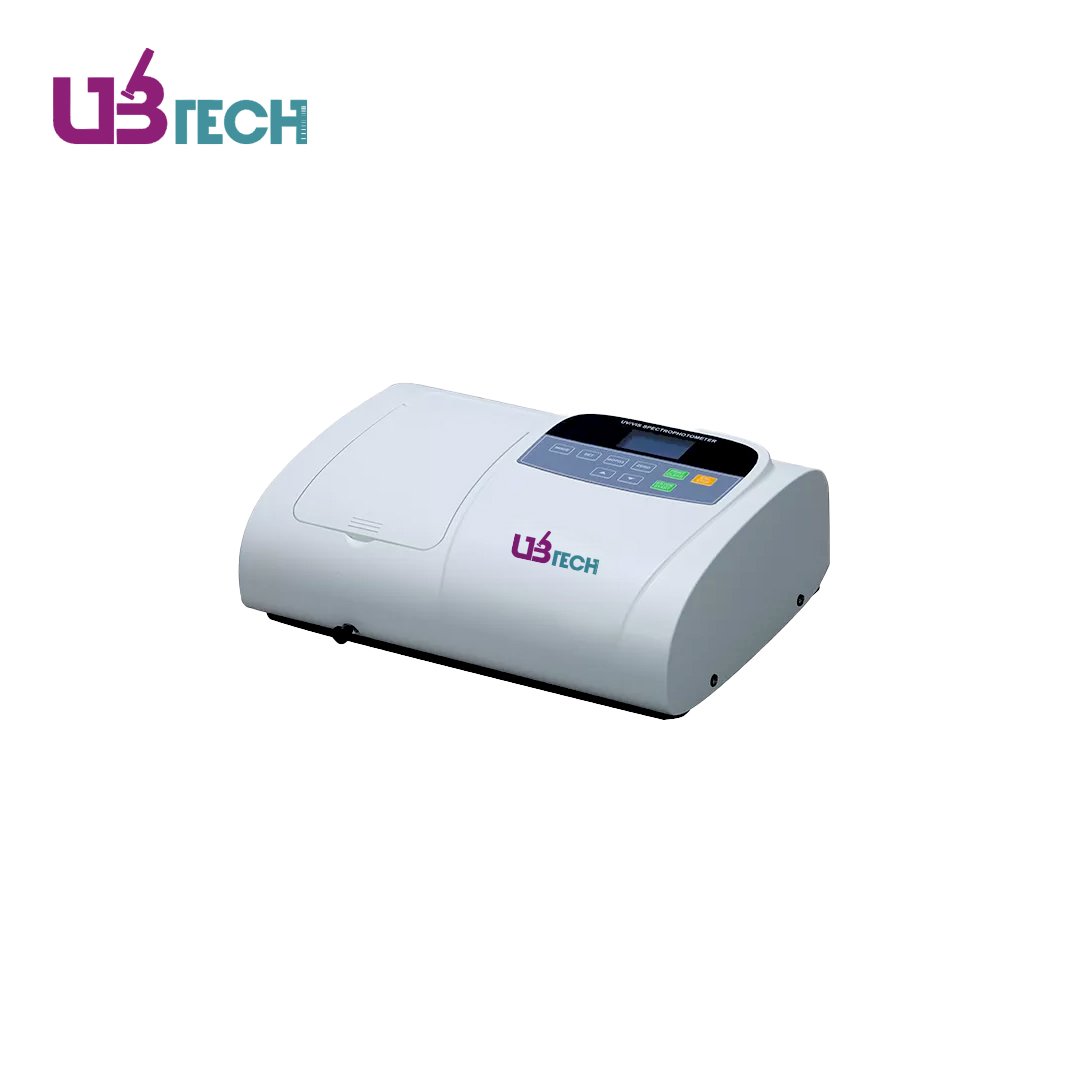

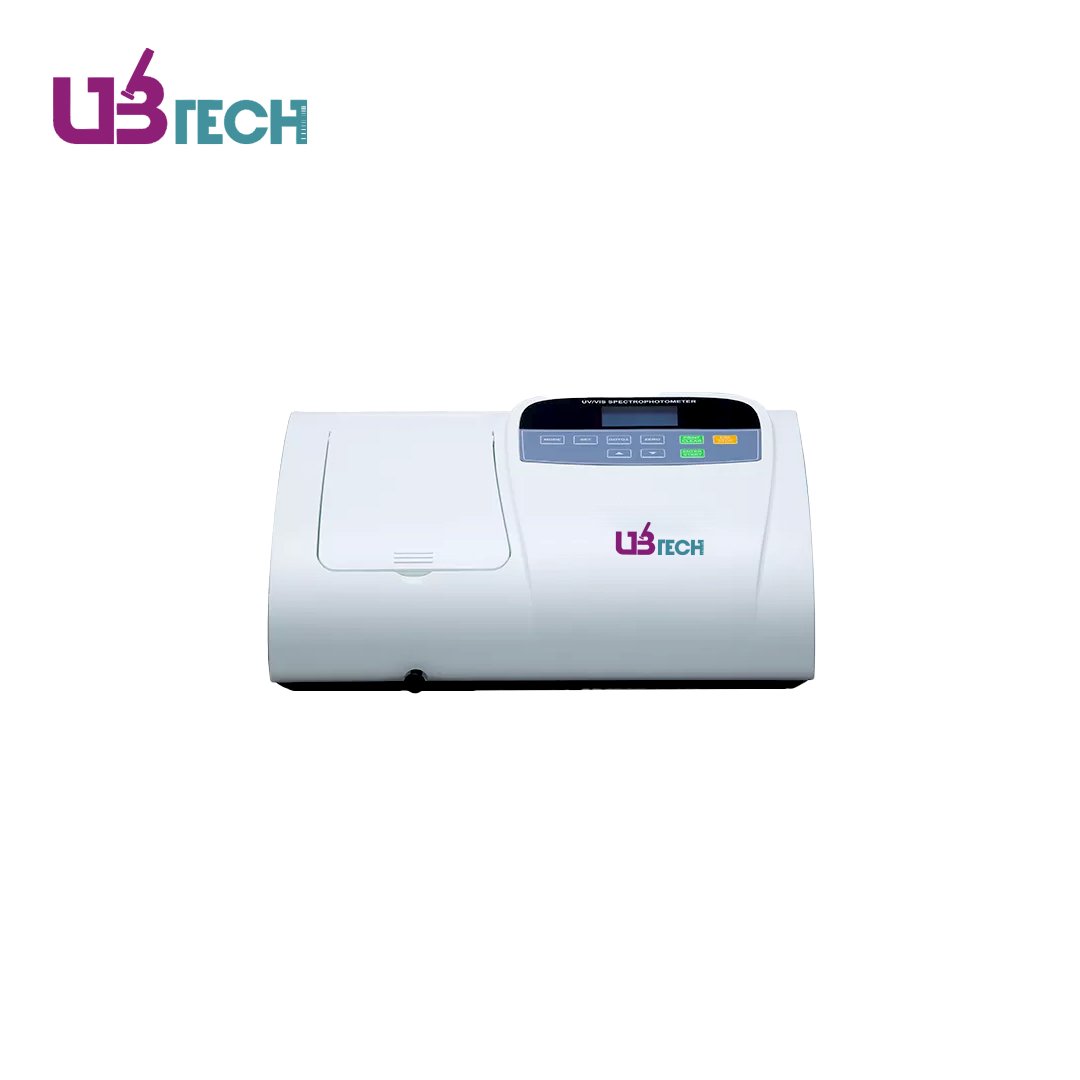

Single Beam UV-Vis Spectrophotometer
UV VIS Spectrometer Specifications:
| Model | USP-UV5100 |
|---|---|
| Optical System | Single beam, Grating 1200 lines/mm |
| Wavelength Range | 190-1000nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | ≤0.2%T |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
| Photometric Mode | T, A, C, F |
| Stray Light | ≤0.1%T |
| Stability | ± 0.002A/h @ 500nm |
| Display | 128x64 LCD |
| Detector | Silicon Photodiode |
| Light Source | Tungsten Lamp & Deuterium Lamp |
| Output | USB & Parallel Port(Printer) |
| Power Requirements | AC 85-250V |
| Size(W×D×H)(mm) | 420x280x180 |
| Shipping Size(W×D×H)(mm) | 600x460x330 |
| N.W./G.W. (kg) | 12/15 |
Equipped with 2.5-inch LCD, displaying the test results and standard curve.
It can establish various standard curves according to the solution and determine the unknown solution's concentration.
USP-UV5100 UV spectrometer is equipped with an imported deuterium lamp, which makes the luminosity more accurate and reduces stray light.
Equipped with a USB interface, it can be connected to PC.
It can display wavelength, absorbance and transmittance with 5 results per screen. It also has memory storage for up to 200 results.
The arrow keys can automatically set the wavelength to avoid operation errors.
