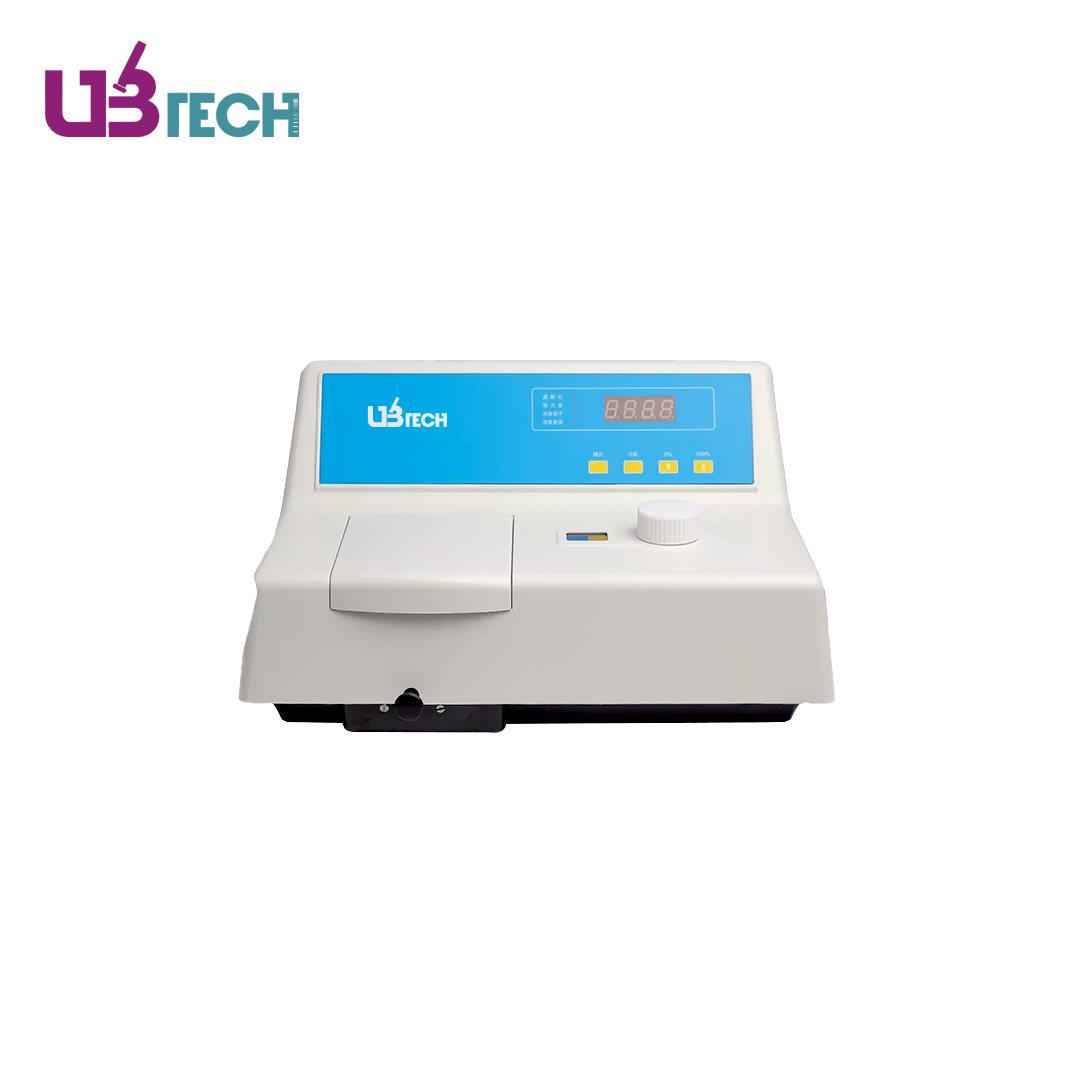

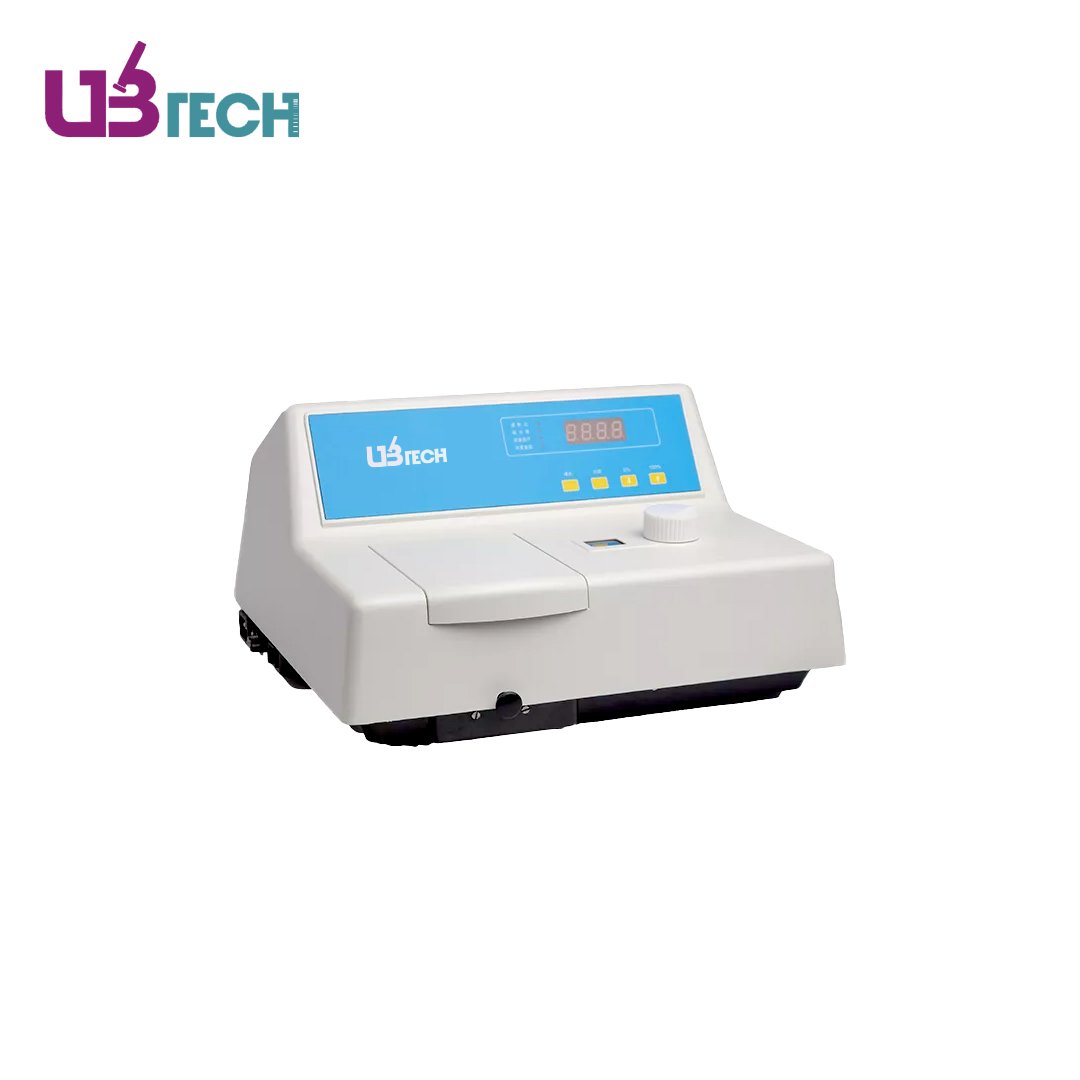

Visible Spectrophotometer With LED Display
Visible Spectrophotometer Specifications:
Model | USP-V722 |
---|---|
Product Standard | Enterprise Standard Q/SEEK3 |
Display Mode | 4 digits LED |
Wavelength Range | 340-1000nm |
Light Source Lamp | Halogen-Tungsten Lamp 20W/12V |
Wavelength Accuracy | ±2 nm |
Wavelength Reproducibility | 1 nm |
Band Width | 6 nm |
Photometric Accuracy | ±0.5%(T) |
Photometric Reproducibility | 0.3%(T) |
Stray Light | ≤0.5%(T) |
Noise | ±0.5%(T) |
TRANS | 0-199.9% |
ABS | -3.299 |
FACT | 1-9999 |
CONC | 0-9999 |
Power Requirement | 220V/110V±10%, 50/60 Hz |
Interface | RS232 serial & parallel l interface |
Serial printer/general printer (windows compatible; use software package) | |
Size(W×D×H)(mm) | 450×420×280 |
Shipping Size(W×D×H)(mm) | 460x430x320 |
N.W./G.W. (kg) | 7/10 |
Visible Spectrophotometer Features:
- Aspherical light source optics, Curny-terner configuration diffraction grating monochromator.
- Simple and clear keyboard operation, easy to realize automatic 0%T and 100%T adjustment T/A transformation, coefficient setting, and concentration direct readout function.
- RS232 parallel interface.
- With RS232 serial interface, optional micro-printer to print data directly.
- Spacious sample chamber, 4-position cuvette holder, can be adapted to 1-5 cm optical path rectangular cuvettes.
