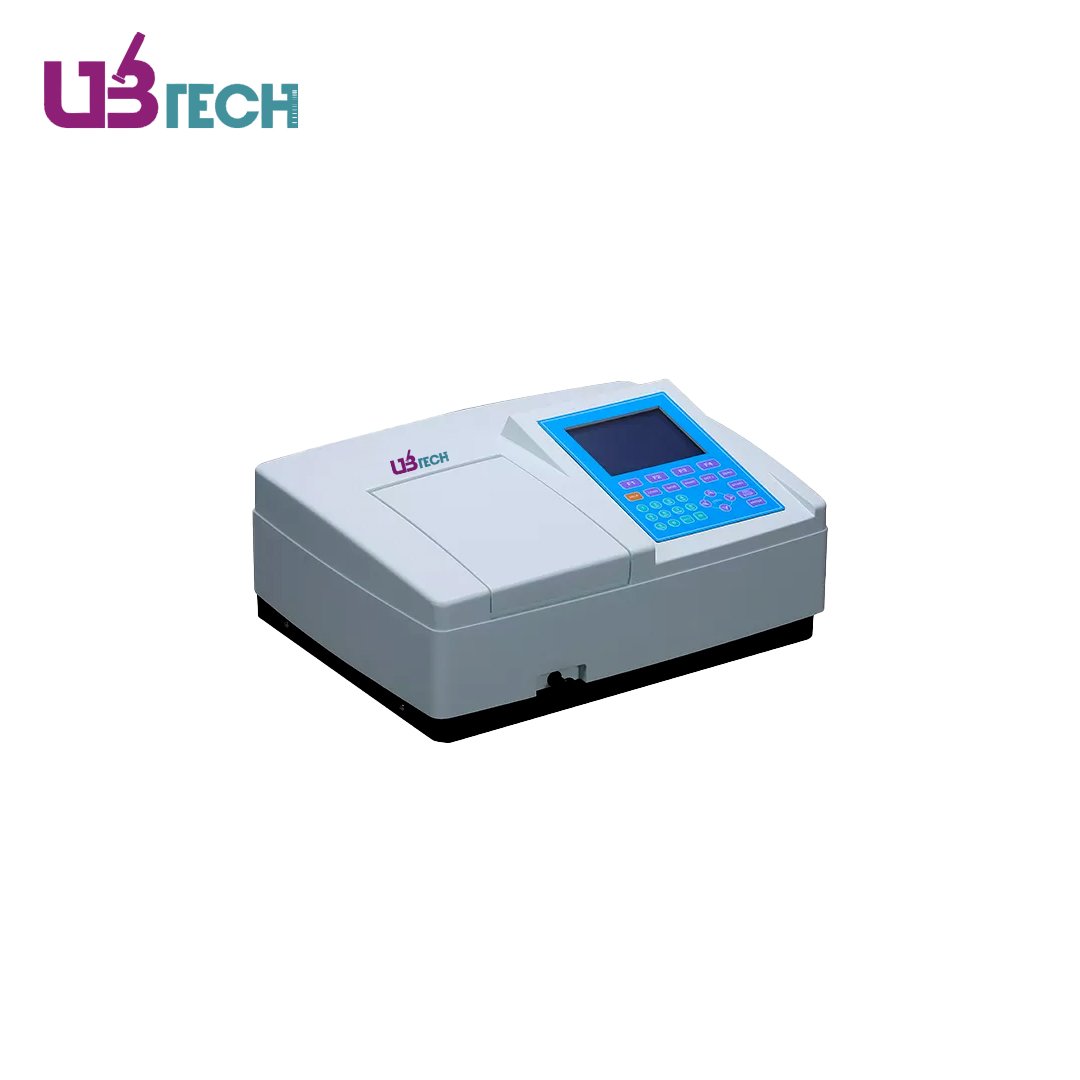

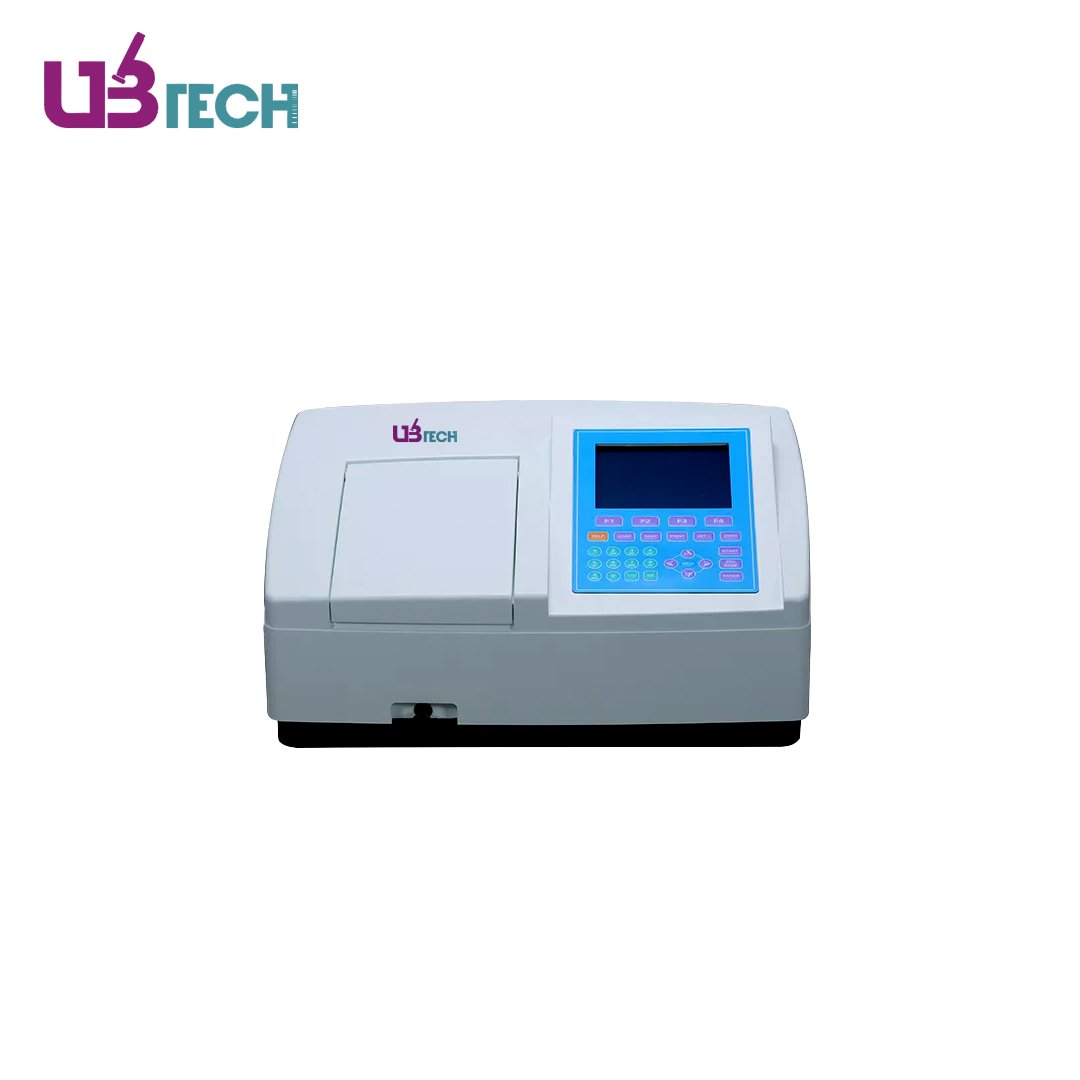

UV VIS Spectrophotometer, Bandwidth 1.8nm
UV VIS Spectrophotometer Specifications:
| Model | USP-UV6000 |
|---|---|
| Wavelength Range | 190-1100nm |
| Bandwidth | 1.8nm |
| Wavelength Accuracy | ±0.5nm |
| Wavelength Repeatability | ≤0.2nm |
| Photometric Accuracy | ±0.3%T |
| Photometric Repeatability | ≤0.15%T |
| Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
| Stability | ± 0.002A/h @ 500nm |
| Baseline Flatness | ± 0.002A/h |
| Noise | ± 0.0005A |
| Stray Light | ≤0.05%T @ 220nm, 360nm |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 320x240 Dots LCD |
| Lamps | Tungsten Lamp & Deuterium Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz or 110V/60Hz |
| Size(W×D×H)(mm) | 460x380x180 |
| Shipping Size(W×D×H)(mm) | 630x540x370 |
| N.W./G.W. (kg) | 17/21 |
The USP-UV6000 comes with a 6-inch LCD and a USB port for connecting to a PC. This allows results and curves to be displayed directly on the screen.
USP-UV6000 UV spectrometers use 8 mm rigid molded aluminum base as the optical mount to ensure the instrument's stability.
Multi-functions such as multi-wavelength, spectral scanning, kinetics, standard curve, and DNA/RNA/protein testing can be operated directly on the spectrophotometer.
