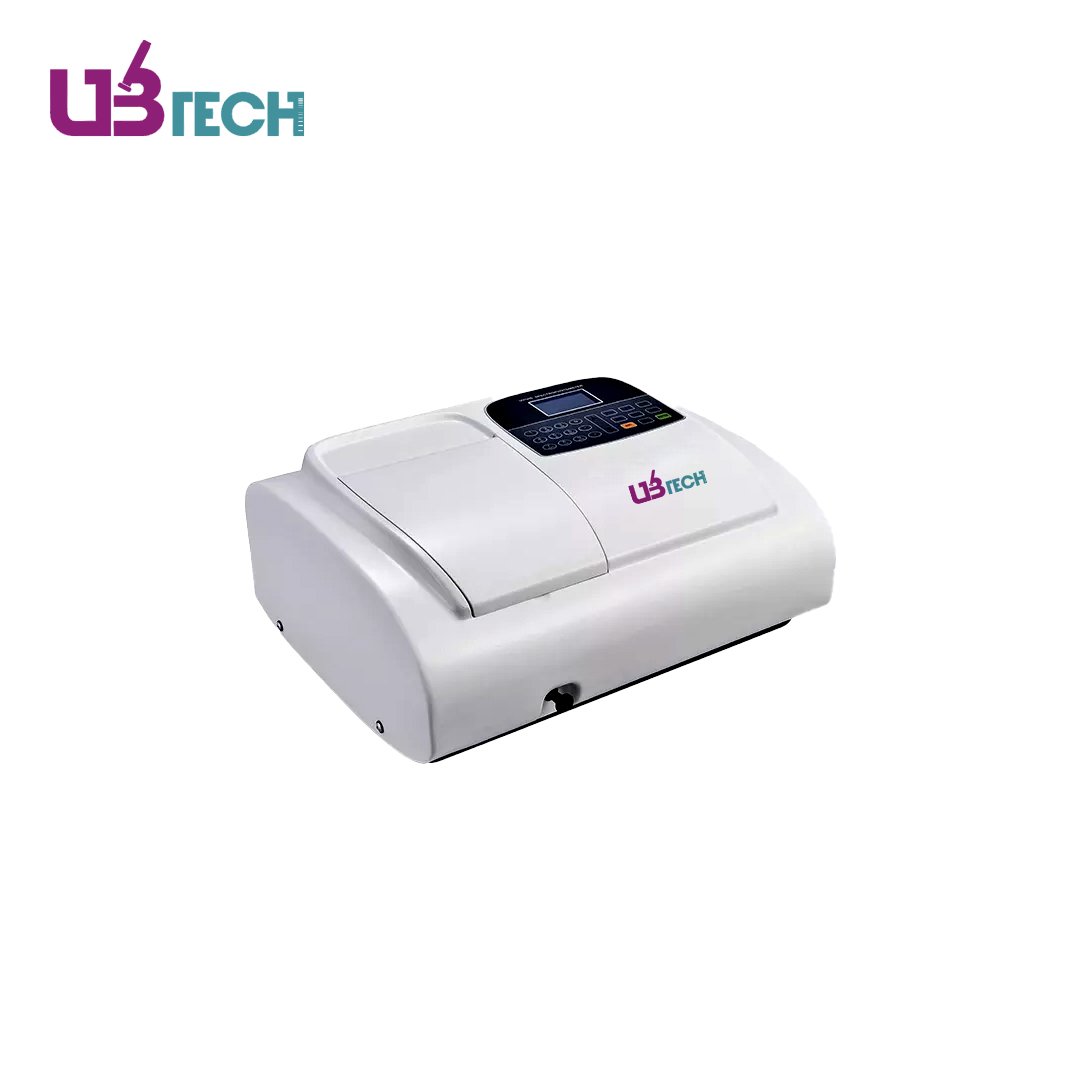

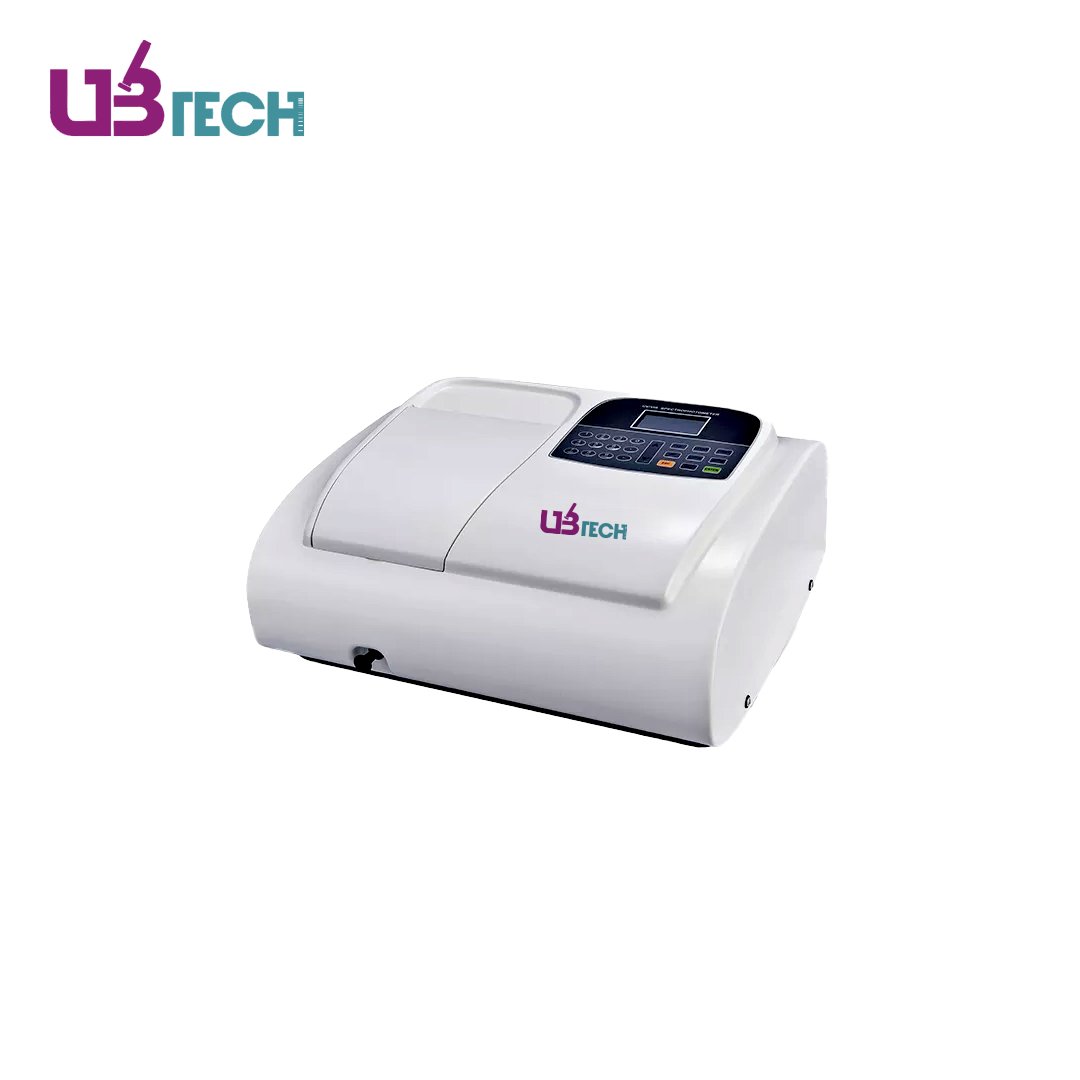

UV Visible Spectrophotometer, 190-1100nm
UV Visible Spectrophotometer Specifications:
Model | USP-UV5600 |
---|---|
Optical System | Single Beam |
Wavelength Range | 190-1100nm |
Bandwidth | 2nm |
Wavelength Accuracy | ±0.5nm |
Wavelength Repeatability | ≤0.2nm |
Wavelength Setting | Auto |
Photometric Accuracy | ±0.3%T |
Photometric Repeatability | 0.2%T |
Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
Stability | ± 0.002A/h @ 500nm |
Baseline Flatness | ± 0.002A/h |
Stray Light | ≤0.05%T@220nm,360nm |
Data Output Port | USB |
Printer Port | Parallel Port |
Display | 128x64 Dots LCD |
Lamps | Tungsten Lamp & Deuterium Lamp |
Detector | Silicon Photodiode |
Power Requirements | AC 220V/50Hz or 110V/60Hz |
Size(W×D×H)(mm) | 460x360x225 |
Shipping Size(W×D×H)(mm) | 630x540x370 |
N.W./G.W. (kg) | 18/23 |
This uv visible spectrophotometer adopts a screw structure, greatly improving the wavelength accuracy and resolution.
UV visible spectrophotometer adopts imported flange deuterium lamp, low stray light, accurate light measurement and easy replacement.
USP-UV5600 can establish various standard curves according to the customer's solution to determine the concentration of unknown resolution. And the wavelength can be set automatically by the direction key to avoid operation errors.
USP-UV5600 is controlled by a microprocessor. Numeric keys can easily set all parameters.
The UV visible spectrophotometer is equipped with a USB port for connection to a PC.
8mm rigid die-cast aluminum base is used as the optical mount to ensure the stability and reliability of the instrument.
