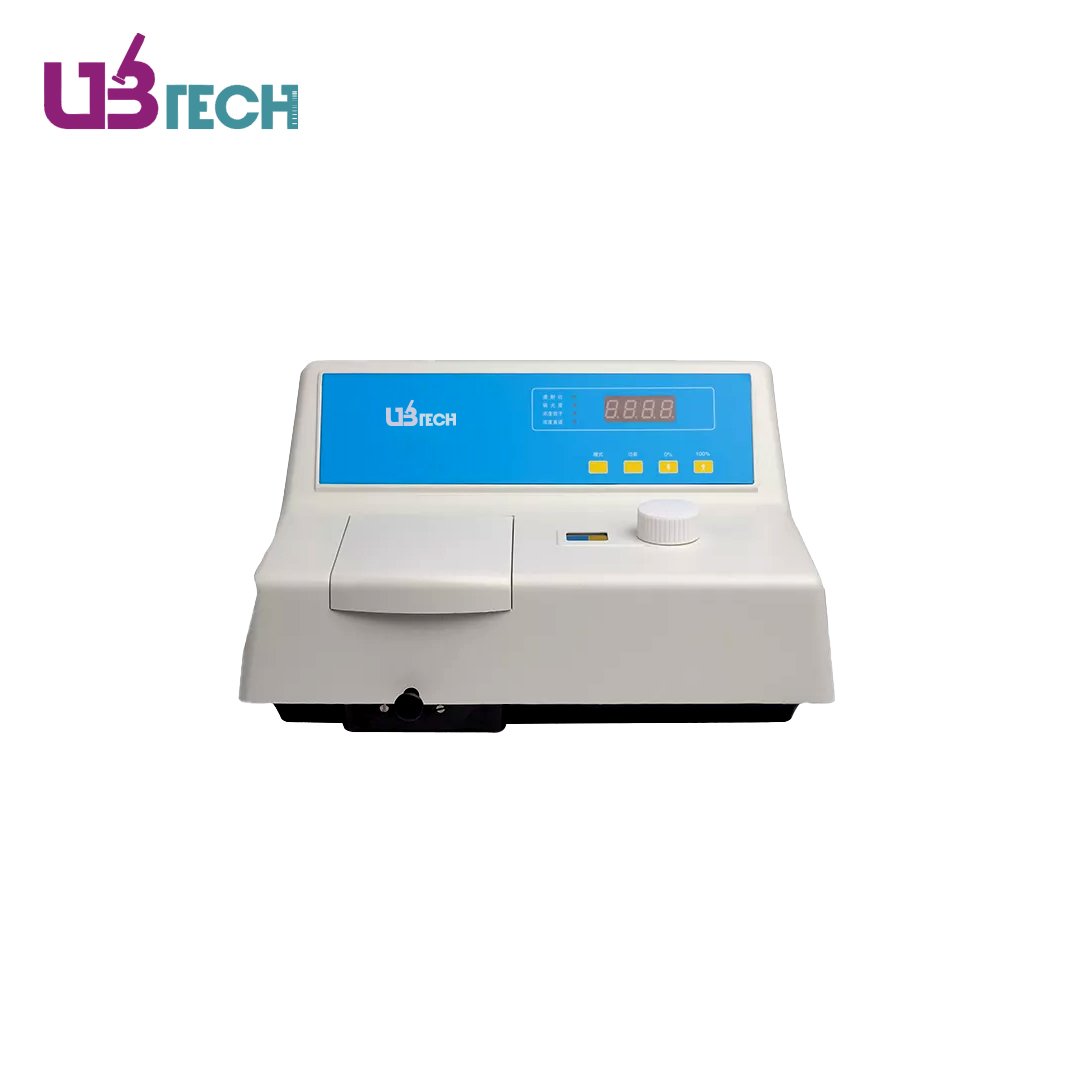

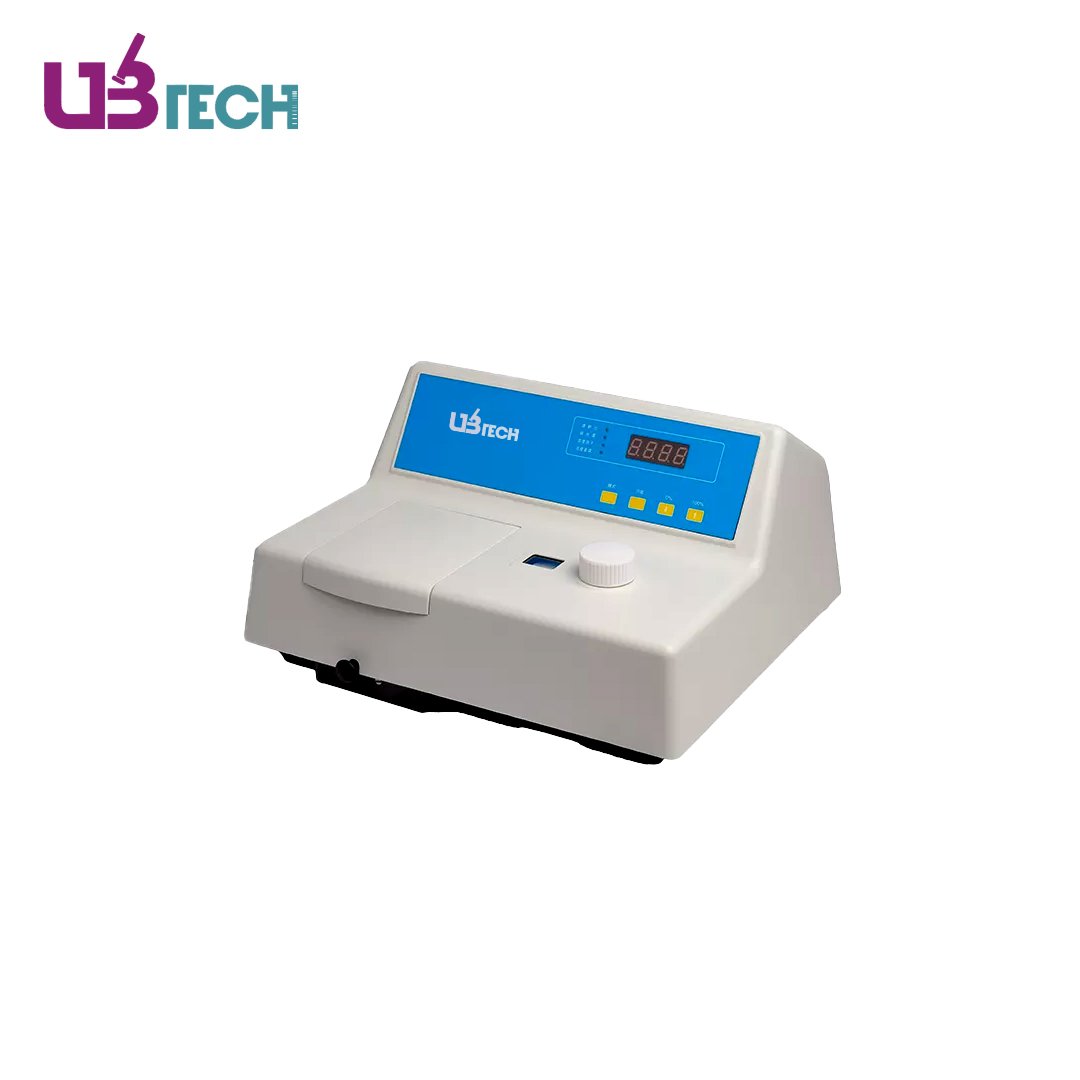

Visible Spectrophotometer, Band Width 6nm
Visible Spectrophotometer Specifications:
| Model | USP-VS22 |
|---|---|
| Product Standard | Enterprise Standard Q/SEEK3 |
| Display Mode | 4 digits LED |
| Wavelength Range | 340-1000nm |
| Light Source Lamp | Halogen-Tungsten Lamp, 20W/12V |
| Wavelength Accuracy | ±2 nm |
| Wavelength Reproducibility | 1 nm |
| Band Width | 6 nm |
| Photometric Accuracy | ±0.5%(T) |
| Photometric Reproducibility | 0.3%(T) |
| Stray Light | ≤0.2%(T) |
| Noise | ±0.5%(T) |
| Scale Display | TRANS, 0-199.9% |
| ABS | -3.299 |
| FACT | 1-9999 |
| CONC | 0-9999 |
| Power Requirement | 220V/110V±10% 50/60 Hz |
| Interface | RS232 serial & parallel l interface |
| Serial printer/general printer (windows compatible; use software package) | |
| Complete Set | A set: SP-VS22 |
| B set: SP-VS22+DATA PROCESSING SOFTWARE PACKAGE | |
| Size(W×D×H)(mm) | 450×420×280 |
| Shipping Size(W×D×H)(mm) | 460x430x320 |
| N.W./G.W. (kg) | 7/10 |
Visible Spectrophotometer Features:
- Aspherical light source optics, Czerny-turner configuration diffraction grating monochromator.
- Simple and convenient operation to realize automatic 0% T and 100% T adjustment T / A transformation, concentration of direct readout and coefficient setting function.
- With RS232 parallel interface and serial interface, can be connected to the printer to print data directly.
- Spacious sample chamber, 4-position cuvette rack, can be adapted to 1-5 cm optical path rectangular cuvettes.
