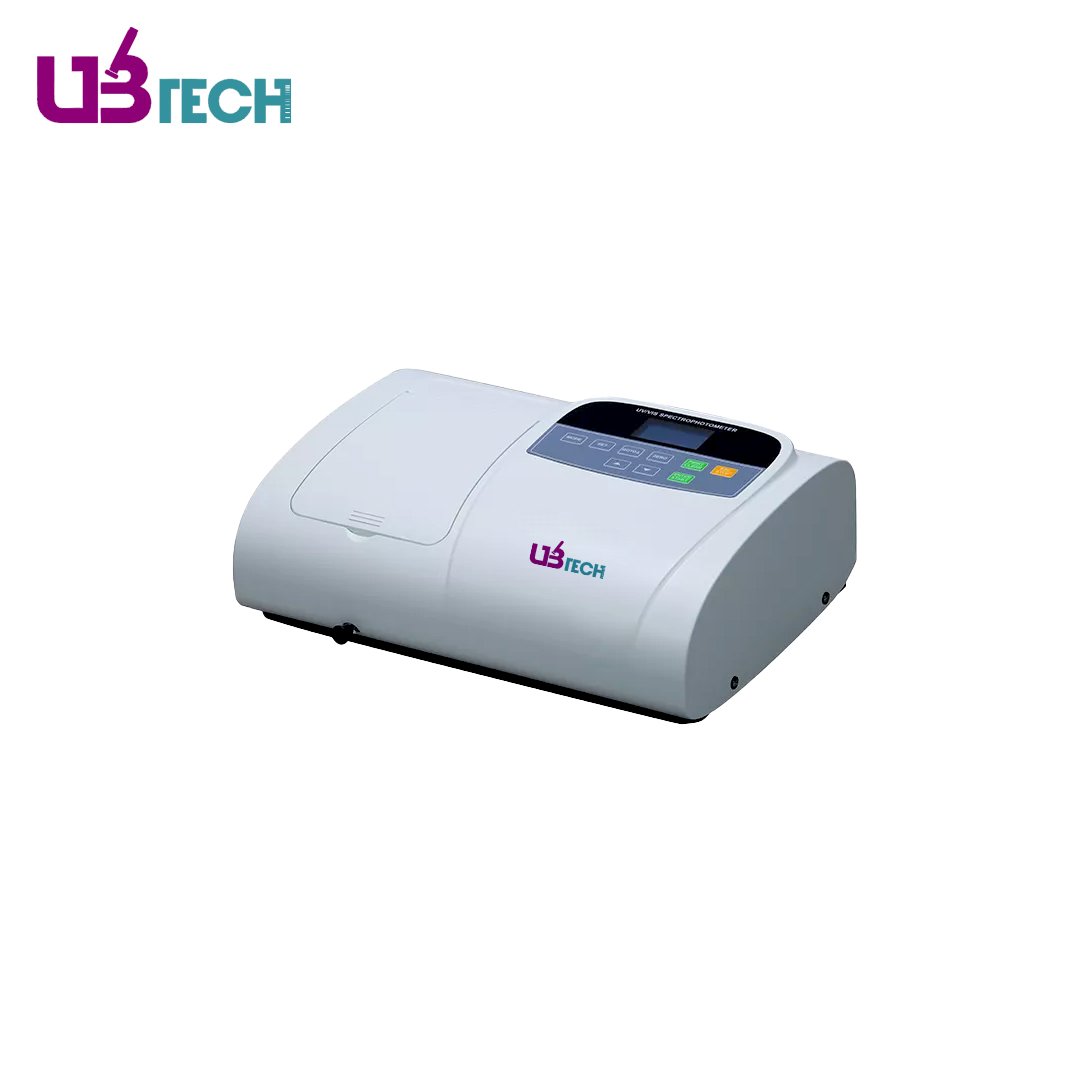

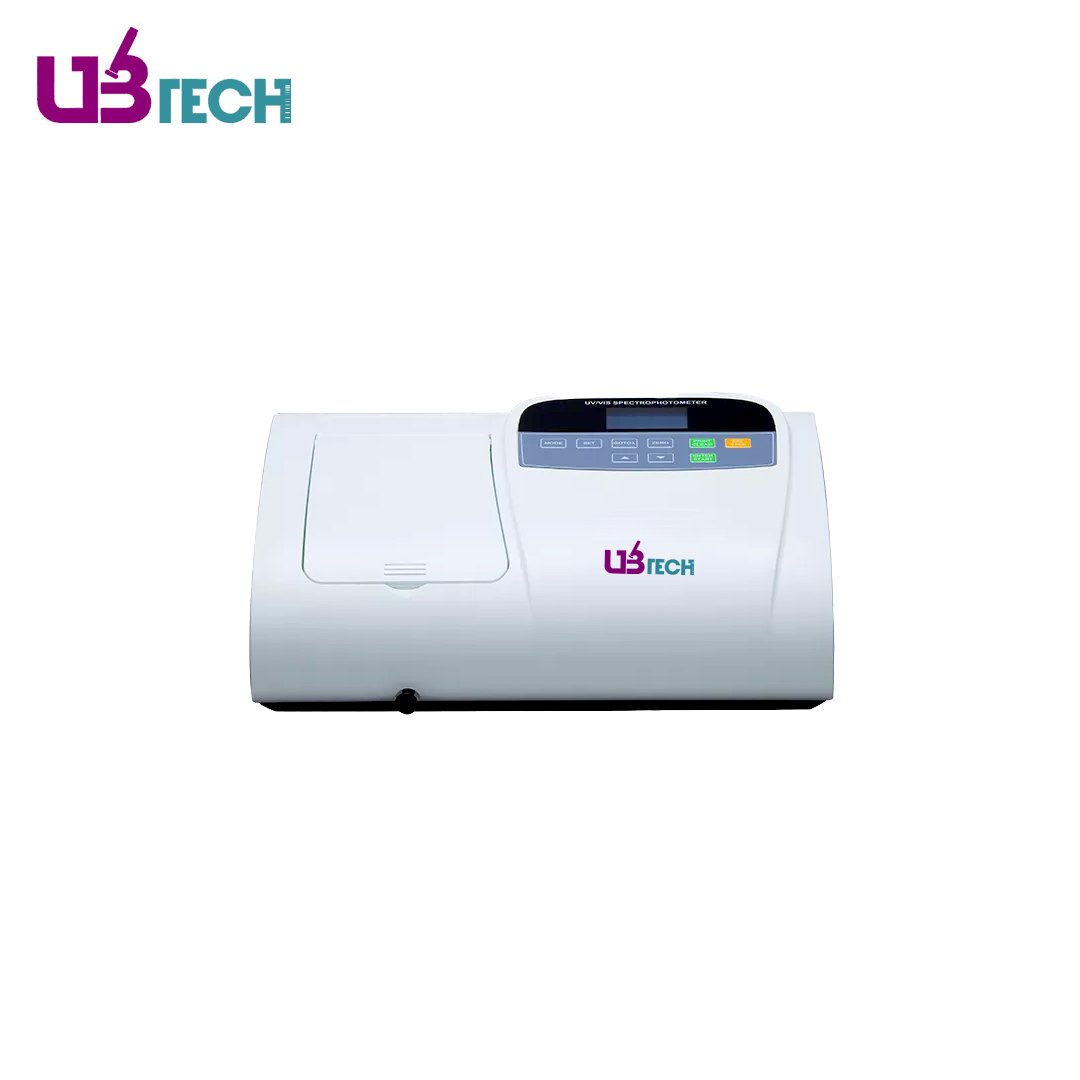

Visible Spectrophotometer, Bandwidth 2/4nm
Single Beam Visible Spectrophotometer Specifications:
Model | USP-V5100 |
---|---|
Optical System | Single beam, Grating 1200 lines/mm |
Wavelength Range | 325-1000nm |
Bandwidth | 4nm(optional 2nm) |
Wavelength Accuracy | ±2nm |
Wavelength Repeatability | 0.5nm |
Wavelength Setting | Auto |
Photometric Accuracy | ±0.5%T |
Photometric Repeatability | ≤0.2%T |
Photometric Range | -0.3-3A, 0-200%T, 0-9999C |
Photometric Mode | T, A, C, F |
Stray Light | ≤0.1%T |
Stability | ± 0.002A/h @ 500nm |
Display | 128x64 LCD |
Detector | Silicon Photodiode |
Light Source | Tungsten Lamp |
Output | USB Port & Parallel Port (Printer) |
Power Requirements | AC 85~250V |
Size(W×D×H)(mm) | 420x280x180 |
Shipping Size(W×D×H)(mm) | 600x460x330 |
N.W./G.W. (kg) | 10/14 |
Single Beam Visible Spectrophotometer Features:
- A 2.5 inch LCD screen is included to display standard curves and groups of results.
- Various standard curves can be established based on the customer's solutions to determine the concentration of unknown solutions.
- The device has a USB port for data output, which can be connected to a PC to display spectrum scanning, kinetics, and multi-wavelength testing results on the screen.
- The device can display wavelength, absorption, and transmittance with 5 results per screen and store up to 200 results in its memory.
- Users can set the wavelength automatically using arrow keys to avoid operation errors.
