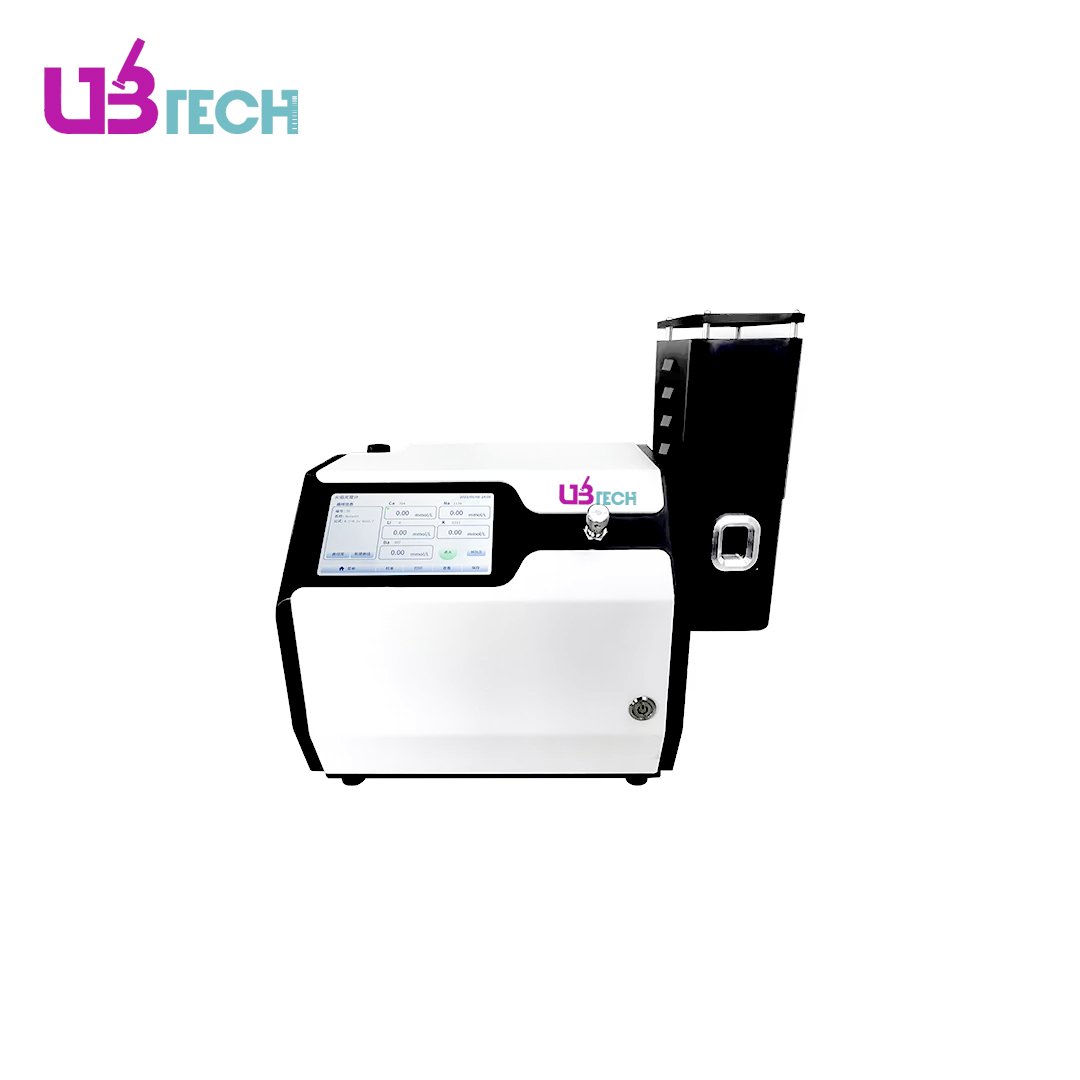

Flame Photometer USP-FPI Series
Flame Photometer Specifications:
| Model | USP-FPI6450 | USP-FPI6440 | USP-FP6432 | USP-FPI6431 | USP-FPI6430 | USP-FPI6410 | USP-FP6400 | |
|---|---|---|---|---|---|---|---|---|
| Display | 7-inch color touch screen | |||||||
| Display Results | Concentration value/Energy | |||||||
| Reading Range | 0.000-9999/0-65535 | |||||||
| Testable | K, Na, Li, Ca, Ba | K, Na, Li, Ca | K, Na, Ba | K, Na, Ca | K, Na, Li | K, Na | K, Na | |
| Channel Qty | 5 | 4 | 3 | 3 | 3 | 2 | 2 | |
| Range (ppm) | K | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 |
| Na | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 | 0-200 | |
| Li | 0-200 | 0-200 | / | / | 0-200 | / | / | |
| Ca | 0-1000 | 0-1000 | / | 0-1000 | / | / | / | |
| Ba | 0-3000 | / | 0-3000 | / | / | / | / | |
| Detection Limit (ppm) | K | ≤0.16 | ||||||
| Na | ≤0.18 | |||||||
| Li | ≤0.105 | ≤0.105 | / | / | ≤0.105 | / | / | |
| Ca | ≤2 | ≤2 | / | ≤2 | / | / | / | |
| Ba | ≤0.6 | / | ≤0.6 | / | / | / | / | |
| Linear Error | K | ≤0.2 | ||||||
| Na | ≤0.7 | |||||||
| Li | ≤0.147 | ≤0.147 | / | / | ≤0.147 | / | / | |
| Ca | ≤3 | ≤3 | / | ≤3 | / | / | / | |
| Ba | ≤9 | / | ≤9 | / | / | / | / | |
| Response Time | <8s | |||||||
| Sample Uptake | <6ml/min | |||||||
| Stability | <3% drift over 15s when continuous sampling | |||||||
| Reproducibility | <3% coefficient of variation for 7 consecutive samples | |||||||
| Curve Graph | Yes | Yes | Yes | Yes | Yes | No | No | |
| Bluetooth Printer | Yes | Optional | ||||||
| Output | USB port | |||||||
| Standard Accessory | Air compressor | |||||||
| Power Supply | AC 220/110V, 50/60Hz | |||||||
| External Size (WxDxH)(mm) | 480x260x330 | |||||||
| Shipping Size (WxDxH)(mm) | 710x380x515 | |||||||
| N.W./G.W.(kg) | 16/20 | |||||||
Flame Photometer Features:
7-inch color touch screen
Direct reading of concentration
Flameout protection device
Automatic calculation of correlation coefficients
Supports cloud connectivity, PC connection and printing
