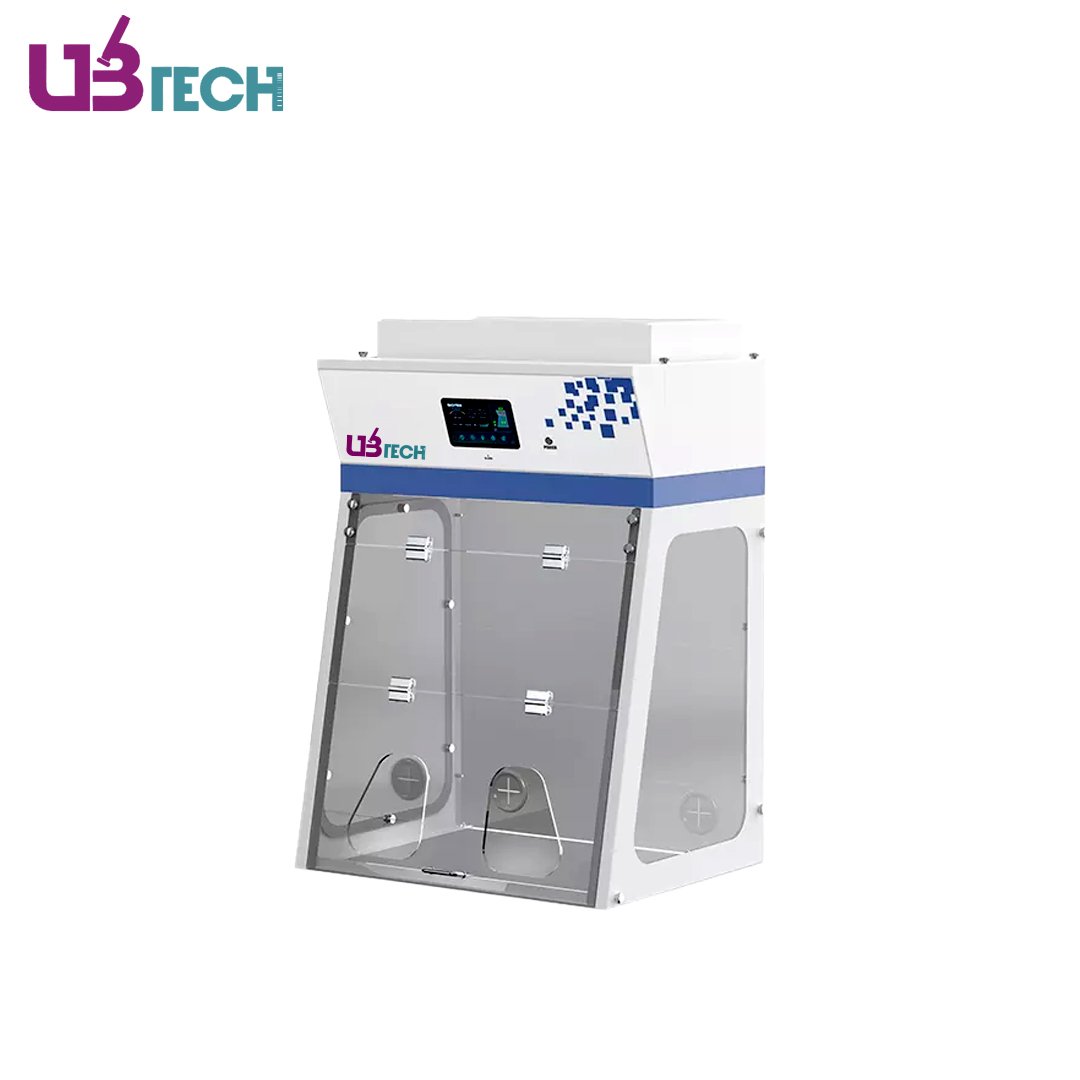

Ductless Fume Hood
Ductless Fume Hood Specifications:
Model | UFMH-800DL | |
---|---|---|
External Size (WxDxH)(mm) | 800x620x1130 (Without Base Stand); 800x620x1800 (With Base Stand) | |
Internal Size (WxDxH)(mm) | 780x540x775 | |
Max.Opening | 650mm | |
Operation Surface Height | 690mm | |
Control System | 7-inch color touch screen, real-time display air velocity, VOC concentration, temperature and humidity, and filter life time etc | |
Airflow System | Airflow Velocity | 0.4-0.6m/s, speed adjustable |
Air filtration System | Filter | 1pcs Pre-filter, Polyester fiber,washable 1pcs Active Carbon filter |
Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
Work Surface | 304 Stainless Steel, Max.loading of worksurface: 70kg | |
Front Window | Manual acrylic window | |
Electrical System | LED Lamp | 16W×1 |
Blower | DC Centrifugal blower, adjustable speed, low noise | |
Consumption | 60W | |
Power Supply | 220V±10%, 50/60Hz; 110V±10%, 60Hz | |
Sound Emission | ≤50dB(A) | |
Standard Accessory | 1. Active Carbon Filter×1; 2. Pre-Filter×1; 3. LED Lamp×1 | |
Optional Accessory | 1. Base Stand; 2. Base Cabinet; 3. HEPA Filter; 4. Chemical filter; 5. Upgraded LED Lamp; 6. Solid Physicochemical Board Work Surface | |
Net Weight | 96kg | |
Gross Weight | 138kg | |
Shipping Size (WxDxH)(mm) | 1160×840×1320 | |
Shipping Volume | 1.3m³ |
Ductless Fume Hood Feature:
Powerful filtration system can be configured with HEPA filters and chemical filters according to customer requirements, effectively filtering and removing harmful substances to ensure a safe operating environment and protect personnel from harm.
Easy to operate, and fume hood equipped with a 7-inch LCD color touchscreen, it displays real-time parameters such as air velocity, VOC concentration, temperature and humidity,and filter lifetime. This achieves excellent human-machine interaction.
- Humanized design, three-sided acrylic transparent material observation window, convenient for multi-angle observation.
- Low noise design, using high-quality DC centrifugal blower to ensure performance while providing users with a quiet working environment.
- Memory function in case of power-failure.
- Audio and Visual alarm on filter life,VOC concentration
- Brushed stainless steel work surface is for easy cleaning.
- Different sizes available from 2 feet to 6 feet, benchtop use or mounted on a mobile base.
- Optional upgrade LED lamp can be choosed.
- Color Rendering Index up to Ra98, Truly restore the true color of the experimental object, the experimental results are more accurate. RG0 without blue light, protects the operator from blue light.
