Mini Laminar Flow Cabinet
Mini Laminar Flow Cabinet Specifications:
Model | ULCB-V500II | |
---|---|---|
External Size (WxDxH)(mm) | 580x460x700 | |
Internal Size (WxDxH)(mm) | 480x340x370 | |
Max Opening | 310mm | |
Control System | Microprocessor controller with LCD display, display the operating status of each function | |

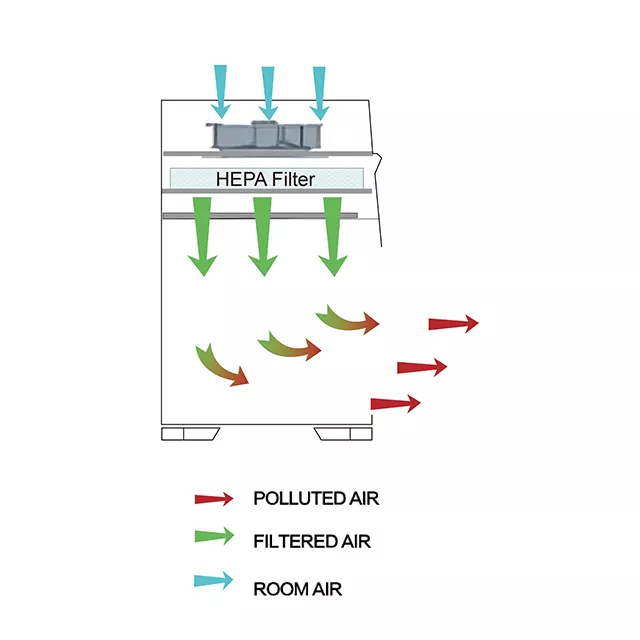

Airflow System | Airflow Velocity | 0.2~0.6m/s, Intelligent multi-level adjustable |
Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable |
HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | |
Cleanliness Grade | ISO Class 5 (formerly Class 100) | |
Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | |
Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial powder coating |
Work Surface | 304 Stainless steel | |
Front Window | Manual, 5 mm UV resistant tempered glass | |
Electrical System | UV Lamp | 8Wx1 |
LED Lamp | 8Wx1 | |
Consumption | 110W | |
Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | |
Sound Emission | ≤62db | |
Colony Count | ≤0.5pcs/vessel (petri dish is φ 90mm) | |
Vibration | ≤3um | |
Work Surface Bearing | 10kg | |
Standard Accessory | 1.LED Lampx1; 2.UV Lampx1; 3.Pre-filterx1; 4.HEPA Filterx1 | |
Net Weight | 36kg | |
Gross Weight | 70kg | |
Shipping Size (W×D×H)(mm) | 700x660x900 | |
Shipping Volume | 0.36m³ |
Mini Laminar Flow Cabinet Features:
- HEPA filter with efficiency: 99.995% at 0.3um. It also has pre-filter which made of washable polyester fiber, can extend the life of the HEPA filter.
- Microprocessor control panel with soft button, LED/LCD display.
- Table top, Manual front window is 5mm toughened glass, anti-UV.
- Air speed adjustable.
- UV lamp and front window has interlock function.
- Desktop type, with a handle, saving space and easy to move.
- Pre-filter is polyester fiber, washable and anti-ultraviolet radiation.
- Automatic cutting off UV lamp function by opening glass.
- LCB-V500II have color screen LCD controller (with sterilization timing, built-in socket controllable switch , front window status display, can set three position interlock , cumulative work timing, remote control)
