PCR Cabinet
PCR Cabinet Specifications:
Model | UPCR-1100 | UPCR-1300 | UPCR-1600 | UPCR-1900 | |
---|---|---|---|---|---|
External Size (WxDxH)(mm) | 1050x710x1850 | 1320x710x1850 | 1625x710x1850 | 1930x710x1850 | |
Internal Size (WxDxH)(mm) | 950x615x625 | 1220x615x625 | 1525x615x625 | 1830x615x625 | |
Work Surface Height | 750mm | ||||
Control System | Display | Microprocessor controller with LCD display, display the operating status of each function | |||
Interlock | Front sliding sash interlock with fan and UV lamp | ||||
Life Indicator | HEPA filter and UV life indicators facilitate a timely replacement plan | ||||
Airflow System | Airflow Velocity | 0.2~0.5 m/s, speed adjustable | |||
Air filtration System | Pre-Filter | 1pcs, Polyester fiber,washable | |||
HEPA Filter | 1 pcs, Efficiency: > 99.995% at particle size of 0.3μm | ||||
Cleanliness Grade | ISO Class 5 (formerly Class 100) | ||||

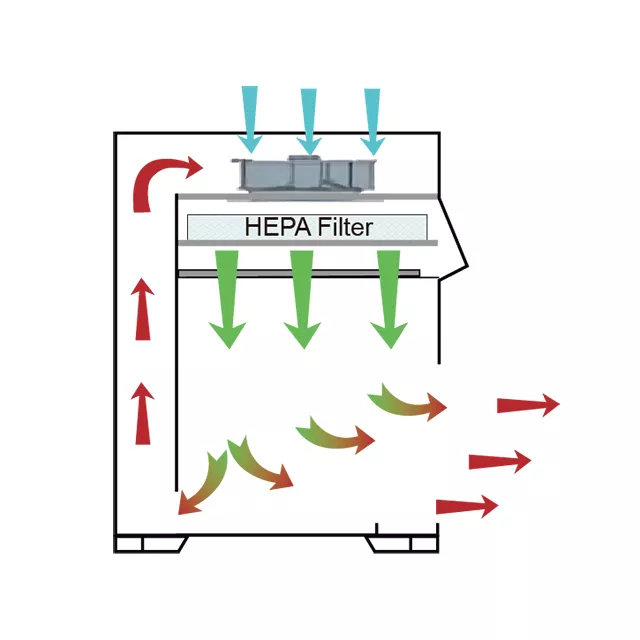

Partial air circulation | Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone. | ||||
Cabinet Construction | Main Body | Electro-Galvanized steel with antimicrobial powder coating | |||
Work Surface | 304 Stainless steel | ||||
Front Window | Manual sliding sash: 5 mm UV resistant tempered glass | ||||
Side window | 5 mm UV resistant tempered glass | ||||
Electrical System | UV Lamp | 20W×1 | 30W×1 | 30W×1 | 20W×2 |
With timing function from 0 to 999 minutes, Interlock with front sliding sash. | |||||
Emission of 253.7 nanometers for best sterilization effect. | |||||
LED Lamp | 8W×2 | 12W×2 | 12W×2 | 12W×2 | |
Consumption | 155W | 285W | 285W | 300W | |
Not include socket loading power consumption | |||||
Power Supply | AC220V±10%, 50/60HZ; 110V±10%, 60Hz | ||||
Illumination | ≥900 Lux | ||||
Sound Emission | ≤62dB(A) | ||||
Standard Accessory | 1.Base Stand; 2.LED Lamp; 3.UV Lamp; 4.Waterproof Socket×2 | ||||
Optional Accessory | Gas Tap | ||||
Gross Weight (kg) | 225 | 255 | 285 | 330 | |
Shipping Size (W×D×H)(mm) | 1190x990x1325 | 1460x990x1325 | 1765x990x1325 | 2070x990x1325 | |
Shipping Volume (m³) | 1.56 | 1.92 | 2.3 | 2.7 |
PCR Cabinet Features:
- Perforations at the back wall of the work zone which are designed to eliminate air turbulence and the possibility of dead air corners in the work zone.
- Variable digital timer that provides UV light exposure continuously or in user-selected increments of 15,30, 60,120 till 999 minutes to deactivate DNA and RNA contaminants.
- Ergonomic Control Panel Location, centered and angled down for an easy reach & viewing.
- The non-direct light source design can effectively relieve the operator's visual fatigue under the condition of ensuring the illumination.
- Brushed stainless steel work surface is for easy cleaning
Safety Performance:
- Front sliding sash interlock with fan and UV lamp.
- Front sash and side windows are made of UV-resistant tempered glass.
- The host and sockets have independent capacitors to prevent current overload.
Humanized design:
- Standard shelves with IV bar.
- Memory function in case of power-failure.
- HEPA filter and UV life indicators facilitate a timely replacem ent plan.
- Easy-to-change pre-filter installed could extend the HEPA filter’s lifetime.
- Equipped with temperature sensor to show the real temperature during operation.
- Waterproof socket provide convenience for small instruments to be used in the operating area.
