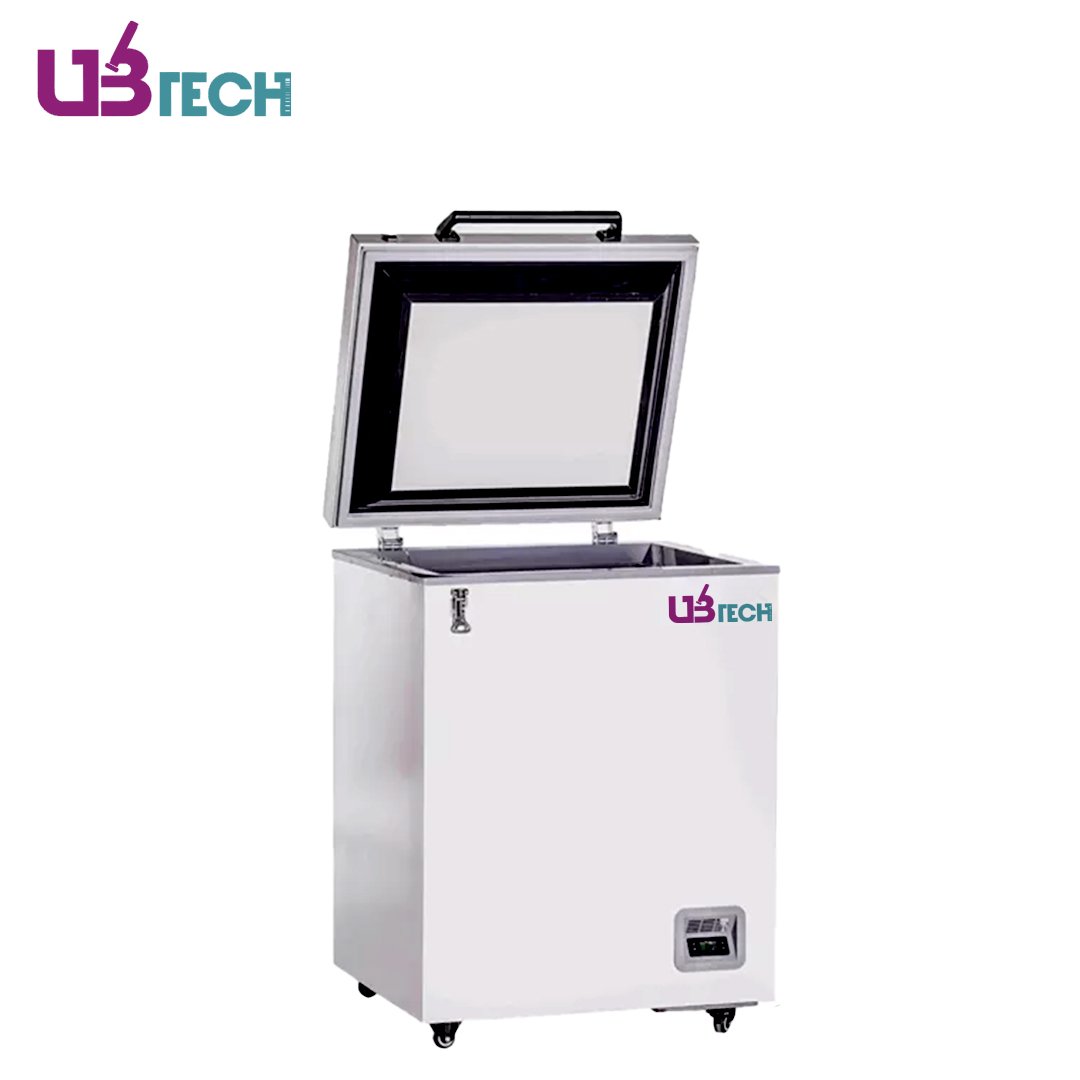

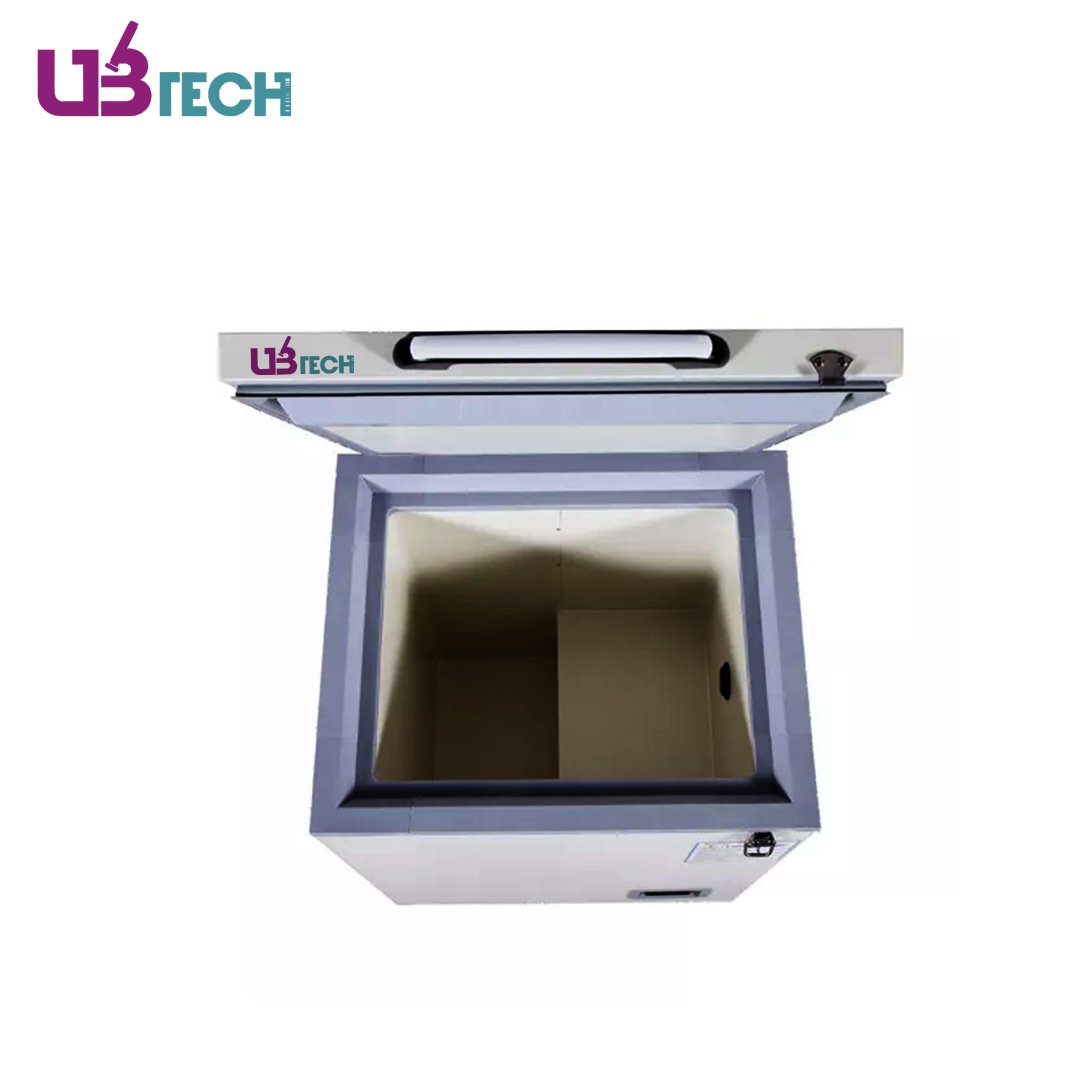

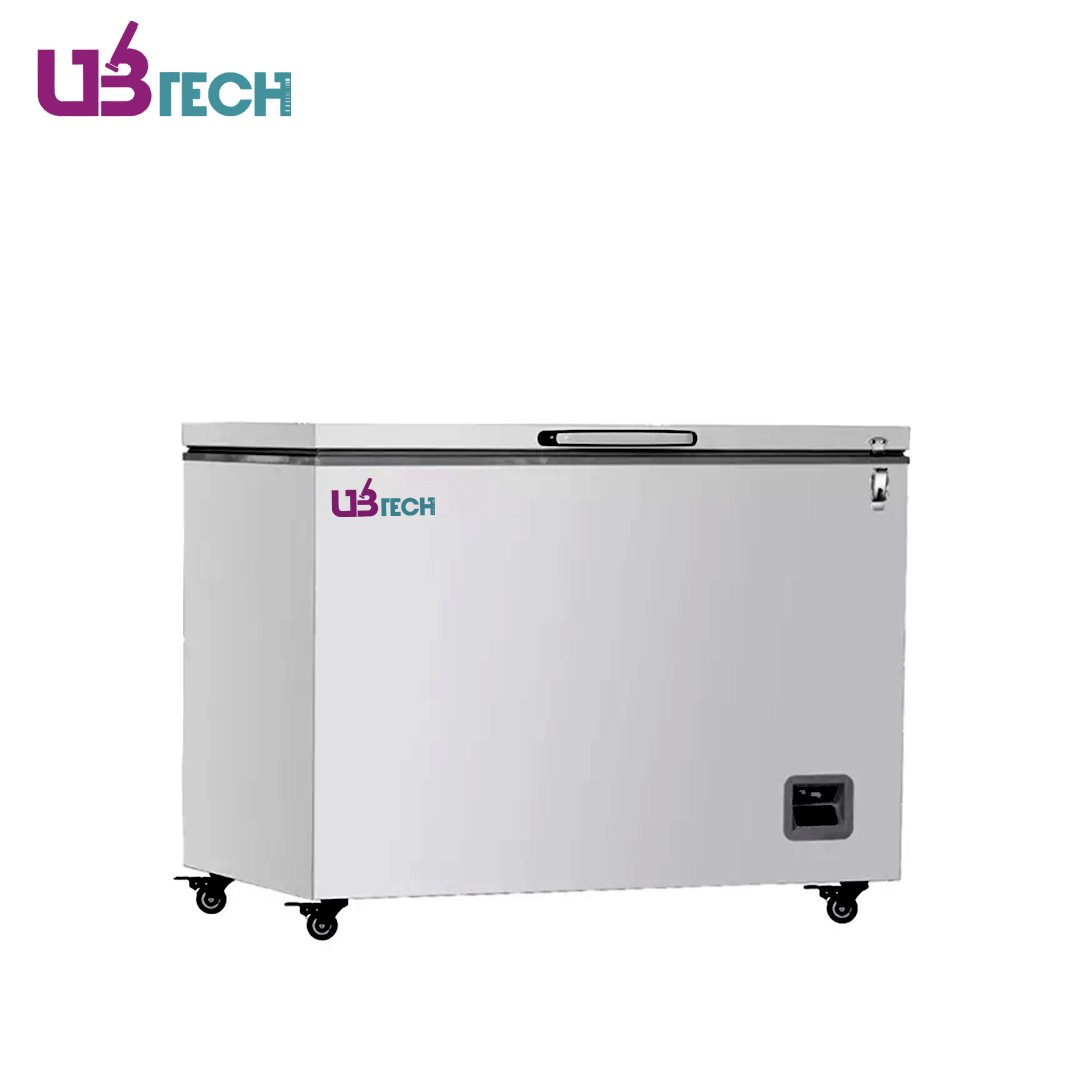

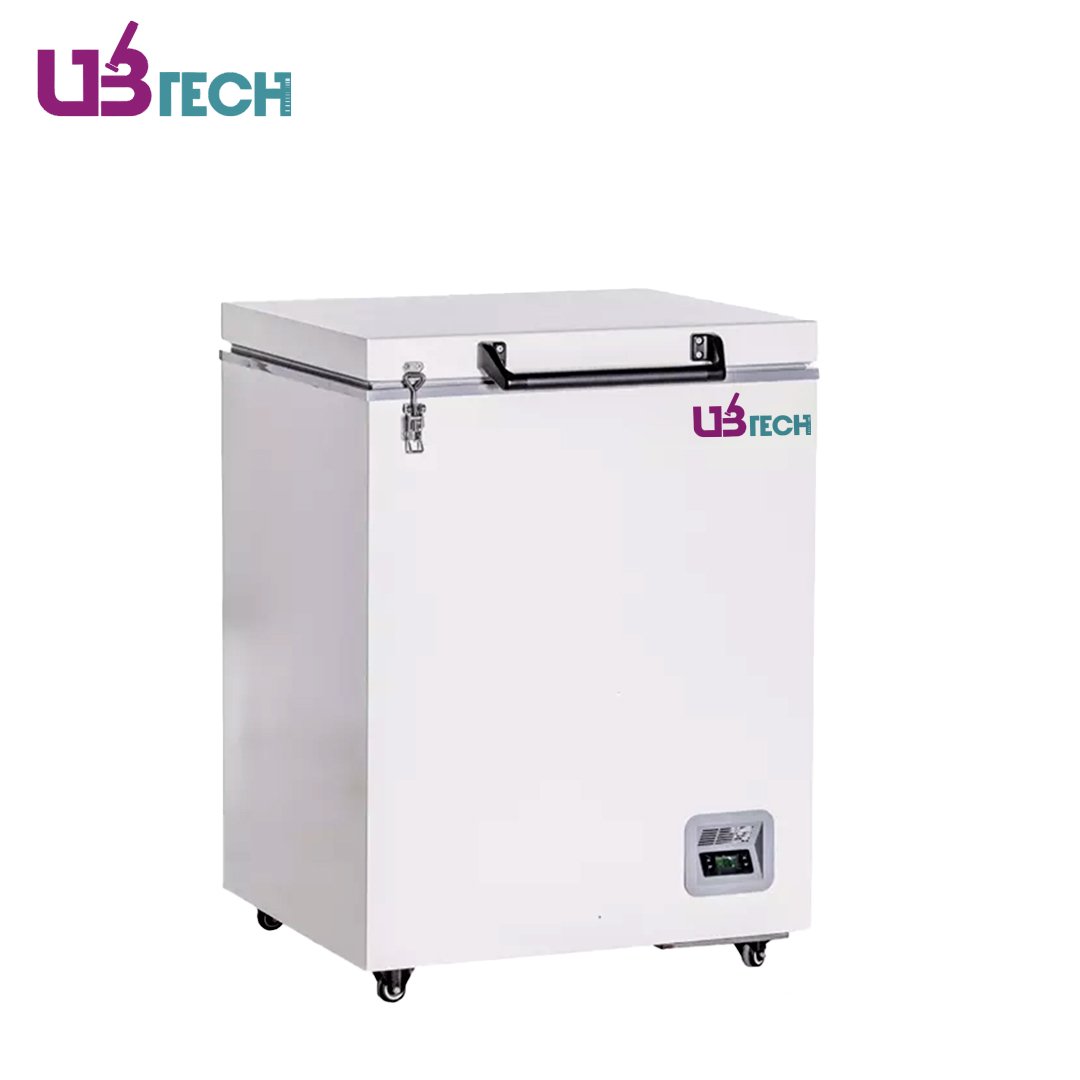

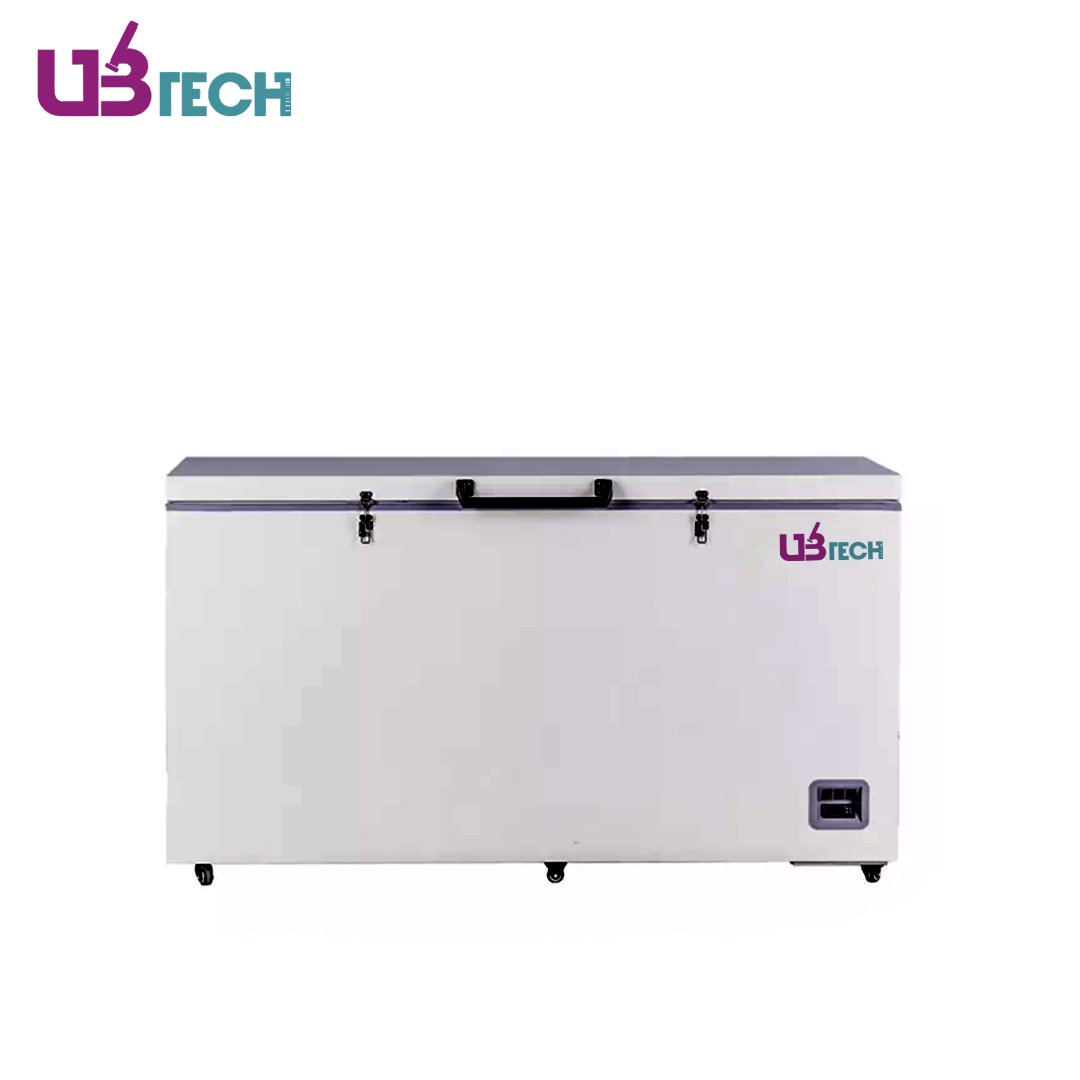

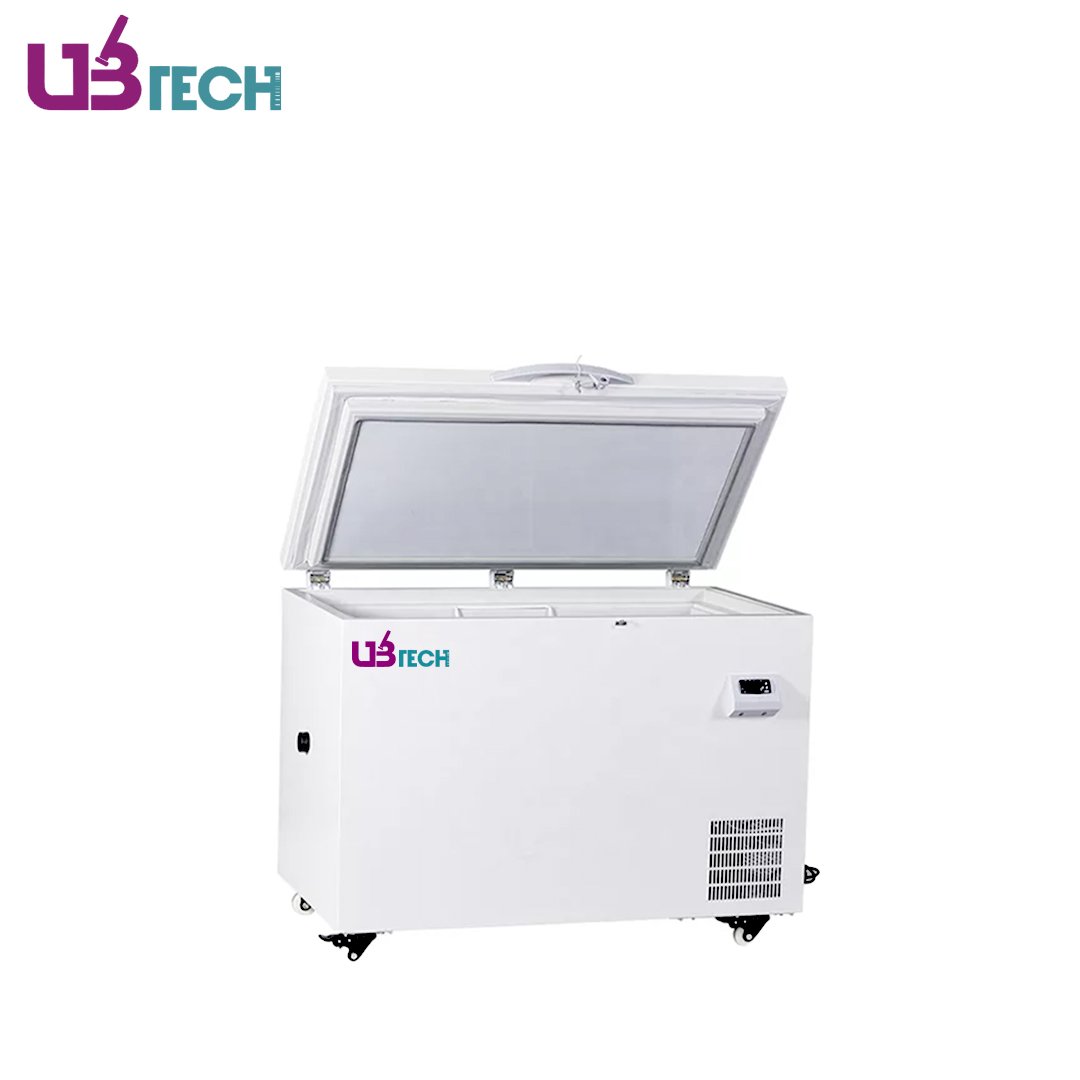

-40°C Chest Freezer
-40°C Chest Freezer Specifications:
Model | UFZ-40H110 | UFZ-40H310 | UFZ-40H490 | |
---|---|---|---|---|
Capacity (L) | 105 | 305 | 485 | |
Size (WxDxH)(mm) | Internal | 480x380x665 | 1000x520x665 | 1455x525x665 |
External | 694x686x942 | 1218x840x940 | 1667x863x949 | |
Temperature | Range (℃) at RT.10~32℃ | -10~-40 | -20~-40 | -20~40 |
Sensor | NTC | NTC | NTC | |
Controller | Microprocessor | Microprocessor | Microprocessor | |
Cooling Stystem | Refrigerant | R290 (CFC Free) | R290 (CFC Free) | R290 (CFC Free) |
Defrost | Manual | Manual | Manual | |
Compressor (Qty) | CUBIGEL/1 | CUBIGEL/1 | CUBIGEL/1 | |
Display | Digital display | Digital display | Digital display | |
Audible&Visible Alarm | Standard | High/Low temperature, sensor error | ||
High Ambient Temperature | / | / | / | |
Low battery | / | / | / | |
Power Failure Backup System (Alarm) | 12h | 12h | 12h | |
Material | Internal | Stainless steel, grade 304 | Electro-galvanized steel with antimicrobial powder coating | Stainless steel, grade 304 |
External | Electro-galvanized steel with antimicrobial powder coating | |||
Accessories | USB Port | / | / | / |
Casters | / | / | / | |
Remote Alarm Port | / | / | / | |
Test hole (Qty / Diameter (mm) | 2/20 | 2/20 | 2/20 | |
Shelves / Drawers (Qty) | / | / | / | |
Sound Emission (dB) | 50 | 50 | 55 | |
Electricity | Voltage /Frequency | AC110/220V±10%, 50/60Hz | ||
Consumption (W) | 160 | 162 | 295 | |
N.W./G.W. (Kg) | 52/64.5 | 80/85 | 108/135 | |
Shipping Size (WxDxH) (mm) | 750x700x1040 | 1295x842x1070 | 1775x880x1060 |
-40°C Chest Freezer Features:
- Clear LED screen and control panel support easy display and operation.
- Lockable universal caster wheels.
- Inner doors or drawer design makes separated storage possible.
- Eco friendly CFC-free refrigerant also save energy.
Reliability
- Audible buzzer and visible flashing temperature alarm system for High/low temperature, power failure, sensor error, door ajar, thermostat failure alarm.
- Safety password protected control panel prevents unauthorized system modification.
- Door lock for storage safety.
Ergonomic Design
- Upright door with limit door hinge prevents collision when door opens.
- Controller password protected to avoid unauthorized system modification.
- Lockable universal caster wheels for easy moving.
