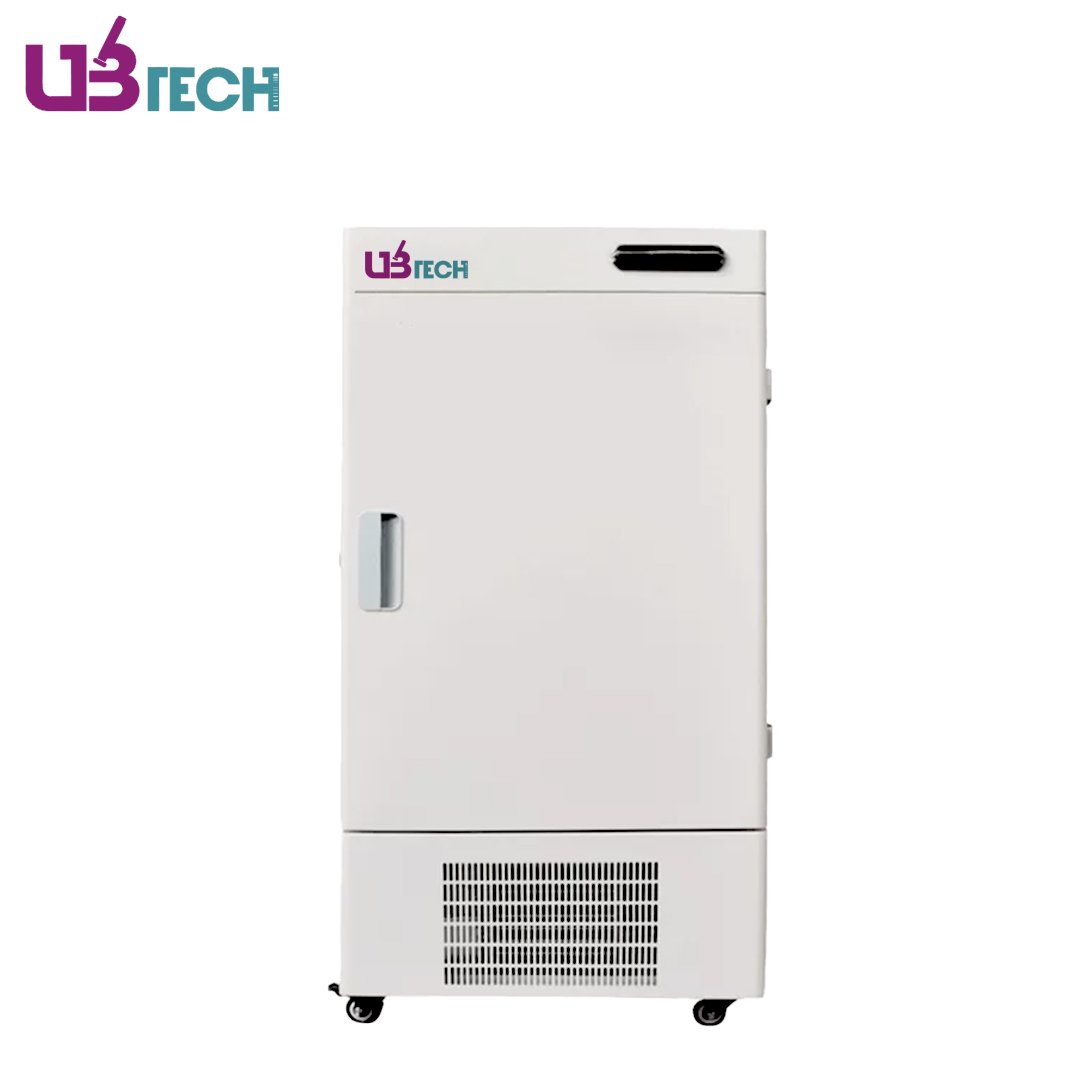

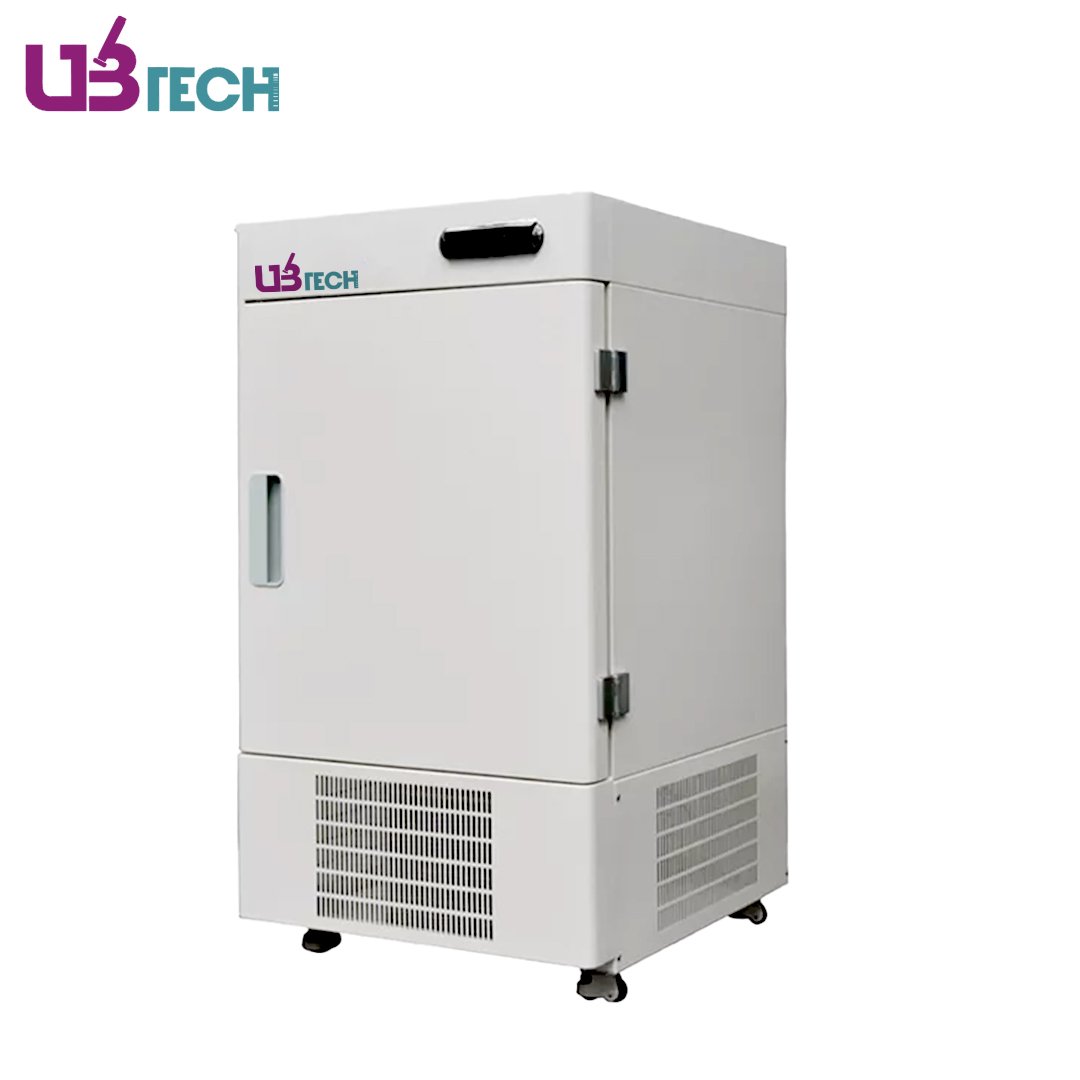

Economical -86℃ Ultra Low Temperature Freezer
Ultra Low Temp Freezer Specifications:
| Model | UUFZ-86V30 | UUFZ-86V110E | UUFZ-86V160E | UUFZ-86V940 | |
|---|---|---|---|---|---|
| Capacity (L) | 28 | 108 | 158 | 938 | |
| Size (WxDxH) | Internal (mm) | 270x265x400 | 460x460x510 | 460x455x800 | 1000x700x1335 |
| External (mm) | 470x490x1120 | 700x730x1260 | 700x700x1580 | 1240x1000x2000 | |
| Temperature | Range (℃) | -40~-86℃, adjustable | -40~-86℃, adjustable | -40~-86℃, adjustable | -40~-86℃, adjustable |
| Sensor | PTC | PTC | PTC | PTC | |
| Controller | Microprocessor | Microprocessor | Microprocessor | Microprocessor | |
| Cooling System | Refrigerant | Mixed with CFC free | Mixed with CFC free | Mixed with CFC free | Mixed with CFC free |
| Defrost | Manual | Manual | Manual | Manual | |
| Compressor (Qty) | SECOP/1 | SECOP/1 | SECOP/1 | SECOP/2 | |
| Display | LED | LED | LED | LED | |
| Audible& Visible Alarm | High/Low Temperature | Standard | Standard | Standard | Standard |
| Abnormal Ring Temperature | Optional (LCD) | Optional (LCD) | Optional (LCD) | Optional (LCD) | |
| Sensor Failure | Standard | Standard | Standard | Standard | |
| Condenser Dirty Blockage | Optional (LCD) | Optional (LCD) | Optional (LCD) | Optional (LCD) | |
| Low Battery | Optional (LCD) | Optional (LCD) | Optional (LCD) | Optional (LCD) | |
| Power Failure | Optional (LCD) | Optional (LCD) | Optional (LCD) | Optional (LCD) | |
| Door Ajar | Optional (LCD) | Optional (LCD) | Optional (LCD) | Optional (LCD) | |
| Material | External | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating | Electro-galvanized steel with antimicrobial powder coating |
| Inner Door | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | |
| Casters | Standard | Standard | Standard | Standard | |
| Temperature Recorder | Optional | Optional | Optional | Optional | |
| Test Hole (Qty) / Diameter (mm) | 1/18 | 1/18 | 1/18 | 1/18 | |
| Shelves / Drawers (Qty) | Shelves / 1 | Shelves / 2 | Shelves / 2 | Shelves / 3 | |
| Sound Emission (dB) | 60 | 60 | 60 | 60 | |
| Electricity | Voltage / Frequency | 220V, 50/60Hz; 110V, 60Hz | 220V, 50/60Hz; 110V, 60Hz | 220V, 50/60Hz; 110V, 60Hz | 220V, 50/60Hz; 110V, 60Hz |
| Consumption (W) | 400 | 480 | 500 | 1020 | |
| N.W. / G.W. (kg) | 66/91 | 107/137 | 123/153 | 320/350 | |
| Shipping Size (WxDxH) (mm) | 550x590x1270 | 780x830x1410 | 780x800x1730 | 1320x1100x2150 | |
Ultra Low Temp Freezer Features:
- High-performance V.I.P. (Vacuum Insulation Panel) insulation panels are used to minimize cabinet heat gain and improve temperature stability.
- Efficient cooling system operates the mixed refrigeration system for rapid and stable cooling, while being energy-saving and easy to maintain.

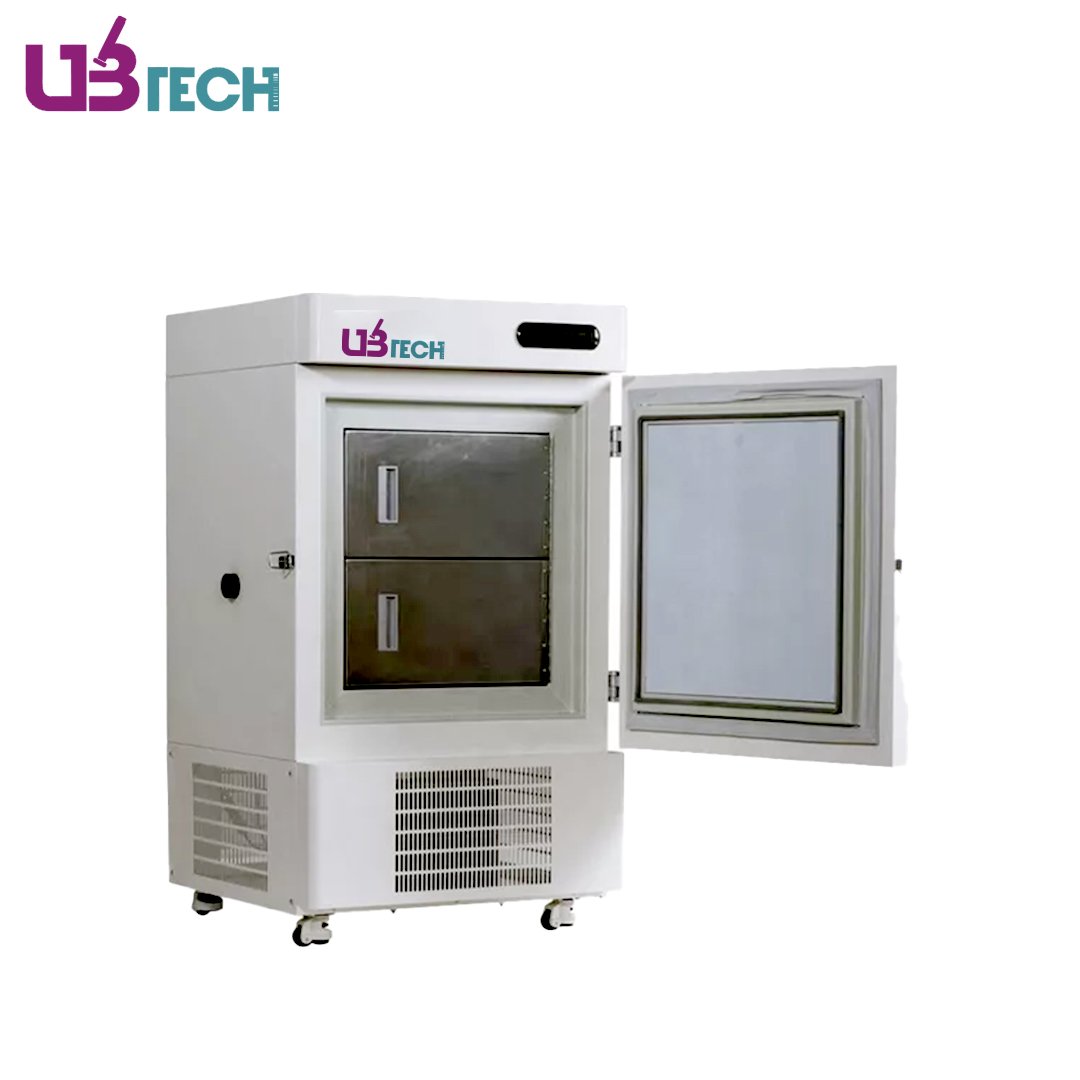

- The inner door has a unique design that separates storage compartments and minimizes frost buildup inside the chamber.
- Upright door with limit door hinge prevents collision when door opens.
- Lockable universal caster wheels for easy moving. Removable inner door for user to defrost and clean.
Reliability
- Safety password protected control panel prevents unauthorized system modification.
- Audible buzzer and visible flashing temperature alarm system for high/low temperature, sensor error, thermostat failure alarm, power failure alarm, door switch, ambient temperature alarm, condenser failure alarm, filter check alarm, voltage abnormal alarm, low battery alarm.
- Door lock for storage safety
Ergonomic Design
- Upright door with limit door hinge prevents collision when door opens.
- Controller password protected to avoid unauthorized system modification.
- Lockable universal caster wheels for easy moving.
- Removable inner door for user to defrost and clean.
