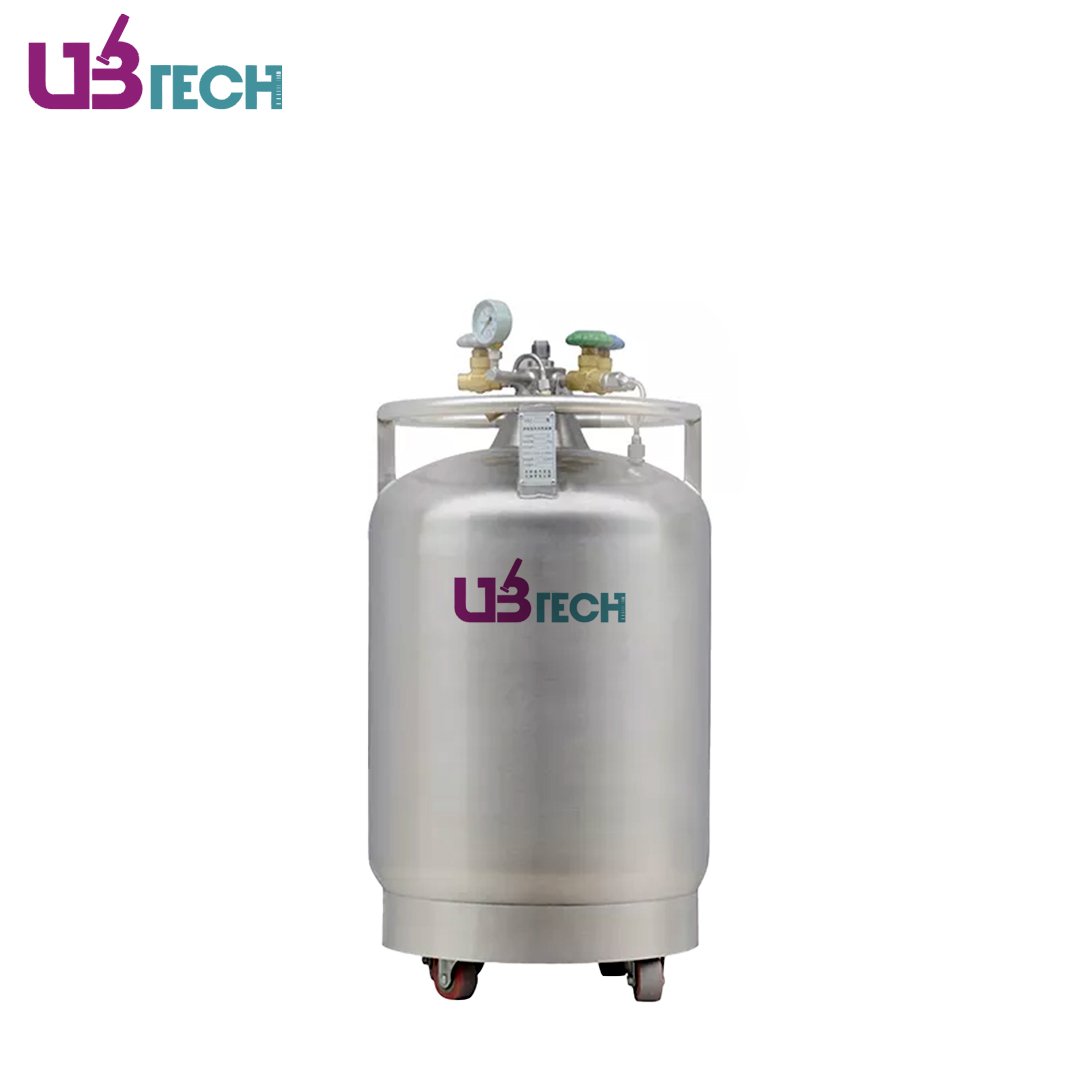

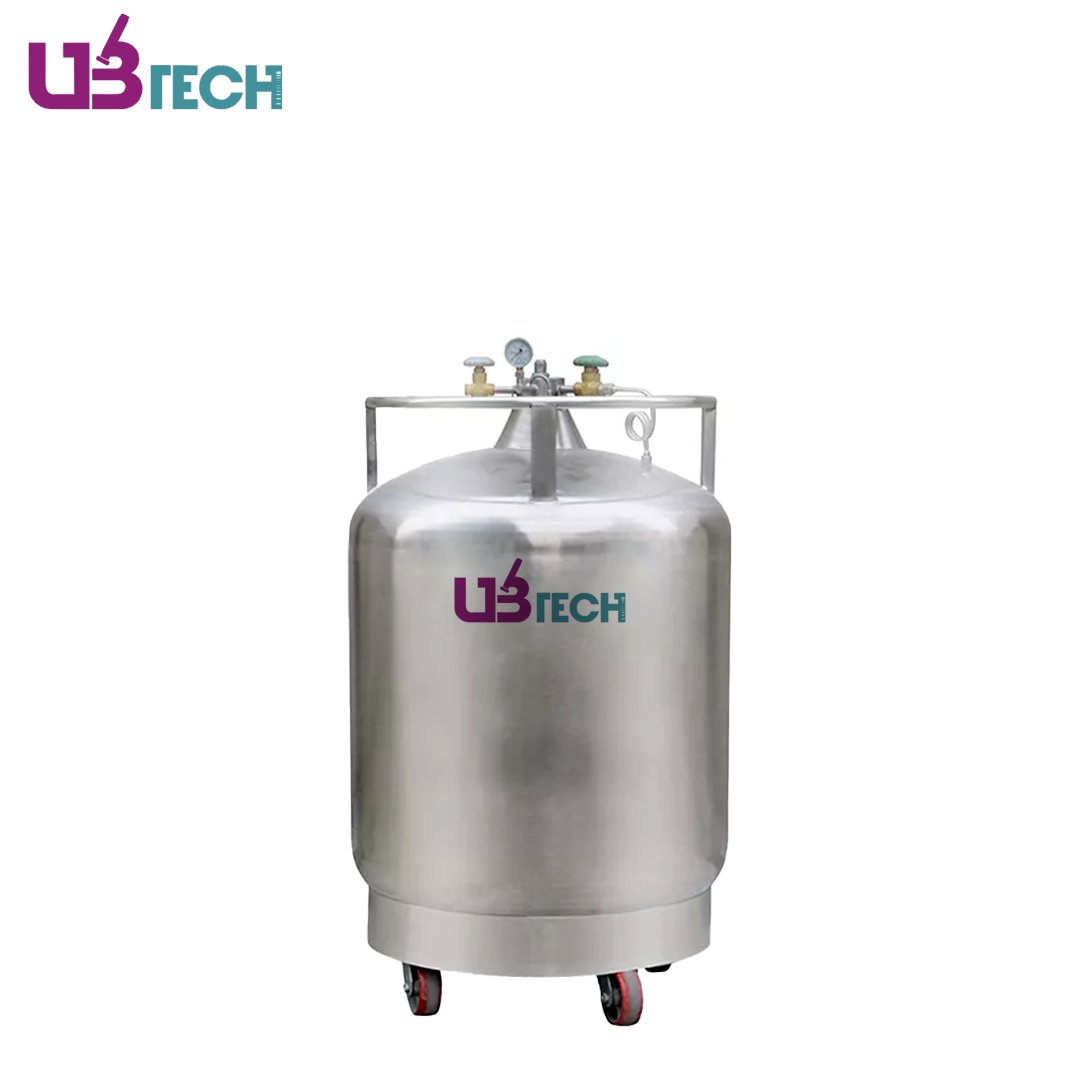

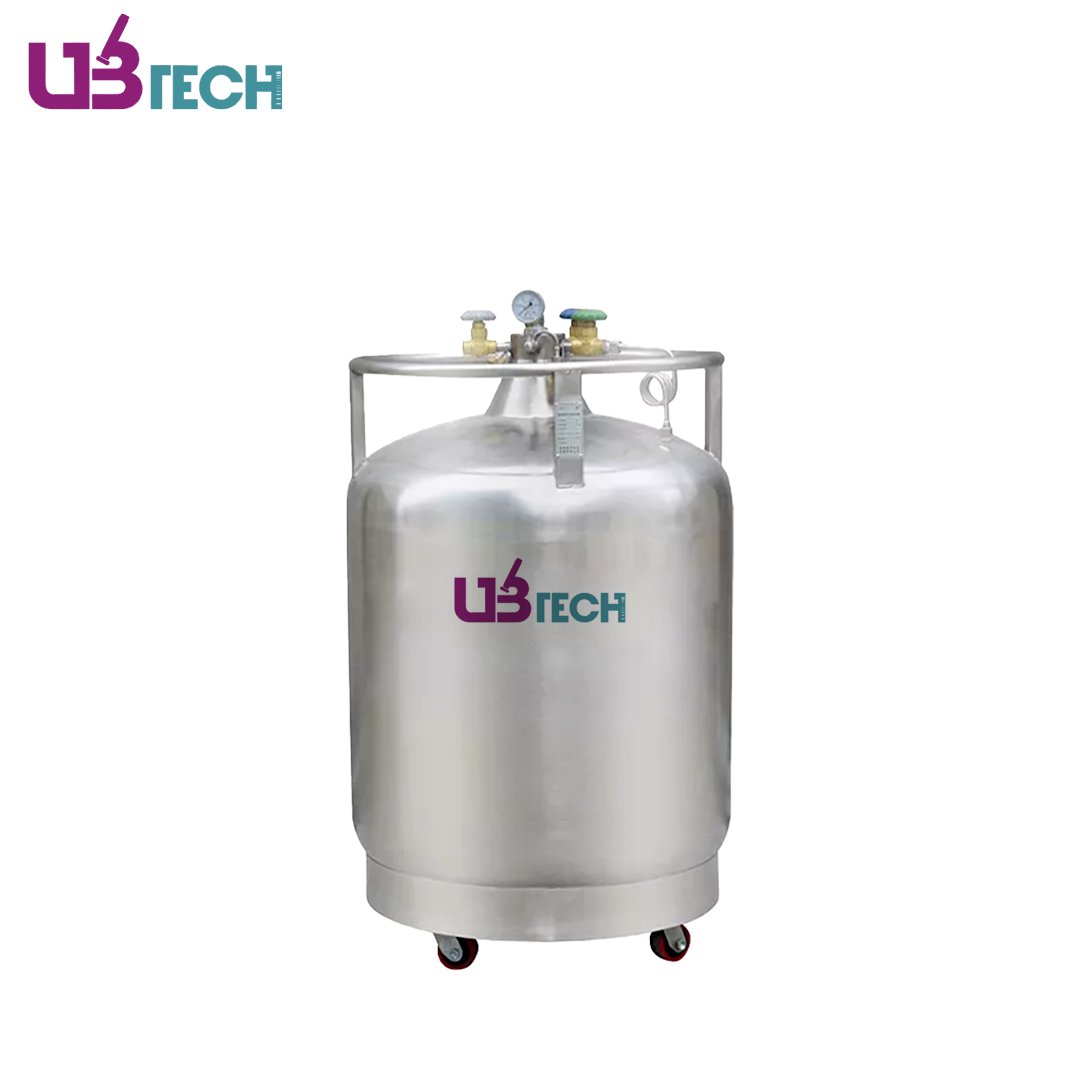

Liquid Nitrogen Filling Tank
Filling Liquid Nitrogen Tank Specifications:
| Model | ULNC-5-40 | ULNC-15-40 | ULNC-30-40 | ULNC-50-40 |
|---|---|---|---|---|
| Performance | ||||
| LN₂ Capacity (L) | 5 | 15 | 30 | 50 |
| Neck Opening (mm) | 40 | 40 | 40 | 40 |
| Daily Evaporation Rate Of Static Liquid Nitrogen (%) | 3 | 2.5 | 2.5 | 2 |
| Transfusion Volume (L/min) | / | / | / | / |
| Maximum Storage Capacity | ||||
| Overall Height (mm) | 510 | 750 | 879 | 991 |
| Outer Diameter (mm) | 329 | 404 | 454 | 506 |
| Weight Empty (kg) | 15 | 23 | 32 | 54 |
| Standard Working Pressure (mPa) | 0.05 | |||
| Maximum Working Pressure (mPa) | 0.09 | |||
| Setting Pressure of the First Safety Valve (mPa) | 0.099 | |||
| Setting Pressure of the Second Safety Valve (mPa) | 0.15 | |||
| Pressure Gauge Indication Range (mPa) | 0~0.25 | |||
| Gross Weight (kg) | 25.88 | 31.86 | 44.81 | 60.74 |
| Shipping Size(WxDxH)(mm) | 390x390x785 | 490x490x935 | 500x500x1080 | 605x605x1250 |
| Model | ULNC-100-40 | ULNC-150-40 | ULNC-200-40 | ULNC-240-40 | ULNC-300-40 | ULNC-500-40 |
|---|---|---|---|---|---|---|
| Performance | ||||||
| LN₂ Capacity (L) | 100 | 150 | 200 | 240 | 300 | 500 |
| Neck Opening (mm) | 40 | 40 | 40 | 40 | 40 | 40 |
| Daily Evaporation Rate of Static Liquid Nitrogen (%) | 1.3 | 1.3 | 1.2 | 1.2 | 1.1 | 1.1 |
| Transfusion Volume (L/min) | / | / | / | / | / | / |
| Maximum Storage Capacity | ||||||
| Overall Height (mm) | 1185 | 1188 | 1265 | 1350 | 1459 | 1576 |
| Outer Diameter (mm) | 606 | 706 | 758 | 758 | 857 | 1008 |
| Weight Empty (kg) | 75 | 102 | 130 | 148 | 202 | 255 |
| Standard Working Pressure (mPa) | 0.05 | |||||
| Maximum Working Pressure (mPa) | 0.09 | |||||
| Setting Pressure of the First Safety Valve (mPa) | 0.099 | |||||
| Setting Pressure of the Second Safety Valve (mPa) | 0.15 | |||||
| Pressure Gauge Indication Range (mPa) | 0~0.25 | |||||
| Gross Weight (kg) | 95.43 | 129 | 161.43 | 174 | 229.5 | 321 |
| Shipping Size(WxDxH) (mm) | 710x710x1410 | 810x810x1400 | 860x860x1450 | 860x860x1530 | 960x960x1640 | 1120x1120x1770 |
Liquid Nitrogen Tank Features:
- Unique neck design, low evaporation loss rate.
- With rollers for easy to move.
- Level display is optional.
- Regulator is optional for stable pressure.
- Solenoid valve is optional.
